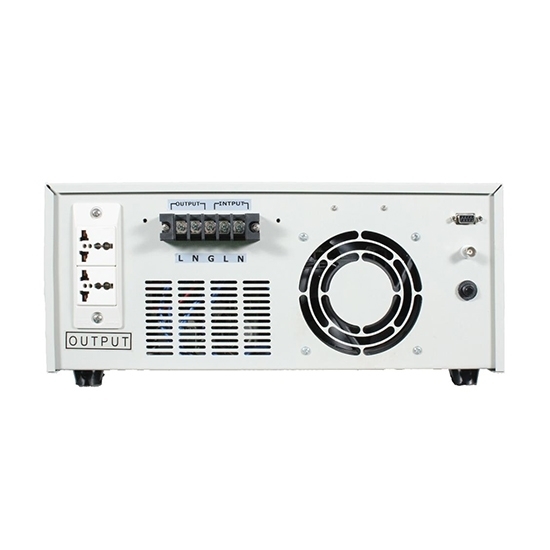

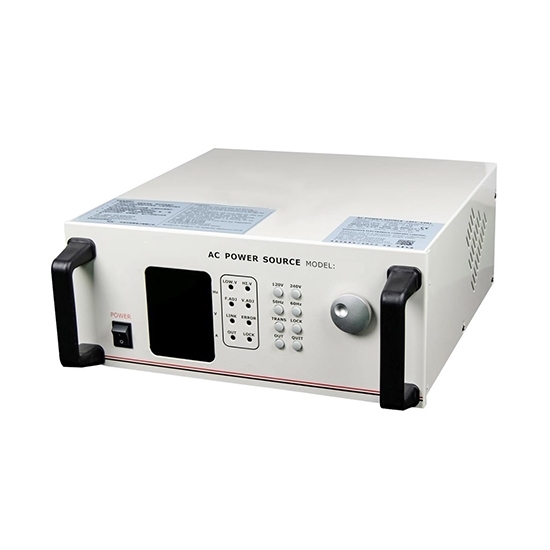

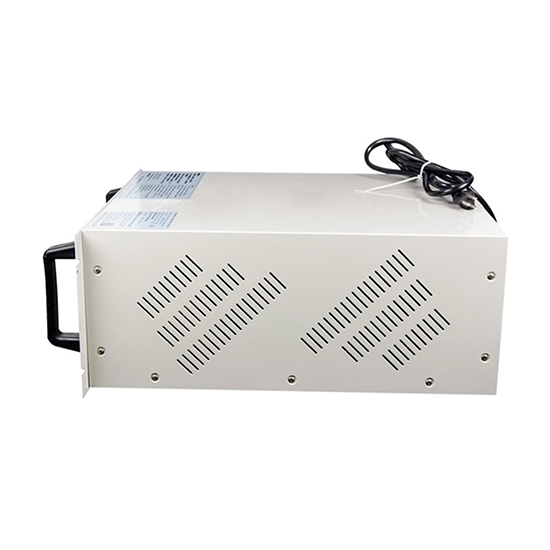

3kVA 400Hz To 50Hz/60Hz Frequency Converter

3kVA 400Hz To 50Hz/60Hz Frequency Converter
3kVA 400Hz To 50Hz/60Hz Frequency Converter
3kVA 400Hz To 50Hz/60Hz Frequency Converter
3kVA 400Hz To 50Hz/60Hz Frequency Converter
3kVA 400Hz To 50Hz/60Hz Frequency Converter
3kVA 400Hz To 50Hz/60Hz Frequency Converter
3kVA 400Hz To 50Hz/60Hz Frequency Converter
0 reviews • Write a review
from Save -5%
$2,977.78
$3,143.55
Ex Tax: $2,977.78
  • Stock: In Stock
  • Model: HZTOHZ-G93
  • Weight: 1.00
  • SKU: HZTOHZ-G93

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1 KVA Frequency Converter 60Hz To 50Hz
Quickview
1 KVA Frequency Converter 60Hz To 50Hz
$1,549.97 $1,799.00
Ex Tax:$1,549.97
Add to Cart Add to Wish List Compare this Product
10 KVA Pure Sine Wave Frequency Converter
Quickview
10 KVA Pure Sine Wave Frequency Converter
$4,676.54 $4,999.00
Ex Tax:$4,676.54
Add to Cart Add to Wish List Compare this Product
10 KVA Three Phase 220V/380V Frequency Converter
Quickview
10 KVA Three Phase 220V/380V Frequency Converter
$5,990.77 $6,499.00
Ex Tax:$5,990.77
Add to Cart Add to Wish List Compare this Product
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
Quickview
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
$27,492.00 $29,890.00
Ex Tax:$27,492.00
Add to Cart Add to Wish List Compare this Product
10kVA 400Hz To 50Hz/60Hz Frequency Converter
Quickview
10kVA 400Hz To 50Hz/60Hz Frequency Converter
$7,166.67 $7,325.82
Ex Tax:$7,166.67
Add to Cart Add to Wish List Compare this Product
15 KVA 60Hz To 50Hz Frequency Converter
Quickview
15 KVA 60Hz To 50Hz Frequency Converter
$5,615.54 $5,990.00
Ex Tax:$5,615.54
Add to Cart Add to Wish List Compare this Product
15 KVA Three Phase Frequency Converter
Quickview
15 KVA Three Phase Frequency Converter
$7,189.58 $7,999.00
Ex Tax:$7,189.58
Add to Cart Add to Wish List Compare this Product

3kVA 400Hz frequency converter is a AC power source with single phase 115V input, 0-300V 50Hz/60Hz ouput. It adopts model IGBT/SPWM switch mode technology, safer and more reliable.

Specification

ModelHZ-AFC-1103
Input Specifications
PhaseSingle phase
Voltage115V±10% (Please contact us for other input voltage)
Frequency400Hz±5%
Output Specifications
Capacity3kVA
Phase (Optional)*Single phase (L, N, G)
Spilt phase (L1, L2, N+G; L1+L2=240V, L+N=120V)
Max Current0-150V Range25A
0-300V Range12.5A
VoltageL-N (Line to Neutral)Low Range 0-150V/ High Range 0-300V
Transient Response30ms
Frequency (Optional)*45-65Hz Adjustable, 45~400Hz Variable
Note:
When the output is 400Hz, the load capacity can only reach 50% of the rated capacity;
When the output is ≤120Hz, the load capacity can reach 100% of the rated value.
Total Harmonic Distortion (THD)≤1% (Resistive Load, Full load 2%)
Voltage Regulation≤1%
Load Regulation≤1% (Resistive Load)
Frequency Regulation≤0.01%
Efficiency≥85% ( At full load)
ProtectionOver current, Short circuit, Over temperature, Over load, Phase deficient, Low-voltage protection.
Overload Capacity100%110%130%Output>150%, power supply will be cut off immediately.
MeasurementCurrent (RMS)Resolution: 1mA/10mA or 10mA/100mA
Accuracy: 0.3%F.S.±3; Counts±0.1%/100Hz
Voltage (RMS)Resolution: 0.1V
Accuracy: 0.3% F.S.±2; Counts±0.1%/100Hz
FrequencyResolution: 0.01Hz/0.1Hz
Accuracy: 0.3% F.S.±2; Counts±0.05%/100Hz
Working Environment
Operating Temperature0 - 40°C/ 32 - 104°F
Relative Humidity10-90%,（Non-condensing)
Functions
4 Digits LED DisplayVoltage, Current, Frequency
InterfaceRS232 (Optional: RS485, GPIB, just contact us)
Memory FunctionWith power-off memory function, remember the last output parameters automatically.
Sync Output SignalSupport
Mechanical Specifications
Dimensions (W x H x D)430 x 192 x 510mm
Weights50kg


Tips: Why can't VFD be used as a frequency converter?
There are essential differences between frequency converter and VFD. Due to the different power grid indicators in the world, electrical manufacturers need power supply to simulate the power grid conditions of different countries, and then provide appropriate voltage conversion. Frequency converter provides pure, stable, low harmonic distortion high frequency sinusoidal power output when engineers are working in design, development, product life testing, and over high/low voltage simulation testing applications. However, when VFD is used in the laboratory, there are some problems, such as the increase of vibration, electromagnetic noise, temperature rise, the test instrument cannot work and so on, which brings great difficulties to the test industry. Therefore, the frequency converter which can provide pure sine wave output has become an indispensable power supply equipment in the laboratory.

The frequency converter is to transform the alternating current in Mains electricity into pure sine wave after AC-DC-AC transformation. The output frequency and voltage can be adjusted within a certain range, which has been widely used. It can completely replace the role of VFD, and can better protect the equipment, can be used as a general power supply. It can output the power grid voltage and frequency of any country, and it can also be applied to loads with various impedance characteristics, including resistive, capacitive, inductive and other nonlinear loads. They are very close to the ideal AC power supply. But we need to pay attention to the different types of load, the power capacity of the frequency converter is not the same.
