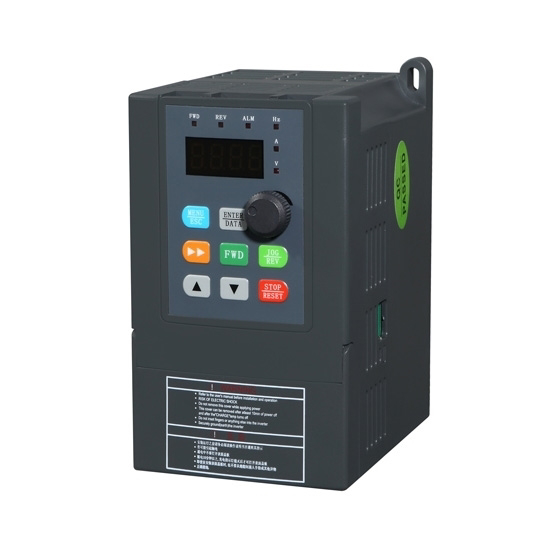

0.75 KW Single Phase To Three Phase Frequency Inverter
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: GK3000-2S0007
- Weight: 1.00
- SKU: GK3000-2S0007
Frequency drive inverter, converting single phase to three phase, RS485 communication code, and IP20 enclosure rating, stable and durable. 0.75kw frequency inverters with cooling fans have good heat dissipation performance.
Feature
- With input voltage 1 phase 220V AC ±15%, 1 phase to 3 phase inverter has an input frequency of 50Hz/ 60Hz.
- Communication RS485, inverter single phase to three phase process high-speed control accuracy ≤±0.5% of rating synchronous speed.
- Automatic voltage regulation (AVR) of variable frequency inverter can keep constant output voltage when power source voltage varies.
- With IP20 protection, the vfd inverter can work at (–10℃, 40℃), good safety performance, durable and high quality
Details

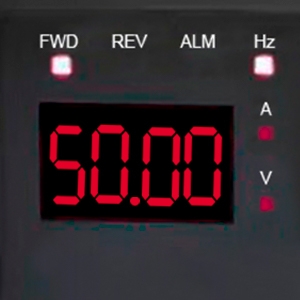

Digital Display
The electronic screen of the variable frequency inverter displays clear fonts. The indicators of the variable frequency drive single phase to 3 phase will display the corresponding inverter operating conditions. It can monitor real-time 0.75kw inverter data changes, and improve safety performance.

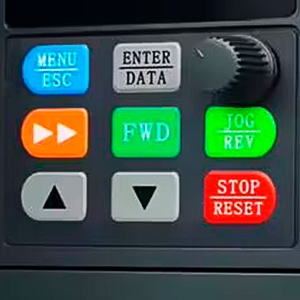

Multi-function Button
Equipped with multi-function keys, inverter has menu/exit, forward, up/down keys, stop/reset, etc. The functional keys of the frequency drive inverters are very convenient for adjusting the operating single phase inverter to three phase parameters and operating status at any time.

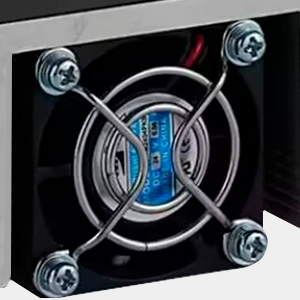

Cooling Fan
The cooling fan installed in the 1 hp inverter from single phase to three phase introduces cooling air into the 0.75kw inverter, reducing the temperature of the components, protecting the devices from damage, and prolonging the inverter's service life.
Applications
Medical Equipment
Solar Power Generation
Electric Vehicle Charging
Office Equipment
| Basics | Model | GK3000-2S0007 |
| Capacity | 0.75 kW (1 hp) | |
| Shipping weight | 2 kg | |
| Dimension | 142*85*113 mm | |
| I/O Feature | Rated current | 4 A |
| Input voltage | 1 phase 220V AC ±15% | |
| Input frequency | 50Hz/ 60Hz | |
| Output voltage | 3 phase AC 0~input voltage | |
| Output frequency | 0Hz~1000Hz | |
| Over load capacity | 150% of rated current for 1 minute, 180% of rated current for 3 seconds | |
| Control Feature | Control mode | V/F, Sensorless vector control (SVC), Speed sensor vector control (FVC) |
| Communication | RS485 | |
| Speed regulation | 1:100 | |
| Start torque | 150% of rating torque at 1 Hz | |
| Speed control accuracy | ≤±0.5% of rating synchronous speed | |
| Frequency precision | Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2% | |
| Frequency resolution | Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz | |
| Torque boost | Automatic torque boost, manual torque boost 0.1%~30.0% | |
| Interior PID controller | Be convenient to make closed-loop system | |
| Automatic energy save running | Optimize V/F curve automatically based on the load to realize power save running | |
| Automatic voltage regulation (AVR) | Can keep constant output voltage when power source voltage varies. | |
| Automatic current limiting | Limit running current automatically to avoid frequent over-current which will cause trip | |
| Environment | Enclosure rating | IP 20 |
| Temperature | –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5% | |
| Humidity | 5%-95%, without condensation | |
| Altitude | ≤1000m; VFD will be derated if above 1000m | |
| Impingement and oscillation | Normal running:<5.9m 2="" (0.6g);=""><15m 2=""> | |
| Store environment | –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight |
