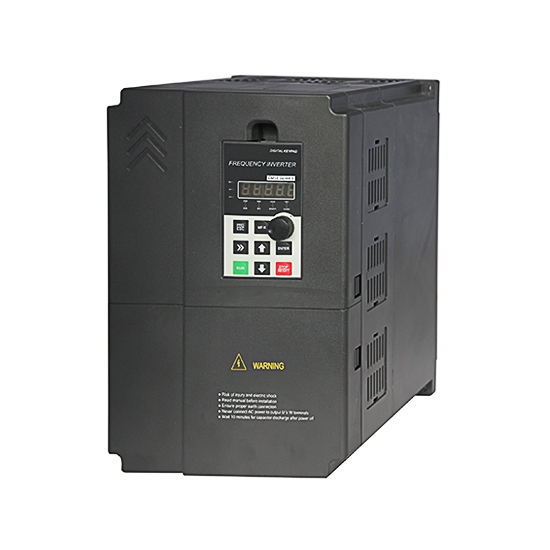

0.75 KW Solar Pump Inverter, DC/AC Input To 1ph AC Output
from
$288.08
Ex Tax: $288.08
- Stock: In Stock
- Model: GK330-SP1S-d75
- Weight: 1.00
- SKU: GK330-SP1S-d75
0.75kW solar water pump inverter, protection grade IP20, output current 3.8A, recommended MPPT range (250V, 400V). Solar pump inverter has output frequency 0~400Hz, and power factor >0.99. The solar inverter with the RS485 communication method is easy to use and can be used in agricultural irrigation, desert greening, etc.
Features
- Solar pump inverter adopts advanced MPPT control technology, real-time detection of solar panels power voltage, tracking the highest voltage and current, efficiency is as high as 98%.
- It can enter automatically into sleep mode when the intensity of sunlight is weak, as well as exit the sleep mode when the intensity of sunlight is becoming strong.
- Automatic sleep when on the high-water level and automatic restart when on the low-water level to realize automatic control through water level.
- Smart operation, water level detection, and operation panel to prevent overflow and dry pumping.
- Protect itself in trouble and improve the reliability of the whole system.
- The bypass- AC source which runs automatically when the sun is not sufficient or absent.
Details

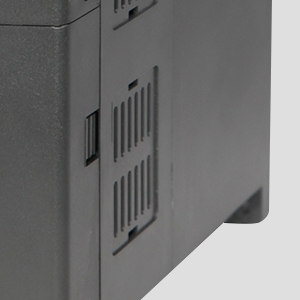

Air Vents
The high-performance 0.75kW solar pump driver features high-density vents for optimal cooling, ensuring stable operation in high-temperature environments. The powerful DC heat sink operates quietly, effectively reduces the heat generated during inverter use, and features intelligent start-stop control. The independent air duct design forms a sealed space, adeptly preventing dust, and moisture from entering the circuit board area.

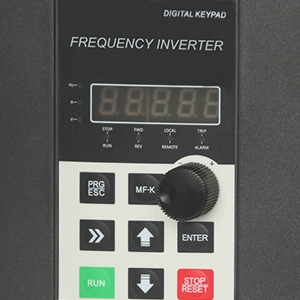

Digital Keypad
The solar pump inverter's clear and easy-to-use numeric keypad allows direct control of start, stop, and acceleration functions. Users can set the inverter's parameters easily and adjust the output frequency to control the pump speed, effortlessly meeting plenty of operating needs. The intuitive design of the 0.75 kW inverter's numeric keypad effectively and easily improves the operating efficiency and convenience of the solar pump system.

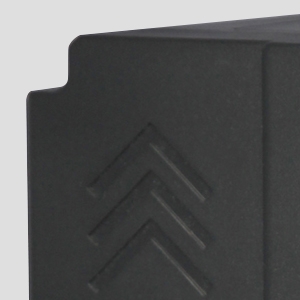

Rugged Casing
The 0.75kW solar water pump inverter has a compact structure and a durable casing that is impact-resistant, flame-retardant, anti-aging, and corrosion-resistant. It has valid insulation, moisture-proof, and dust-proof functions to ensure stable, safe, and reliable operation. The sturdy casing protects the internal circuits and electronic components, ensuring the safety, stability, and reliability of the inverter and effectively extending the product life.
Applications
Agricultural Irrigation
Industrial Applications
Farm Livestock
Pool Water Supply
Solar Pump Inverter Working System
| GK330 | Series inverter (for photovoltaic applications) |
| - | Voltage range: SP1S: DC 250~ 400V to 1-phase AC 220V |
| D75 | Adaptable motor power: D75 (0.75KW) |
| Model | SP1S-d75 |
| Rated power | 0.75 kW |
| Voltage input | DC 250~ 400 (V), AC 200~240 (V) at 1-phase (When the input is AC, the inverter output voltage is equal to the input voltage) |
| Min. DC voltage | 120V |
| Max. DC voltage | 480V |
| Recommended MPPT range | 250~400(V) |
| AC output current | 3.8A at 1-phase 220V |
| Output frequency | 0~50/60 (Hz) |
| Power factor | >0.99 |
| Communication mode | RS485 communication |
| Protection class | IP20 |
| Ambient temperature | -10°C~+40°C (ambient temperature at 40°C~50°C， please keep derated use ) |
| Storage temperature | -20°C~+60°C |
| Humidity | Smaller than 95%RH, non-condensation |
| Cooling | Forced Air cooling |
| Altitude | Lower than 1000m |
| Vibration | Less than 5.9m/s2 (0.6 g) |
