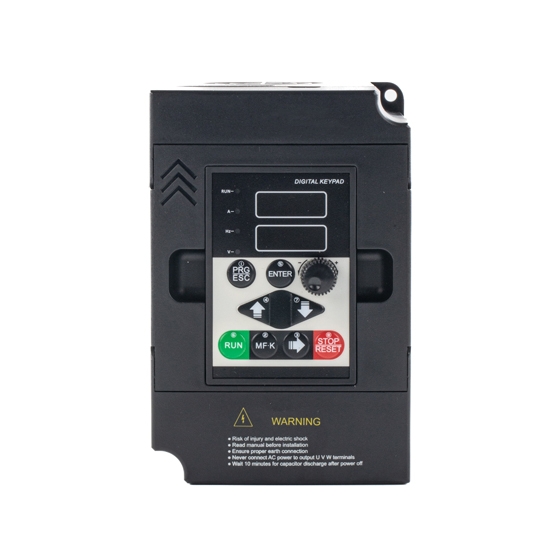

1.5 KW Solar Pump Inverter, DC/AC Input To 1ph AC Output
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
1.5 KW Solar Pump Inverter, DC/AC Input To 1ph AC Output
from
$298.08
Ex Tax: $298.08
- Stock: In Stock
- Model: GK330-SP1S-1d5
- Weight: 1.00
- SKU: GK330-SP1S-1d5
1.5 kW solar pump inverter’s humidity is less than 95%RH, and vibration is less than 5.9m/s². The solar pump inverter with air cooling works at temperature (-10°C, 40°C). Widely used in agriculture drought resistance, seawater desalination, etc.
Features
- Solar pump inverter adopts advanced MPPT control technology, real-time detection of solar panels power voltage, tracking the highest voltage and current, efficiency is as high as 98%.
- It can enter automatically into sleep mode when the intensity of sunlight is weak, as well as exit the sleep mode when the intensity of sunlight is becoming strong.
- Automatic sleep when on the high-water level and automatic restart when on the low-water level to realize automatic control through the water level.
- Smart operation, water level detection, and operation panel to prevent overflow and dry pumping.
- Protect itself in trouble and improve the reliability of the whole system.
- The bypass- AC source which runs automatically when the sun is not sufficient or absent.
Details

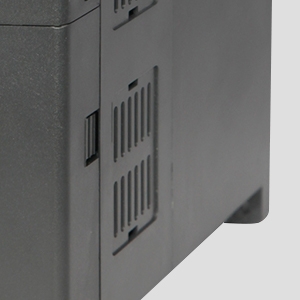

Air Vents
The well-performed 1.5kW solar water pumping inverter has high-density ventilation ports for excellent cooling, ensuring stable operation in high-temperature environments. The powerful DC heat sink operates quietly, adeptly reducing the heat generated during inverter use, with smart start-stop control. The independent air duct design forms a sealed space, effectively preventing dust and moisture from entering the circuit board area.

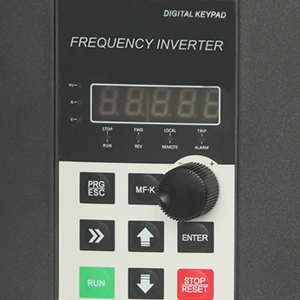

Digital Keypad
The digital keypad of the 1.5kW PV pump inverter is clear and easy to use, directly controlling the start, stop, and acceleration functions. Users can easily set the inverter's parameters and adjust the output frequency to control the pump speed, meeting various operational needs effortlessly. The intuitive design of the digital keypad enhances the efficiency and convenience of the solar pump system's operation.

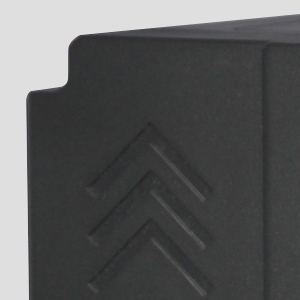

Rugged Casing
The solar pump inverter features a compact structure and a rugged casing that is impact-resistant, flame-retardant, aging-resistant, and corrosion-resistant. The 1.5kW pump inverter is expertly insulated, dust-proof, and moisture-proof, ensuring all users' stable, safe, and reliable operation. The robust casing protects internal circuits and electronic components, ensuring the inverter's safety, stability, and reliability, effectively extending the product life.
Applications
Agricultural Irrigation
Industrial Applications
Farm Livestock
Pool Water Supply

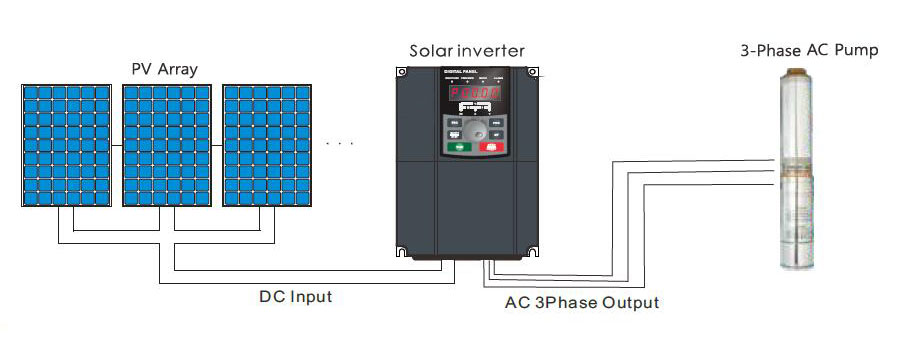

Solar Pump Inverter Working System
| GK330 | Series inverter (for photovoltaic applications) |
| - | Voltage range: SP1S: DC 250~ 400V to 1-phase AC 220V |
| 1D5 | Adaptable motor power: 1D5 (1.5KW) |
| Model | SP1S-1d5 |
| Rated power | 1.5 kW |
| Voltage input | DC 250~400 (V), AC 200~240 (V) at 1-phase (When the input is AC, the inverter output voltage is equal to the input voltage) |
| Min. DC voltage | 120V |
| Max. DC voltage | 480V |
| Recommended MPPT range | 250~400(V) |
| AC output current | 5.1A at 1-phase 220V |
| Output frequency | 0~50/60 (Hz) |
| Power factor | >0.99 |
| Communication mode | RS485 communication |
| Protection class | IP20 |
| Ambient temperature | -10°C~+40°C (ambient temperature at 40°C~ 50°C， please keep derated use ) |
| Storage temperature | -20°C~+60°C |
| Cooling | Forced Air cooling |
| Altitude | Lower than 1000m |
| Humidity | Less than 95%RH, without condensing |
| Vibration | Less than 5.9m/s2 (0.6 g) |
