30 KVA 1 Phase 50/60Hz Frequency Converter

30 KVA 1 Phase 50/60Hz Frequency Converter
30 KVA 1 Phase 50/60Hz Frequency Converter
30 KVA 1 Phase 50/60Hz Frequency Converter
30 KVA 1 Phase 50/60Hz Frequency Converter
Free Shipping
30 KVA 1 Phase 50/60Hz Frequency Converter
30 KVA 1 Phase 50/60Hz Frequency Converter
30 KVA 1 Phase 50/60Hz Frequency Converter
30 KVA 1 Phase 50/60Hz Frequency Converter
30 KVA 1 Phase 50/60Hz Frequency Converter
0 reviews • Write a review
from Save -6%
$8,759.00
$9,299.00
Ex Tax: $8,759.00
  • Stock: In Stock
  • Model: HZTOHZ-G9
  • Weight: 1.00
  • SKU: HZTOHZ-G9

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1 KVA Frequency Converter 60Hz To 50Hz
Quickview
1 KVA Frequency Converter 60Hz To 50Hz
$1,549.97 $1,799.00
Ex Tax:$1,549.97
Add to Cart Add to Wish List Compare this Product
10 KVA Pure Sine Wave Frequency Converter
Quickview
10 KVA Pure Sine Wave Frequency Converter
$4,676.54 $4,999.00
Ex Tax:$4,676.54
Add to Cart Add to Wish List Compare this Product
10 KVA Three Phase 220V/380V Frequency Converter
Quickview
10 KVA Three Phase 220V/380V Frequency Converter
$5,990.77 $6,499.00
Ex Tax:$5,990.77
Add to Cart Add to Wish List Compare this Product
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
Quickview
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
$27,492.00 $29,890.00
Ex Tax:$27,492.00
Add to Cart Add to Wish List Compare this Product
10kVA 400Hz To 50Hz/60Hz Frequency Converter
Quickview
10kVA 400Hz To 50Hz/60Hz Frequency Converter
$7,166.67 $7,325.82
Ex Tax:$7,166.67
Add to Cart Add to Wish List Compare this Product
15 KVA 60Hz To 50Hz Frequency Converter
Quickview
15 KVA 60Hz To 50Hz Frequency Converter
$5,615.54 $5,990.00
Ex Tax:$5,615.54
Add to Cart Add to Wish List Compare this Product

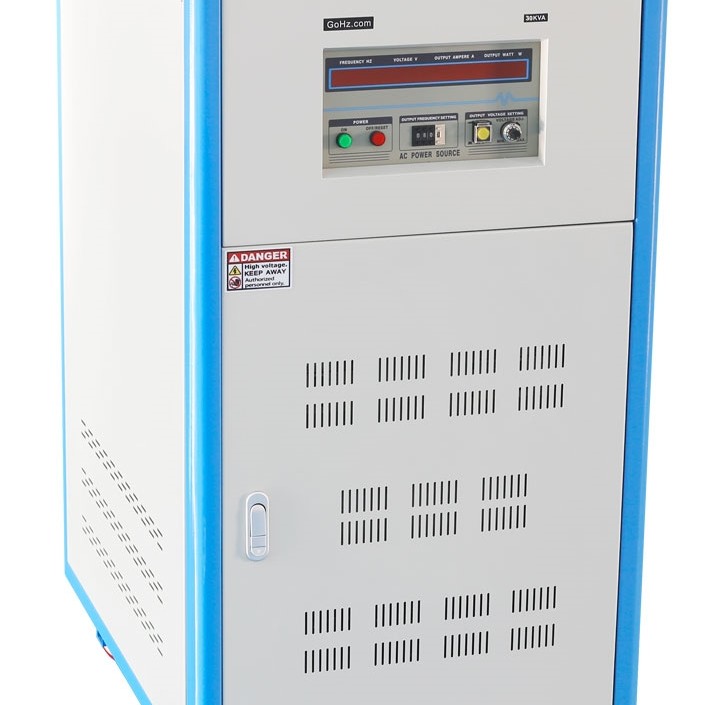

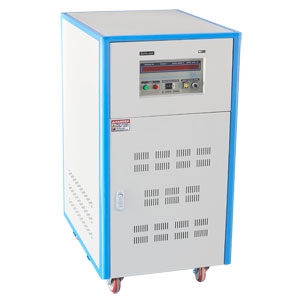

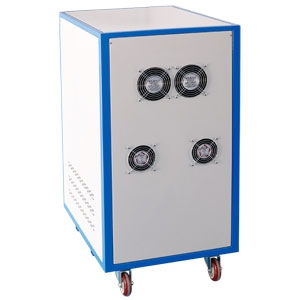

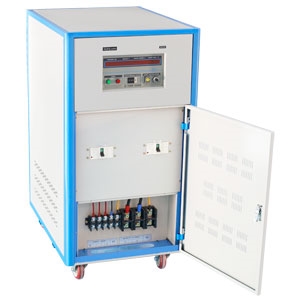

30 kVA single phase pure sine wave AC power frequency converter, make your appliances compatible with international power systems, change single phase 120V 60Hz to 240V 50Hz (vice versa) in one step by inner step up transformer.

Specification

ModelHZ-50-1130
Capacity30kVA
Dimension770*580*1140mm
Weight270 kg
InputVoltage1 Phase 2 Wire: 110V/120V, 220V/230V/240V ± 10% (option *)
Frequency50 Hz, 60 Hz or 400 Hz ± 5%
OutputVoltage, current110V Setting (Low grade): 0-150V, 250A
220V Setting 0-300V (High grade): 0-300V, 125A
Load stabilization Rate≤±1%
Frequency50Hz, 60Hz up to 400Hz adjustable
Note:
-When the output is 400Hz, the load capacity can only reach 50% of the rated capacity.
-When the output is ≤120Hz, the load capacity can reach 100% of the rated value.
-You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
Frequency Stability≤±0.01%
Harmonic DistortionPure Sine Wave ≤2%
Frequency meter4 digit, digital frequency meter, resolution 0.1Hz/Step
Voltmeter4 digit, digital voltage meter, resolution 0.1V
Ammeter4 digit, digital ammeter, resolution 0.1A
Watt meter4 digit, digital Watt meter, resolution 0.1W
ProtectionWith overload, short circuit, over temperature
Instantaneous power failure protection and alarm device
Working EnvironmentTemperature0 - 40 deg.℃
Humidity0 - 90% (Non condensation)
Warranty18 months

* The input voltage is factory selected.

Tips: Why America chooses 60Hz power supply?
It makes sense that 60Hz could be more efficient and more economical than 50Hz. 220/240V also makes more economical sense than the 110V the US uses. 240V and 60Hz seem to be the most efficient values, but only a few countries use that combination. I heard in Brazil they use different combinations, Japan is also split into 2 between 50Hz and 60Hz. Seems like voltage and frequency of AC power supply varies from country to country throughout the world. Most use 220V/230V and 50Hz. About 20% of the countries use 110V and/or 60Hz to power their homes.

The 'Urban Legend' reason why the US choose 60Hz was in one of its first applications - The Electric Chair - it was determined that 60Hz was the optimum frequency to kill a human. This then became the standard. I HEARD THIS FROM MY college professor. Doesn't make that much sense though if you consider that same danger is being carried out to every home. Guess it was just a joke.
