15 KVA 60Hz To 50Hz Frequency Converter

15 KVA 60Hz To 50Hz Frequency Converter
15 KVA 60Hz To 50Hz Frequency Converter
15 KVA 60Hz To 50Hz Frequency Converter
15 KVA 60Hz To 50Hz Frequency Converter
15 KVA 60Hz To 50Hz Frequency Converter
15 KVA 60Hz To 50Hz Frequency Converter
15 KVA 60Hz To 50Hz Frequency Converter
15 KVA 60Hz To 50Hz Frequency Converter
15 KVA 60Hz To 50Hz Frequency Converter
15 KVA 60Hz To 50Hz Frequency Converter
15 KVA 60Hz To 50Hz Frequency Converter
15 KVA 60Hz To 50Hz Frequency Converter
15 KVA 60Hz To 50Hz Frequency Converter
15 KVA 60Hz To 50Hz Frequency Converter
15 KVA 60Hz To 50Hz Frequency Converter
0 reviews • Write a review
from Save -6%
$5,615.54
$5,990.00
Ex Tax: $5,615.54
  • Stock: In Stock
  • Model: HZTOHZ-G15
  • Weight: 1.00
  • SKU: HZTOHZ-G15

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1 KVA Frequency Converter 60Hz To 50Hz
Quickview
1 KVA Frequency Converter 60Hz To 50Hz
$1,549.97 $1,799.00
Ex Tax:$1,549.97
Add to Cart Add to Wish List Compare this Product
10 KVA Pure Sine Wave Frequency Converter
Quickview
10 KVA Pure Sine Wave Frequency Converter
$4,676.54 $4,999.00
Ex Tax:$4,676.54
Add to Cart Add to Wish List Compare this Product
10 KVA Three Phase 220V/380V Frequency Converter
Quickview
10 KVA Three Phase 220V/380V Frequency Converter
$5,990.77 $6,499.00
Ex Tax:$5,990.77
Add to Cart Add to Wish List Compare this Product
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
Quickview
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
$27,492.00 $29,890.00
Ex Tax:$27,492.00
Add to Cart Add to Wish List Compare this Product
10kVA 400Hz To 50Hz/60Hz Frequency Converter
Quickview
10kVA 400Hz To 50Hz/60Hz Frequency Converter
$7,166.67 $7,325.82
Ex Tax:$7,166.67
Add to Cart Add to Wish List Compare this Product
15 KVA Three Phase Frequency Converter
Quickview
15 KVA Three Phase Frequency Converter
$7,189.58 $7,999.00
Ex Tax:$7,189.58
Add to Cart Add to Wish List Compare this Product

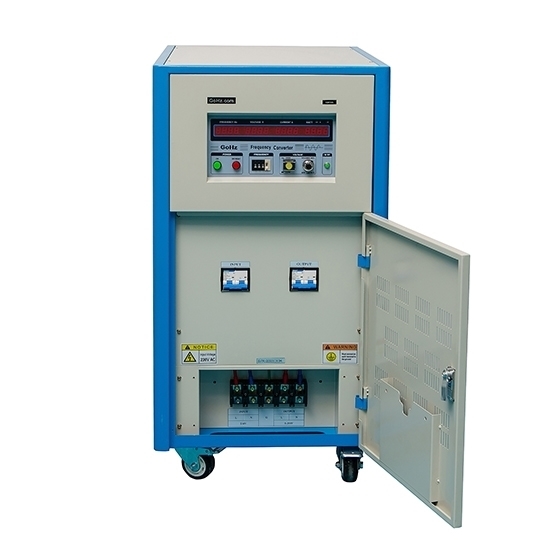

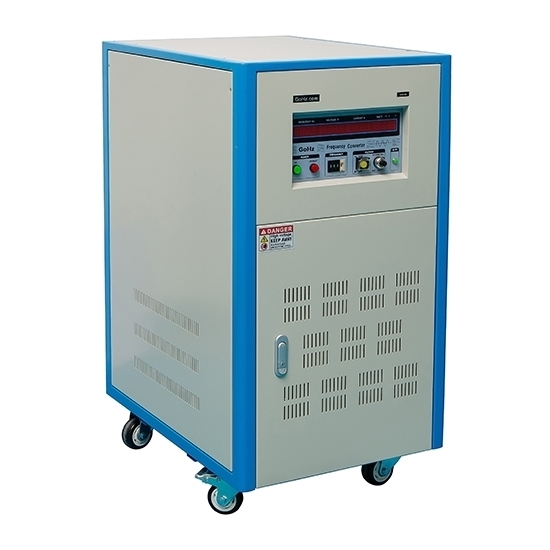

15 kVA static pure sine wave 60Hz to 50Hz frequency converter, convert single phase AC power 120V 60 Hz to 240V 50 Hz by built-in step up power transformer, make international 50Hz/60Hz power system compatible easily.

Specification

ModelHZ-50-1115
Capacity15 kVA
Dimension680*500*970mm
Weight150kg
InputVoltage1 Phase 2 Wire: 110V/120V, 220V/230V/240V ± 10% (option *)
Frequency50 Hz, 60 Hz or 400 Hz ± 5%
OutputVoltage, current110V Setting (Low grade): 0-150V, 125A
220V Setting 0-300V (High grade): 0-300V, 62.5A
Load stabilization Rate≤±1%
Frequency50Hz, 60Hz up to 400Hz adjustable
Note:
-When the output is 400Hz, the load capacity can only reach 50% of the rated capacity.
-When the output is ≤120Hz, the load capacity can reach 100% of the rated value.
-You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
Frequency Stability≤±0.01%
Harmonic DistortionPure Sine Wave ≤2%

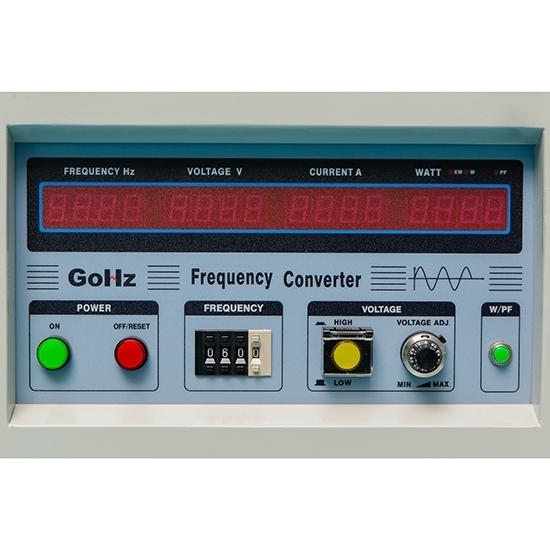

Frequency meter4 digit, digital frequency meter, resolution 0.1Hz/Step
Voltmeter4 digit, digital voltage meter, resolution 0.1V
Ammeter4 digit, digital ammeter, resolution 0.1A
Watt meter4 digit, digital Watt meter, resolution 0.1W
ProtectionWith overload, short circuit, over temperature
Instantaneous power failure protection and alarm device
Working EnvironmentTemperature0 - 40 deg.℃
Humidity0 - 90% (Non condensation)
Warranty18 months

* The input voltage is factory selected.

Tips: Why there are 50Hz and 60Hz?
The frequency (50 Hz or 60 Hz) of AC power source was selected arbitrarily when systems were stand-alone (not interconnected) Therefore if you had a water mill driving a generator to power the machines in your factory it didn't really matter. This gave rise to a wide range of frequencies being used from around 15 Hz up to 90 Hz and beyond. This was OK for powering machinery. However when electric light was introduced it was clear that at any frequency below about 45 Hz you could see an incandescent light bulb flickering. Thereafter 50Hz was the general minimum. AEG in Germany drove towards 50Hz which spread throughout Europe and Westinghouse settled on 60Hz which became the norm in the US. These practices spread across the world according to areas of influence - Africa and most of Asia is 50Hz while all of the Americas, parts of Japan and the Philippines and the Pacific islands are all 60Hz. This leads to some interesting situations with US bases in Europe which have to have 60Hz generators and are generally isolated from the normal supplies. You can use a static frequency converter to change between them.
