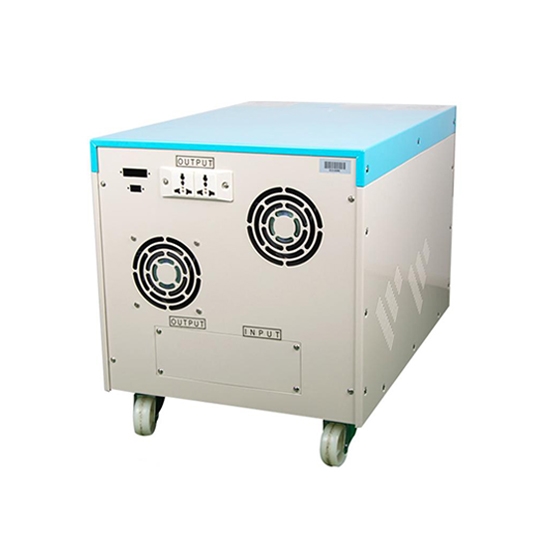

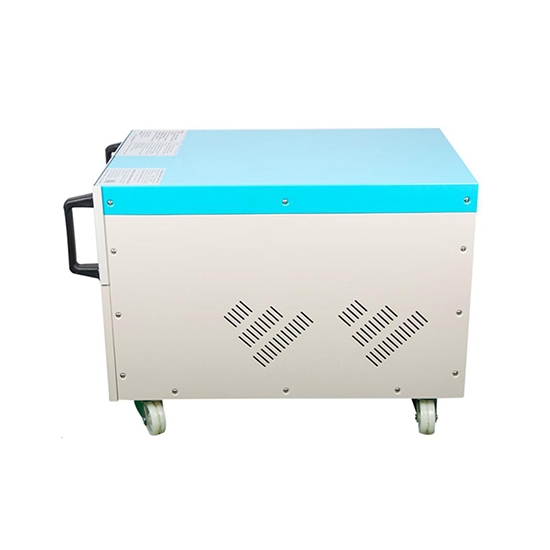

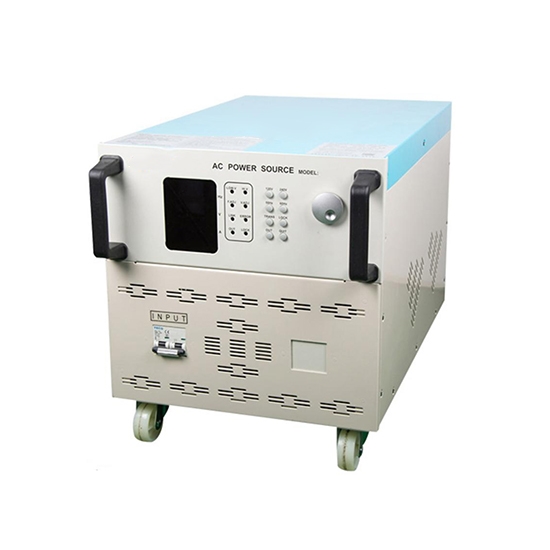

10kVA 400Hz To 50Hz/60Hz Frequency Converter

10kVA 400Hz To 50Hz/60Hz Frequency Converter
10kVA 400Hz To 50Hz/60Hz Frequency Converter
10kVA 400Hz To 50Hz/60Hz Frequency Converter
Free Shipping
10kVA 400Hz To 50Hz/60Hz Frequency Converter
10kVA 400Hz To 50Hz/60Hz Frequency Converter
10kVA 400Hz To 50Hz/60Hz Frequency Converter
10kVA 400Hz To 50Hz/60Hz Frequency Converter
0 reviews • Write a review
from Save -2%
$7,166.67
$7,325.82
Ex Tax: $7,166.67
  • Stock: In Stock
  • Model: HZTOHZ-G95
  • Weight: 1.00
  • SKU: HZTOHZ-G95

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1 KVA Frequency Converter 60Hz To 50Hz
Quickview
1 KVA Frequency Converter 60Hz To 50Hz
$1,549.97 $1,799.00
Ex Tax:$1,549.97
Add to Cart Add to Wish List Compare this Product
10 KVA Pure Sine Wave Frequency Converter
Quickview
10 KVA Pure Sine Wave Frequency Converter
$4,676.54 $4,999.00
Ex Tax:$4,676.54
Add to Cart Add to Wish List Compare this Product
10 KVA Three Phase 220V/380V Frequency Converter
Quickview
10 KVA Three Phase 220V/380V Frequency Converter
$5,990.77 $6,499.00
Ex Tax:$5,990.77
Add to Cart Add to Wish List Compare this Product
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
Quickview
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
$27,492.00 $29,890.00
Ex Tax:$27,492.00
Add to Cart Add to Wish List Compare this Product
15 KVA 60Hz To 50Hz Frequency Converter
Quickview
15 KVA 60Hz To 50Hz Frequency Converter
$5,615.54 $5,990.00
Ex Tax:$5,615.54
Add to Cart Add to Wish List Compare this Product
15 KVA Three Phase Frequency Converter
Quickview
15 KVA Three Phase Frequency Converter
$7,189.58 $7,999.00
Ex Tax:$7,189.58
Add to Cart Add to Wish List Compare this Product
150 KVA 460V 60Hz To 415V/400V 50Hz Converter
Quickview
150 KVA 460V 60Hz To 415V/400V 50Hz Converter
$34,716.00 $38,990.00
Ex Tax:$34,716.00
Add to Cart Add to Wish List Compare this Product
15kVA 400Hz To 50Hz/60Hz Frequency Converter
Quickview
15kVA 400Hz To 50Hz/60Hz Frequency Converter
$10,177.78 $10,364.96
Ex Tax:$10,177.78
Add to Cart Add to Wish List Compare this Product

10kVA single phase input frequency converter at reasonable price, coverts 115V 400Hz to 50Hz/60Hz for aircraft manufacturing and testing.

Specification

ModelHZ-AFC-1110
Input Specifications
PhaseSingle phase
Voltage115V±10% (Please contact us for other input voltage)
Frequency400Hz±5%
Output Specifications
Capacity5kVA
Phase (Optional)*Single phase (L, N, G)
Spilt phase (L1, L2, N+G; L1+L2=240V, L+N=120V)
Max Current0-150V Range84A
0-300V Range42A
VoltageL-N (Line to Neutral)Low Range 0-150V/ High Range 0-300V
Transient Response30ms
Frequency (Optional)*45-65Hz Adjustable, 45~400Hz Variable
Note:
When the output is 400Hz, the load capacity can only reach 50% of the rated capacity;
When the output is ≤120Hz, the load capacity can reach 100% of the rated value.
Total Harmonic Distortion (THD)≤1% (Resistive Load, Full load 2%)
Voltage Regulation≤1%
Load Regulation≤1% (Resistive Load)
Frequency Regulation≤0.01%
Efficiency≥85% ( At full load)
ProtectionOver current, Short circuit, Over temperature, Over load, Phase deficient, Low-voltage protection.
Overload Capacity100%110%130%Output>150%, power supply will be cut off immediately.
MeasurementCurrent (RMS)Resolution: 1mA/10mA or 10mA/100mA
Accuracy: 0.3%F.S.±3; Counts±0.1%/100Hz
Voltage (RMS)Resolution: 0.1V
Accuracy: 0.3% F.S.±2; Counts±0.1%/100Hz
FrequencyResolution: 0.01Hz/0.1Hz
Accuracy: 0.3% F.S.±2; Counts±0.05%/100Hz
Working Environment
Operating Temperature0 - 40°C/ 32 - 104°F
Relative Humidity10-90%,（Non-condensing)
Functions
4 Digits LED DisplayVoltage, Current, Frequency
InterfaceRS232 (Optional: RS485, GPIB, just contact us)
Memory FunctionWith power-off memory function, remember the last output parameters automatically.
Sync Output SignalSupport
Mechanical Specifications
Dimensions (W x H x D)432 x 475 x 595mm
Weights130kg


Tips: 400Hz frequency converter applications
The 400Hz solid state variable power supply is supplied through the ground well or terminal cabinet of the hangar to meet the electrical requirements of aircraft overhaul and maintenance. Its specifications and shapes have fixed, bridge-mounted power supply and trailer power supply installation.

GoHz 400Hz static frequency converter converts single-phase 150V electric inverter into 0-300V 50Hz/60Hz single-phase AC power supply, which is used for power supply of aircraft and airborne equipment. It is a necessary ground support equipment for military and civil airports, aircraft maintenance bases, aircraft manufacturers and research institutes. SVPWM technology is used to adjust the voltage amplitude, so that the static power supply has a very small harmonic content when the output load and input power supply change, and maintains a good dynamic performance. According to the user's requirements, we can provide fixed type, bridge type and trailer type units. 400Hz 115V intermediate frequency power supply is specially designed and manufactured for aviation and military electronic and electrical equipment. It can be used for aircraft and airborne equipment, radar, navigation and other military electronic equipment, and other occasions requiring 400Hz intermediate frequency power supply.
