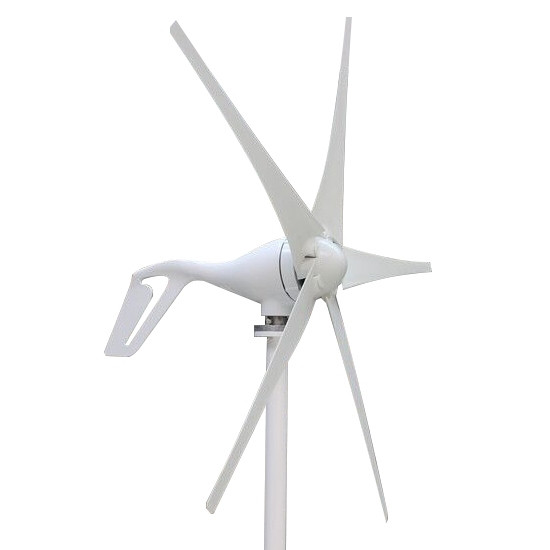

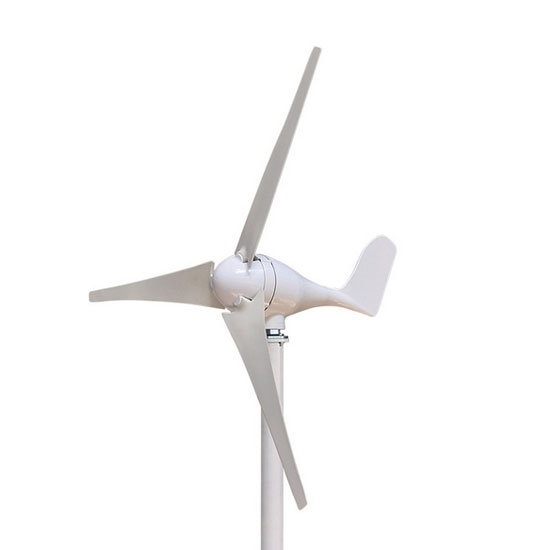

600W Horizontal Axis Wind Turbine, 12V/24V/48V
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: HZTOHZ-WT-600M4
- Weight: 1.00
- SKU: HZTOHZ-WT-600M4
600W horizontal axis wind turbine with rated voltage 12V/24V/48V. Wind speed of 11.5 m/s, small size, and 1.9m wheel diameter. 2.5m/s start-up wind speed can be selected. Built-in low speed 3 phase AC permanent magnet generator to effectively regulate current and voltage, high wind energy utilization.
Feature:
- Low starting wind speed, beautiful appearance, and low running vibration.
- Using humanized flange installation design, convenient installation, and maintenance.
- The starting speed is slow, and 3 blades can be selected in different wind speed regions, and the wind energy utilization rate is high.
- The blade adopts the new technology of precision injection molding, with optimized aerodynamic shape and structure, which improves the wind energy utilization rate and annual output.
- Cast aluminum alloy body, can rotate 2 bearings, can resist strong wind, safer operation.
- Patented permanent magnet alternator with special stator, which effectively reduces the torque and matches the wind turbine with the generator to ensure the performance of the whole system.
Specification:
| Model | HZTOHZ-WT-600M4 |
| Matched Controller Model | HZTOHZ-WTCMPPT-600 (Click it to the controller page) |
| Rated Power | 600W |
| Maximum Power | 650W |
| Rated Voltage | 12V/24V/48V |
| Start-Up Wind Speed | 2.5 m/s |
| Rated Wind Speed | 11.5 m/s |
| Survival Wind Speed | 45 m/s |
| Wheel Diameter | 1.9m |
| Blades Number | 3 |
| Length of Blades | 900mm |
| Blades Material | Nylon Fiber |
| Generator | Three-Phase Permanent Magnet AC Generator |
| Magnetic Steel | NdFeB |
| Generator Case | Casting Aluminum Alloy |
| Controller System | Electromagnet / Wind Wheel Yaw |
| Speed Regulation | Automatically Adjust Windard |
| Installation Flange | DN40 |
| Working Temperature | -40°C~80°C |
| Gross Weight | 30kg |
| Top Net Weight | 18kg |
| Service Life | 15 years |
| Warranty | 18 months |
| Package Dimension | 1200*395*300mm |

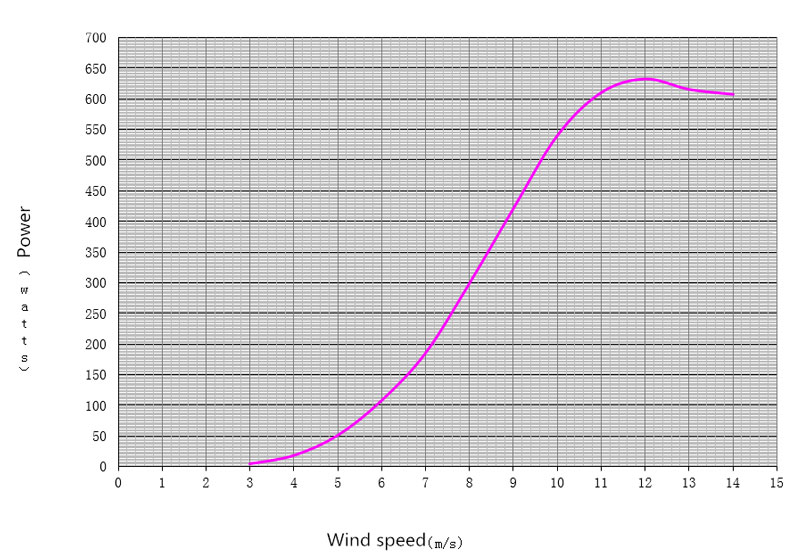

600W Wind Turbine Power Curve:

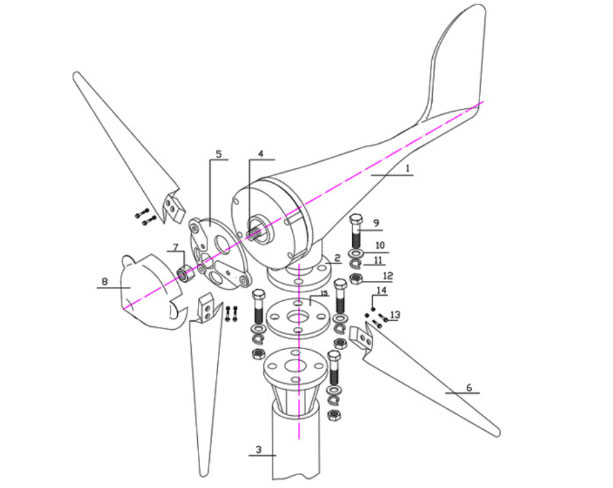

600W Wind Turbine (Flange Seat) Exploded View:
1. Wind turbine body, 2. Wind turbine flange seat, 3. Tower, 4. Wind turbine shaft, 5. Wind hub, 6. Wind wheel, 7. Lock nut, 8. Fairing, 9. Bolt, 10. Flat washer, 11. Elastic washer, 12. Nuts, 13. Stainless steel nut, 14. Anti-loose nut, 15. Rubber pad.
Tips: Why are the blades of a wind turbine so small?
- Length, the length of the blade affects the swept area and determines the wind-catching ability. According to Betz's rule, only about half of the wind is captured by wind turbines.
- Pneumatic part, the aerodynamic shape of the blade can be seen from the cross-section of the blade.
- Overlooking the wing shape, the shape of the blade gradually Narrows from the root to the tip, to ensure a constant reduction rate in the whole sweep area. Ensure that the airflow does not move too slowly through the blade, causing turbulence, and does not pass too fast, causing energy waste.
- Section thickness increases gradually from the tip to the root of the blade thickness to bear greater load and bending moment. If the load is not very important, in general, the ratio of thickness to length is 10-15%. The flat part near the root of the blade helps to improve the efficiency of wind capture.
- In blade torsional design, the rotation speed of the blade increases with the increase of its length, and the windward Angle changes continuously with the extension of the blade.
