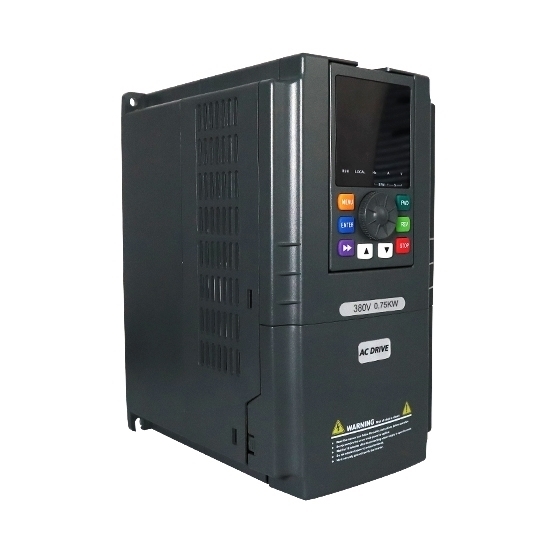

0.75 KW Frequency Inverter, 3 Phase 240V, 415V, 480V
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
0.75 KW Frequency Inverter, 3 Phase 240V, 415V, 480V
from
$206.49
Ex Tax: $206.49
- Stock: In Stock
- Model: GK3000-4T0007G
- Weight: 1.00
- SKU: GK3000-4T0007G
0.75kw variable frequency drive, 3 phase 240V/415V/480V, RS485 communication mode and IP 20 enclosure rating. The frequency drive inverter is widely used in motor control in industrial fields such as machine tools, pharmaceuticals, chemicals, metallurgy, steel, printing, textiles, and petroleum.
Feature
- The LED display of the vfd inverter 3 phase can display the set frequency, output voltage, output current, etc.
- With an IP20 shell protection level, the 3 phase variable frequency drive can be forced air-cooled to stabilize the internal temperature and protect parts from damage.
- The installation methods of the frequency drive inverter include wall-mounted and floor-standing. The installation method can be adjusted according to the actual situation.
- The PLC operation, multi-speed operation, and normal operation of the variable frequency inverter can be used for external swing frequency operation.
- Classic layout control panel, simple and easy to use, high security performance.
Details

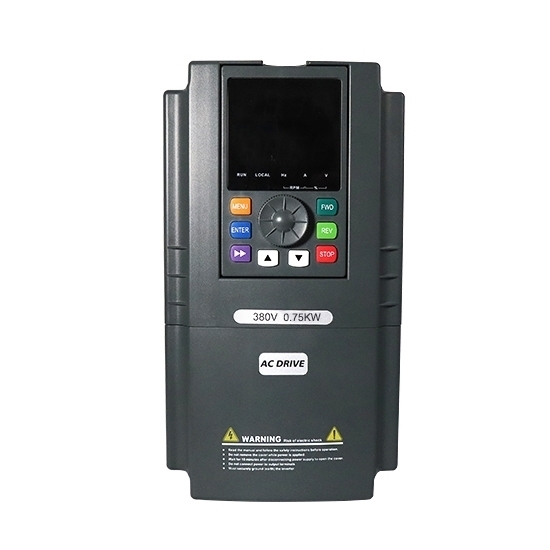

Multiple Function Keyboard
The multi-function keyboard can control the operation of the frequency drive inverter, such as start and stop, acceleration, etc. The user can press the corresponding button to make the 0.75kw inverter work according to the set parameters or control the machine's operating speed by adjusting the output frequency to meet actual needs.
Electronic Screen
The screen of the frequency inverter is a key component in the control system, providing users with an intuitive information display. The electronic screen can monitor the operating status of the three phase inverter in real-time, including input and output voltage, and current waveform, which helps to detect abnormal conditions in time.
Rugged Casing
The 0.75kw inverter's rugged casing plays multiple roles in its design and functionality. It is not only about protecting the circuits and electronic components inside the device but also about the safety, stability, and reliability of the device. Frequency drive inverter is not only protects the internal circuits and components but also provides safety protection.
Applications
Car Manufacturer
Ship Operation
Energy Generation
Building Construction
| Basics | Model | GK3000-4T0007G/ GK3000-2T0007G |
| Capacity | 1 hp (0.75 kW) | |
| Shipping weight | 2 kg | |
| Dimension | 184*98*135 mm | |
| I/O Feature | Rated current | 2.1A at 380V ~ 480V, 3.8A at 220V ~ 240V |
| Input voltage | 3 phase 230V /400V /480V AC ±15% (Optional) | |
| Input frequency | 50Hz/ 60Hz | |
| Output voltage | 3 phase AC 0~input voltage | |
| Output frequency | 0Hz~1000Hz | |
| Over load capacity | 150% of rated current for 1 minute, 180% of rated current for 3 seconds | |
| Control Feature | Control mode | V/F control; Sensorless vector control; |
| Communication | RS485 | |
| Speed regulation | 1:100 | |
| Start torque | 150% of rating torque at 1 Hz | |
| Speed control accuracy | ≤±0.5% of rating synchronous speed | |
| Frequency precision | Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2% | |
| Frequency resolution | Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz | |
| Torque boost | Automatic torque boost, manual torque boost 0.1%~30.0% | |
| Interior PID controller | Be convenient to make closed-loop system | |
| Automatic energy save running | Optimize V/F curve automatically based on the load to realize power save running | |
| Automatic voltage regulation (AVR) | Can keep constant output voltage when power source voltage varies. | |
| Automatic current limiting | Limit running current automatically to avoid frequent over-current which will cause trip | |
| Environment | Enclosure rating | IP 20 |
| Temperature | –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5% | |
| Humidity | 5%-95%, without condensation | |
| Altitude | ≤1000m; VFD will be derated if above 1000m | |
| Impingement and oscillation | Normal running:<5.9m 2="" (0.6g);=""><15m 2=""> | |
| Store environment | –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight |
