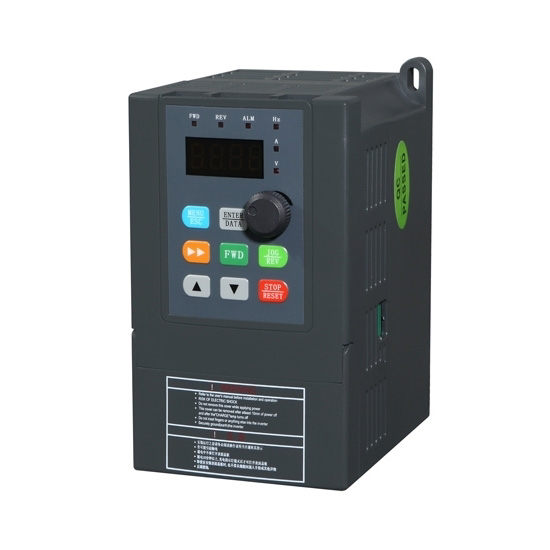

0.4 KW Single Phase To Three Phase Frequency Inverter
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: GK3000-2S0004
- Weight: 1.00
- SKU: GK3000-2S0004
1/2 hp 1-phase to three phase frequency inverter with RS485 communication mode can work at (–10℃, 40℃). Come with IP20 protection, single to three phase inverter input voltage 1 phase 220V AC ±15%, output voltage 3 phase AC 0~input voltage. Durable housing, easy to install.
Feature
- With an IP20 enclosure rating, the 0.4kw frequency drive inverter can work at (–10℃, 40℃), converting single phase to 3 phase.
- Come with RS485 communication mode, variable frequency drive single phase to 3 phase has high frequency precision, digital setting max frequency ± 0.01%; analog setting max frequency ± 0.2%. The electronic screen is of moderate size, with clear font display, and can monitor the numerical changes of the inverter in real time. Easy to install and operate.
- The variable frequency drive single phase to 3 phase with cooling fan, interior PID controller is convenient to make closed-loop system.
Details

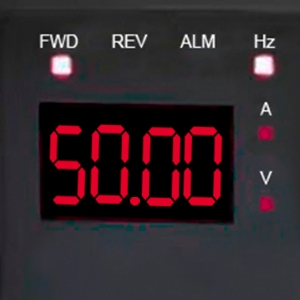

Digital Display
The electronic screen of the 0.4 kw inverter 1 phase to 3 phase displays clear fonts. Various 1 phase to three phase inverter's indicators will display the corresponding 0.4kw single to three phase inverter operating conditions. It can monitor real-time inverter data changes, and improve safety performance.

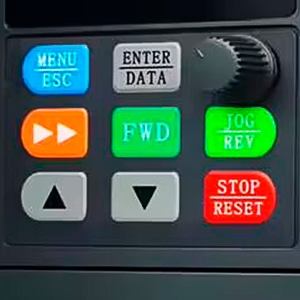

Multi-function Button
Equipped with multi-function keys, inverter has menu/exit, forward, up/down keys, stop/reset, etc. The key of single phase to 3 phase inverter is very convenient for adjusting the operating inverter from single phase to three phase parameters and operating status at any time.

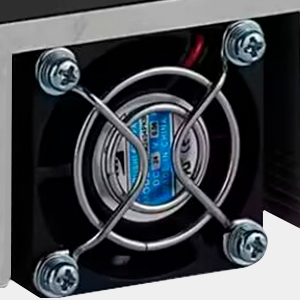

Cooling Fan
The cooling fan installed in the 0.4 kw inverter single phase to three phase introduces cooling air into the inverter, reducing the temperature of the components, protecting the devices from damage, and prolonging the inverter's service life.
Applications
Medical Equipment
Solar Power Generation
Electric Vehicle Charging
Office Equipment
| Basics | Model | GK3000-2S0004 |
| Capacity | 0.4 kW (1/2 hp) | |
| Shipping weight | 2 kg | |
| Dimension | 142*85*113 mm | |
| I/O Feature | Rated current | 3 A |
| Input voltage | 1 phase 220V AC ±15% | |
| Input frequency | 50Hz/ 60Hz | |
| Output voltage | 3 phase AC 0~input voltage | |
| Output frequency | 0Hz~1000Hz | |
| Over load capacity | 150% of rated current for 1 minute, 180% of rated current for 3 seconds | |
| Control Feature | Control mode | V/F, Sensorless vector control (SVC), Speed sensor vector control (FVC) |
| Communication | RS485 | |
| Speed regulation | 1:100 | |
| Start torque | 150% of rating torque at 1 Hz | |
| Speed control accuracy | ≤±0.5% of rating synchronous speed | |
| Frequency precision | Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2% | |
| Frequency resolution | Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz | |
| Torque boost | Automatic torque boost, manual torque boost 0.1%~30.0% | |
| Interior PID controller | Be convenient to make closed-loop system | |
| Automatic energy save running | Optimize V/F curve automatically based on the load to realize power save running | |
| Automatic voltage regulation (AVR) | Can keep constant output voltage when power source voltage varies. | |
| Automatic current limiting | Limit running current automatically to avoid frequent over-current which will cause trip | |
| Environment | Enclosure rating | IP 20 |
| Temperature | –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5% | |
| Humidity | 5%-95%, without condensation | |
| Altitude | ≤1000m; VFD will be derated if above 1000m | |
| Impingement and oscillation | Normal running:<5.9m 2="" (0.6g);=""><15m 2=""> | |
| Store environment | –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight |
