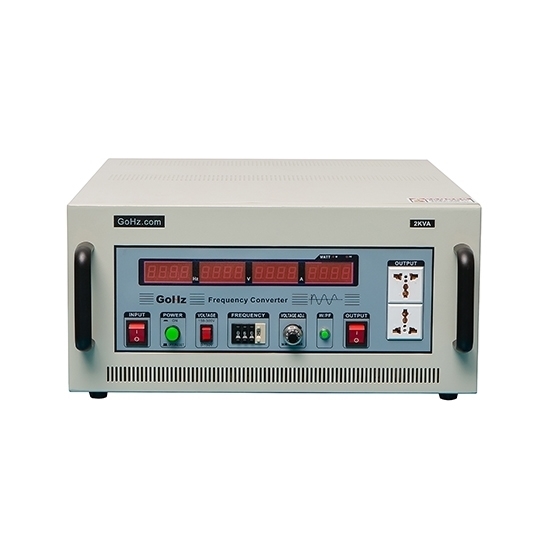

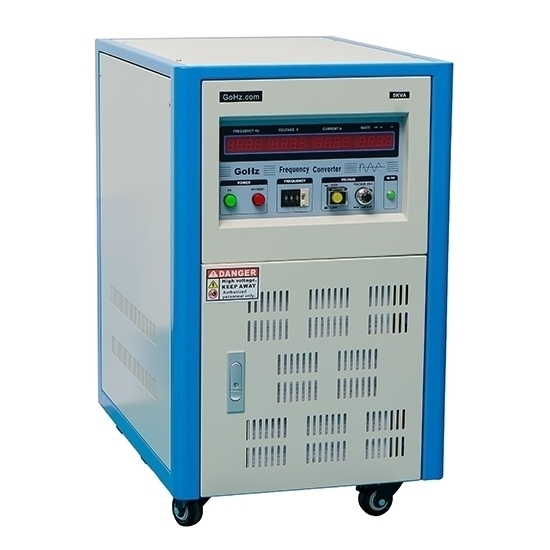

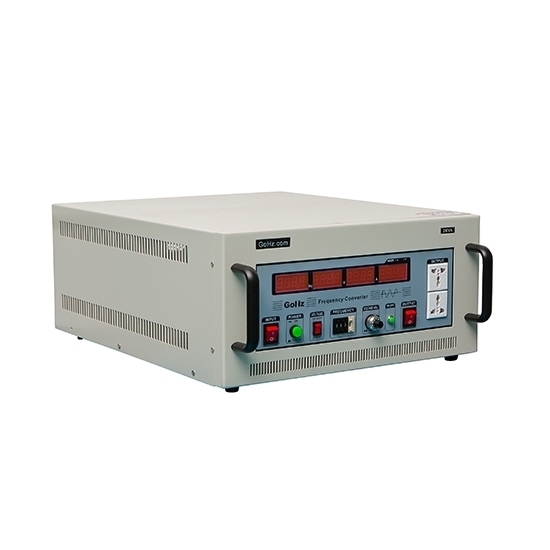

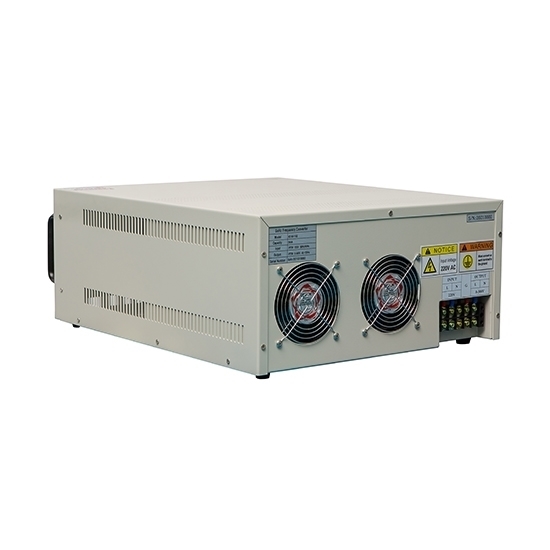

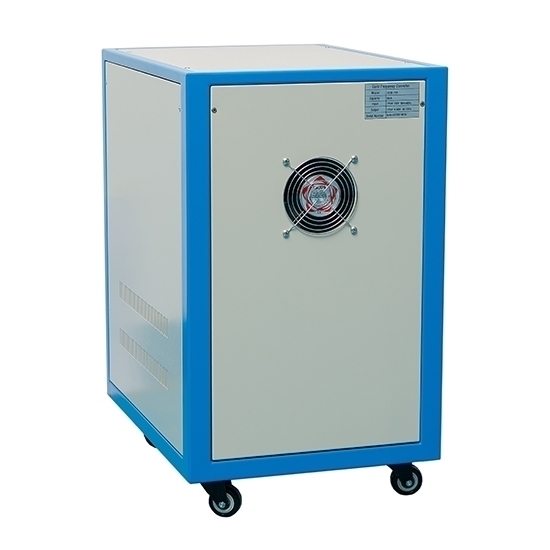

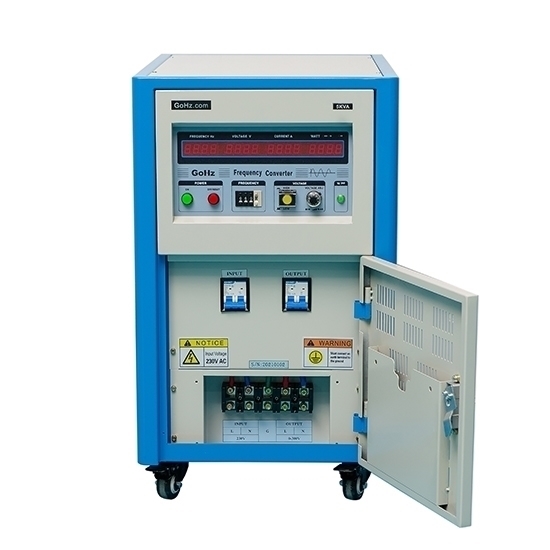

3 KVA 50Hz To 60Hz Frequency Converter

0 reviews • Write a review

from Save -7%

$2,623.62

$2,829.00

Ex Tax: $2,623.62

Stock: In Stock
Model: HZTOHZ-G3
Weight: 1.00
SKU: HZTOHZ-G3

Available Options

Textarea

Output Frequency (Hz)

Input Voltage (Single Phase)

Enclosure

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Tips: 60Hz vs 50Hz
The choices of 60 Hz (Hertz) and 50 Hz (Hertz) were both rather arbitrary. (There's no RMS difference) Lower electrical frequencies require more iron in their transformers because the magnetic fields that accompany their AC currents change less rapidly and so saturate the iron more readily. On the other hand, the changing magnetic fields induce eddy currents in the iron core that obviously increase with the increased rate of change caused by higher AC frequencies. The same trade-offs apply to electrical motors too. (And that's why airplane power systems where weight is important use much higher frequencies, 400 Hz.)

So, generally 50 Hz transformers/motors have higher initial costs but lower operating costs and longer lives. It is generally accepted that Nikola Tesla chose 60 Hz as the lowest frequency that would not cause street lighting to flicker visibly. The origin of the 50 Hz frequency is open to debate but seems likely to be a rounding off of 60Hz to the 1, 3, 5, 10 structure popular with metric standards.

Builder in Product TAB

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules. Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Model	HZ-50-1103
Capcity	3 kVA
Dimension	Benchtop Type	590490230mm
Dimension	Cabinet Type	550400670mm
Weight	Benchtop Type	51 kg
Weight	Cabinet Type	75 kg
Frequency	50 Hz, 60 Hz or 400 Hz ± 5%
Output	Voltage, current	110V Setting (Low grade): 0-150V, 25A
	Voltage, current	220V Setting 0-300V (High grade): 0-300V, 12.5A
	Load stabilization Rate	≤±1%
	Frequency	50Hz, 60Hz up to 400Hz adjustable Note: -When the output is 400Hz, the load capacity can only reach 50% of the rated capacity. -When the output is ≤120Hz, the load capacity can reach 100% of the rated value. -You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
	Frequency Stability	≤±0.01%
	Harmonic Distortion	Pure Sine Wave ≤2%
	Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
	Voltmeter	4 digit, digital voltage meter, resolution 0.1V
	Ammeter	4 digit, digital ammeter, resolution 0.1A
	Watt meter	4 digit, digital Watt meter, resolution 0.1W
Protection	With overload, short circuit, over temperature
Protection	Instantaneous power failure protection and alarm device
Working Environment	Temperature	0 - 40 deg.℃
Working Environment	Humidity	0 - 90% (Non condensation)
Warranty	18 months

Frequency Converters

Frequency Converters

HZTOHZ

3 KVA 50Hz To 60Hz Frequency Converter

Why buy from us?
