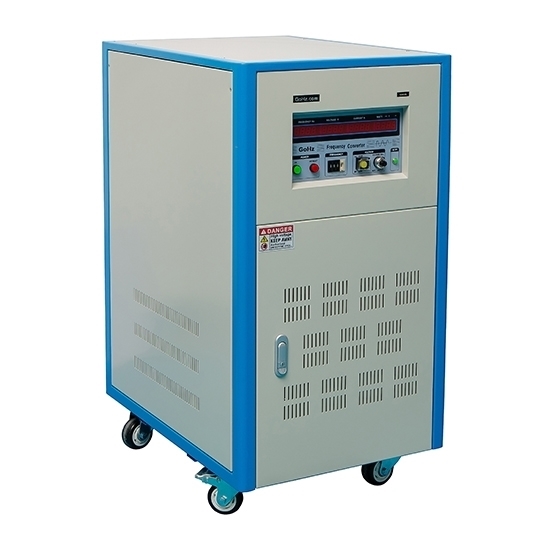

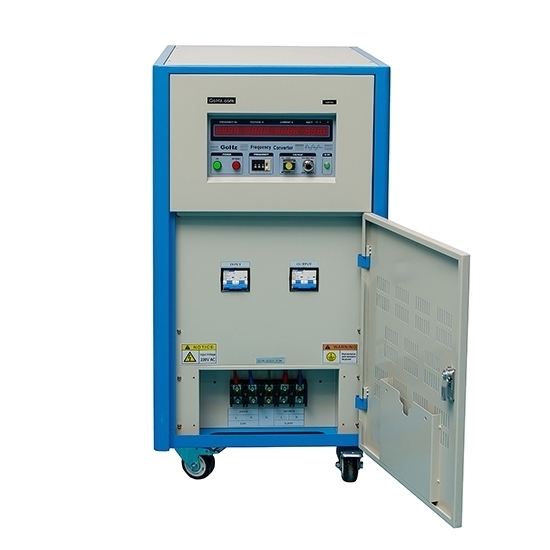

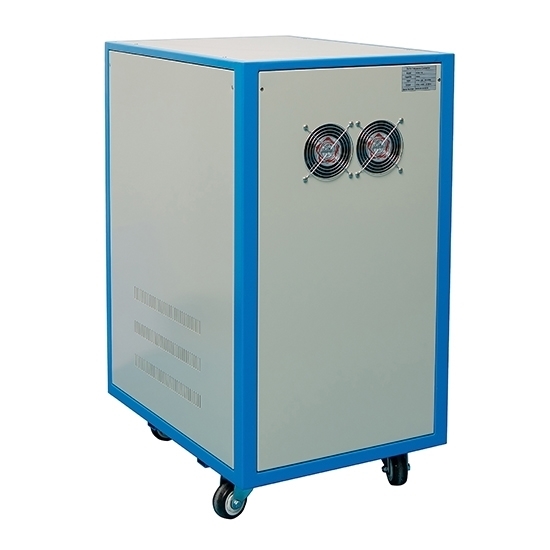

10 KVA Pure Sine Wave Frequency Converter

0 reviews • Write a review

from Save -6%

$4,676.54

$4,999.00

Ex Tax: $4,676.54

Stock: In Stock
Model: HZTOHZ-G14
Weight: 1.00kg
SKU: HZTOHZ-G14

Available Options

Textarea

Output Frequency (Hz)

Input Voltage (Single Phase)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Tips: Can a 60 Hertz motor run on 50 Hertz frequency?
Systems are different on 50 Hertz & 60 Hertz while designing the system we need to be careful, whether it needs to be operated on 60 Hz system or 50 Hz system. 60Hz systems usually use 120V or thereabouts for the domestic power supply, while 50Hz systems tend to use 220V etc.
When frequency is increased voltage has got reduced

v=Vp Sin (2*pi*f*t)

If f is increase than sin value will be less, voltage will be reduced. So due to this factor 60 Hz motor may not run on 50 Hz system because of its voltage parameter and sine angle. If we design the system with vary of voltage and frequency than it may work. But bying using this pure sine wave 10 kVA frequency converter, your motor can definitely run on 50Hz or 60Hz frequency.

Builder in Product TAB

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules. Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Model	HZ-50-1110
Capacity	10 kVA
Dimension	680500970mm
Weight	130 kg

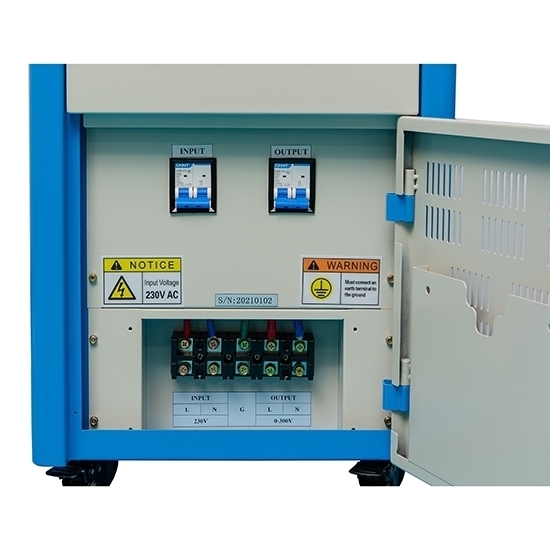

Input	Voltage	1 Phase 2 Wire: 110V/120V, 220V/230V/240V ± 10% (option *)
Input	Frequency	50 Hz, 60 Hz or 400 Hz ± 5%
Output	Voltage, current	110V Setting (Low grade): 0-150V, 83.2A
	Voltage, current	220V Setting 0-300V (High grade): 0-300V, 41.6A
	Load stabilization Rate	≤±1%
	Frequency	50Hz, 60Hz up to 400Hz adjustable Note: -When the output is 400Hz, the load capacity can only reach 50% of the rated capacity. -When the output is ≤120Hz, the load capacity can reach 100% of the rated value. -You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
	Frequency Stability	≤±0.01%
	Harmonic Distortion	Pure Sine Wave ≤2%

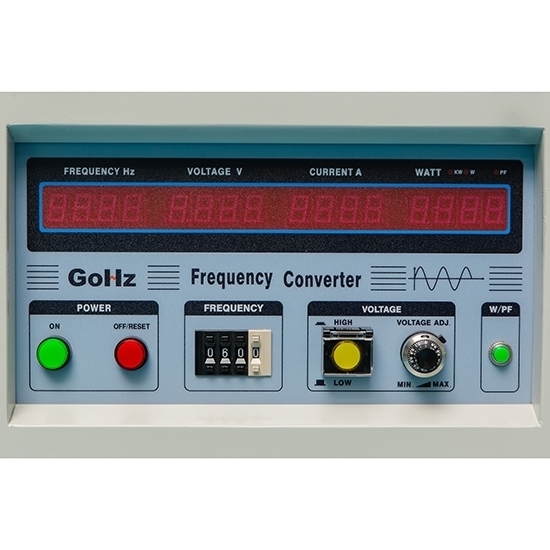

	Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
	Voltmeter	4 digit, digital voltage meter, resolution 0.1V
	Ammeter	4 digit, digital ammeter, resolution 0.1A
	Watt meter	4 digit, digital Watt meter, resolution 0.1W
Protection	With overload, short circuit, over temperature
Protection	Instantaneous power failure protection and alarm device
Working Environment	Temperature	0 - 40 deg.℃
Working Environment	Humidity	0 - 90% (Non condensation)
Warranty	18 months
