10 KVA Three Phase 220V/380V Frequency Converter

10 KVA Three Phase 220V/380V Frequency Converter
10 KVA Three Phase 220V/380V Frequency Converter
10 KVA Three Phase 220V/380V Frequency Converter
10 KVA Three Phase 220V/380V Frequency Converter
10 KVA Three Phase 220V/380V Frequency Converter
10 KVA Three Phase 220V/380V Frequency Converter
10 KVA Three Phase 220V/380V Frequency Converter
10 KVA Three Phase 220V/380V Frequency Converter
10 KVA Three Phase 220V/380V Frequency Converter
10 KVA Three Phase 220V/380V Frequency Converter
10 KVA Three Phase 220V/380V Frequency Converter
10 KVA Three Phase 220V/380V Frequency Converter
10 KVA Three Phase 220V/380V Frequency Converter
10 KVA Three Phase 220V/380V Frequency Converter
10 KVA Three Phase 220V/380V Frequency Converter
0 reviews • Write a review
from Save -8%
$5,990.77
$6,499.00
Ex Tax: $5,990.77
  • Stock: In Stock
  • Model: HZTOHZ-G5
  • Weight: 1.00
  • SKU: HZTOHZ-G5

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1 KVA Frequency Converter 60Hz To 50Hz
Quickview
1 KVA Frequency Converter 60Hz To 50Hz
$1,549.97 $1,799.00
Ex Tax:$1,549.97
Add to Cart Add to Wish List Compare this Product
10 KVA Pure Sine Wave Frequency Converter
Quickview
10 KVA Pure Sine Wave Frequency Converter
$4,676.54 $4,999.00
Ex Tax:$4,676.54
Add to Cart Add to Wish List Compare this Product
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
Quickview
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
$27,492.00 $29,890.00
Ex Tax:$27,492.00
Add to Cart Add to Wish List Compare this Product
10kVA 400Hz To 50Hz/60Hz Frequency Converter
Quickview
10kVA 400Hz To 50Hz/60Hz Frequency Converter
$7,166.67 $7,325.82
Ex Tax:$7,166.67
Add to Cart Add to Wish List Compare this Product
15 KVA 60Hz To 50Hz Frequency Converter
Quickview
15 KVA 60Hz To 50Hz Frequency Converter
$5,615.54 $5,990.00
Ex Tax:$5,615.54
Add to Cart Add to Wish List Compare this Product
15 KVA Three Phase Frequency Converter
Quickview
15 KVA Three Phase Frequency Converter
$7,189.58 $7,999.00
Ex Tax:$7,189.58
Add to Cart Add to Wish List Compare this Product

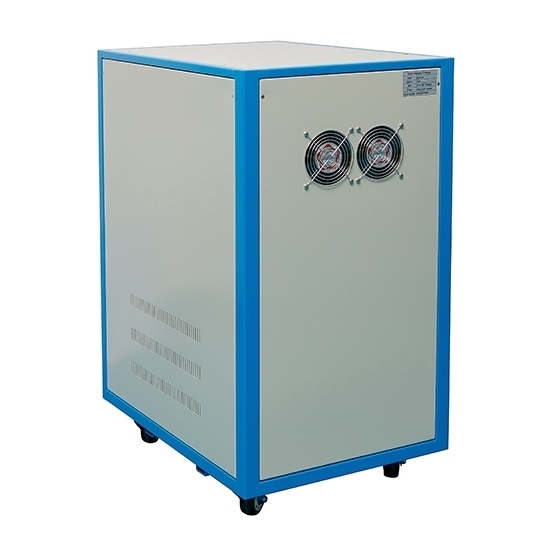

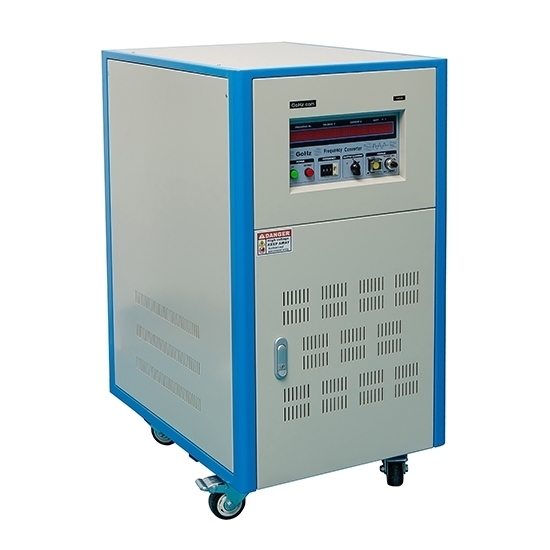

10 kVA three phase solid state frequency converter, easy converting fixed frequency to variable frequency for powering & testing industrial machines with pure sine wave, also can change three phase 220V to 380V/400V in one step.

Specification

ModelHZ-50-3310
Capacity10 kVA
Dimension770*580*1140mm
Weight150kg
InputVoltage3 Phase 4 Wire: Wye Type 190/110, 200/115, 208/120, 220/128, 230/132, 240/139V ±10% (option *)
3 Phase 4 Wire: Wye Type 380/220, 400/230, 415/240, 440/254, 460/265, 480/277V ± 10% (option *)
3 Phase 4 Wire: Della Type 220, 230, 240, 380, 400, 415, 440V ± 10% (option *)
Frequency50 Hz, 60 Hz or 400 Hz ± 5%
OutputVoltage, current110V Setting (Low grade): 0-150V (phase voltage), 0-260V (line voltage) 27.6A
220V Setting (High grade): 0-300V (phase voltage), 0-520V (line voltage) 13.8A
Load stabilization Rate≤±1%
Frequency50Hz, 60Hz up to 400Hz adjustable
Note:
-When the output is 400Hz, the load capacity can only reach 50% of the rated capacity.
-When the output is ≤120Hz, the load capacity can reach 100% of the rated value.
-You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
Frequency Stability≤±0.01%
Harmonic DistortionPure Sine Wave ≤2%

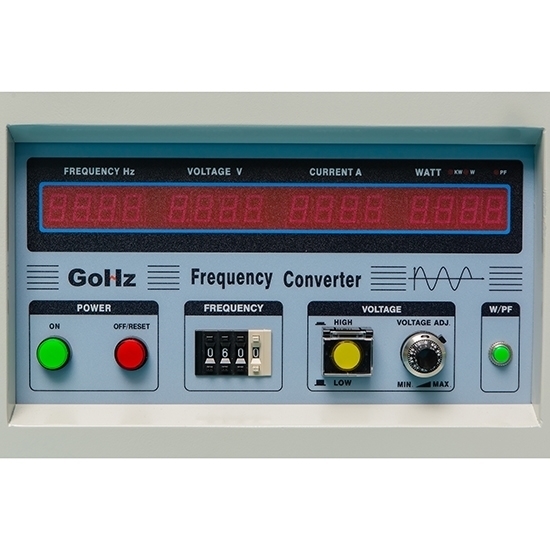

Frequency meter4 digit, digital frequency meter, resolution 0.1Hz/Step
Voltmeter4 digit, digital voltage meter, resolution 0.1V
Ammeter4 digit, digital ammeter, resolution 0.1A
Watt meter4 digit, digital Watt meter, resolution 0.1W
ProtectionWith overload, short circuit, over temperature
Instantaneous power failure protection and alarm device
Working EnvironmentTemperature0 - 40 deg.℃
Humidity0 - 90% (Non condensation)
Warranty18 months

* The input voltage is factory selected.

Tips: Can a 60Hz motor run on 50Hz power supply?
The motors can run at any frequency starting a few Hz until over frequency (a realistic one), the variable frequency drive can do that, as you know. But the motor has to be cooled, ventilated by attached coolers /ventilators. There are a lot of applications when the motors are run at frequency between 10 Hz and 60 Hz (with variable frequency drives) long periods without problems. Main condition is to be cooled! Instead, the very low frequency (for example around 5 Hz) its more difficult because you have to inject a higher current and could become dangerous, so it can be done but not for a long period.
