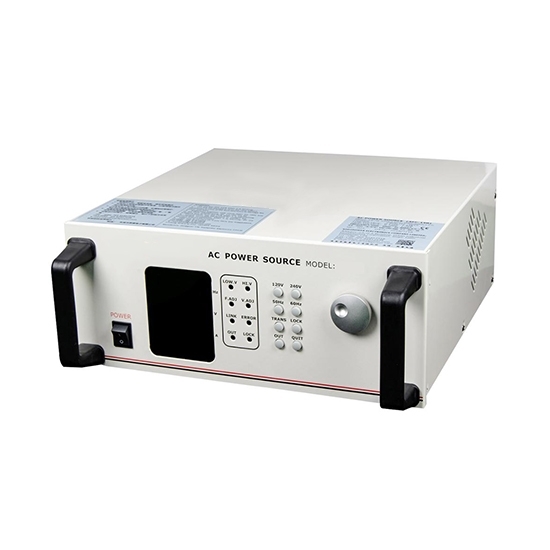

2kVA 400Hz To 50Hz/60Hz Frequency Converter

2kVA 400Hz To 50Hz/60Hz Frequency Converter
2kVA 400Hz To 50Hz/60Hz Frequency Converter
2kVA 400Hz To 50Hz/60Hz Frequency Converter
2kVA 400Hz To 50Hz/60Hz Frequency Converter
2kVA 400Hz To 50Hz/60Hz Frequency Converter
2kVA 400Hz To 50Hz/60Hz Frequency Converter
2kVA 400Hz To 50Hz/60Hz Frequency Converter
0 reviews • Write a review
from Save -6%
$2,582.54
$2,733.42
Ex Tax: $2,582.54
  • Stock: In Stock
  • Model: HZTOHZ-G92
  • Weight: 1.00
  • SKU: HZTOHZ-G92

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1 KVA Frequency Converter 60Hz To 50Hz
Quickview
1 KVA Frequency Converter 60Hz To 50Hz
$1,549.97 $1,799.00
Ex Tax:$1,549.97
Add to Cart Add to Wish List Compare this Product
10 KVA Pure Sine Wave Frequency Converter
Quickview
10 KVA Pure Sine Wave Frequency Converter
$4,676.54 $4,999.00
Ex Tax:$4,676.54
Add to Cart Add to Wish List Compare this Product
10 KVA Three Phase 220V/380V Frequency Converter
Quickview
10 KVA Three Phase 220V/380V Frequency Converter
$5,990.77 $6,499.00
Ex Tax:$5,990.77
Add to Cart Add to Wish List Compare this Product
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
Quickview
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
$27,492.00 $29,890.00
Ex Tax:$27,492.00
Add to Cart Add to Wish List Compare this Product
10kVA 400Hz To 50Hz/60Hz Frequency Converter
Quickview
10kVA 400Hz To 50Hz/60Hz Frequency Converter
$7,166.67 $7,325.82
Ex Tax:$7,166.67
Add to Cart Add to Wish List Compare this Product
15 KVA 60Hz To 50Hz Frequency Converter
Quickview
15 KVA 60Hz To 50Hz Frequency Converter
$5,615.54 $5,990.00
Ex Tax:$5,615.54
Add to Cart Add to Wish List Compare this Product
15 KVA Three Phase Frequency Converter
Quickview
15 KVA Three Phase Frequency Converter
$7,189.58 $7,999.00
Ex Tax:$7,189.58
Add to Cart Add to Wish List Compare this Product

400Hz to 50Hz/60Hz frequency converter with 2kVA capacity, 1-phase 115V input, low voltage distortion. High frequency solid state converter at good price, direct sale by factory.

Specification

ModelHZ-AFC-1102
Input Specifications
PhaseSingle phase
Voltage115V±10% (Please contact us for other input voltage)
Frequency400Hz±5%
Output Specifications
Capacity2kVA
Phase (Optional)*Single phase (L, N, G)
Spilt phase (L1, L2, N+G; L1+L2=240V, L+N=120V)
Max Current0-150V Range16.8A
0-300V Range8.4A
VoltageL-N (Line to Neutral)Low Range 0-150V/ High Range 0-300V
Transient Response30ms
Frequency (Optional)*45-65Hz Adjustable, 45~400Hz Variable
Note:
When the output is 400Hz, the load capacity can only reach 50% of the rated capacity;
When the output is ≤120Hz, the load capacity can reach 100% of the rated value.
Total Harmonic Distortion (THD)≤1% (Resistive Load, Full load 2%)
Voltage Regulation≤1%
Load Regulation≤1% (Resistive Load)
Frequency Regulation≤0.01%
Efficiency≥85% ( At full load)
ProtectionOver current, Short circuit, Over temperature, Over load, Phase deficient, Low-voltage protection.
Overload Capacity100%110%130%Output>150%, power supply will be cut off immediately.
MeasurementCurrent (RMS)Resolution: 1mA/10mA or 10mA/100mA
Accuracy: 0.3%F.S.±3; Counts±0.1%/100Hz
Voltage (RMS)Resolution: 0.1V
Accuracy: 0.3% F.S.±2; Counts±0.1%/100Hz
FrequencyResolution: 0.01Hz/0.1Hz
Accuracy: 0.3% F.S.±2; Counts±0.05%/100Hz
Working Environment
Operating Temperature0 - 40°C/ 32 - 104°F
Relative Humidity10-90%,（Non-condensing)
Functions
4 Digits LED DisplayVoltage, Current, Frequency
InterfaceRS232 (Optional: RS485, GPIB, just contact us)
Memory FunctionWith power-off memory function, remember the last output parameters automatically.
Sync Output SignalSupport
Mechanical Specifications
Dimensions (W x H x D)430 x 192 x 510mm
Weights43kg


Tips: Frequency converter vs. variable frequency drive
Frequency converter is to convert the alternating current in the mains electricity into pure sine wave through AC-DC-AC conversion. The output frequency and voltage can be adjusted in a certain range. It is different from VFD for motor speed, also different from the ordinary AC regulated power supply. The frequency converter is very close to the ideal AC power supply. It has stable frequency, stable voltage, zero internal resistance, pure sine wave (no distortion) voltage waveform, and can output the grid voltage and frequency of any country in the world.

Variable frequency drive (VFD) is composed of AC-DC-AC (modulated wave) circuits. Accurately, the VFD is called the frequency inverter. Its output voltage waveform is pulse square wave and has many harmonic components. The voltage and frequency need to change in proportion at the same time, and cannot be adjusted separately, which does not meet the requirements of AC power supply. In principle, it cannot be used as power supply, only for the speed regulation of three-phase asynchronous motor.
