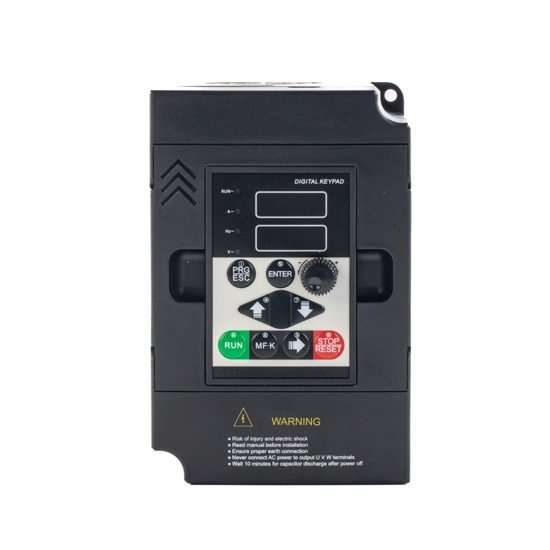

0.75 KW Three Phase Solar Pump Inverter, AC 380V
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
0.75 KW Three Phase Solar Pump Inverter, AC 380V
from
$218.69
Ex Tax: $218.69
- Stock: In Stock
- Model: GK330-SP3-d75
- Weight: 1.00
- SKU: GK330-SP3-d75
0.75 kW solar pump inverter/variable frequency drive, built-in Maximum Power Point Tracking controller system. The solar pump inverter output AC reaches 2.1A at 3-phase 380V, which can drive the centrifugal pump, irrigation pump, axial flow pump, etc. Usually applied in desert greening and grassland animal husbandry.
Features
- Solar pump inverter adopts advanced MPPT control technology, real-time detection of solar panels power voltage, tracking the highest voltage and current, efficiency is as high as 98%.
- It can enter automatically into sleep mode when the intensity of sunlight is weak, as well as exit the sleep mode when the intensity of sunlight is becoming strong.
- Automatic sleep when on the high-water level and automatic restart when on the low-water level to realize automatic control through the water level.
- Smart operation, water level detection, and operation panel to prevent overflow and dry pumping.
- Protect itself in trouble and improve the reliability of the whole system.
- The bypass- AC source which runs automatically when the sun is not sufficient or absent.
Details
Air Vents
The high-performance 0.75kW solar pump driver features high-density vents for optimal cooling, ensuring stable operation in high-temperature environments. The powerful DC heat sink operates quietly, effectively reduces the heat generated during inverter use, and features intelligent start-stop control. The unique independent air duct design forms a sealed space, effectively preventing dust and moisture from entering the circuit board area.

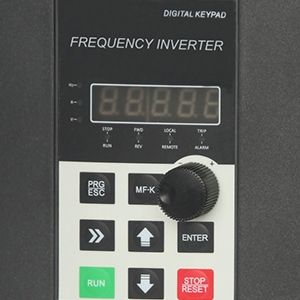

Digital Keypad
The digital keypad of the 0.75kW solar variable frequency drive is clear and easy to use, and can directly control various functions such as starting, stopping, and accelerating. Users can easily set the inverter's parameters and adjust the output frequency to control the pump speed, meeting various operational needs effortlessly. The intuitive design of the digital keypad enhances the efficiency of the solar pump system's operation.

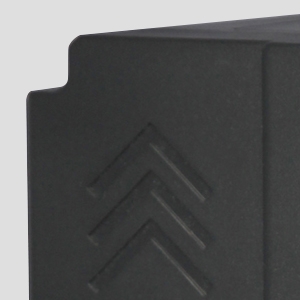

Rugged Casing
The solar pump drive features a dense structure and a rugged casing that is impact-resistant, flame-retardant, aging-resistant, and corrosion-resistant. It is adeptly insulated, dust-proof, and moisture-proof, ensuring safe, stable, and reliable operation. The robust casing protects internal circuits and electronic parts, ensuring the inverter's safety, stability, and reliability, effectively protecting and extending the product life.
Applications
Agricultural Irrigation
Industrial Applications
Farm Livestock
Pool Water Supply
Solar Pump Inverter Working System
| GK330 | Series inverter (for photovoltaic applications) |
| - | Voltage range: SP1S: DC 250~ 400V to 1-phase AC 220V |
| D75 | Adaptable motor power: D75 (0.75KW) |
| Model | SP3-d75 |
| Rated power | 0.75kW |
| Voltage input | DC 350~750 (V), AC 380~460 (V) at 3-phase (When the input is AC, the inverter output voltage is equal to the input voltage) |
| Min. DC voltage | 280V |
| Max. DC voltage | 750V |
| Recommended DC MPPT range | 350~750(V) |
| AC output current | 2.1A at 3 phase 380V |
| Output frequency | 0~50/60 (Hz) |
| Power factor | >0.99 |
| Communication mode | RS485 communication |
| Protection class | IP20 |
| Ambient temperature | -10°C~+40°C (ambient temperature at 40°C~50°C， please keep derated use ) |
| Storage temperature | -20°C~+60°C |
| Humidity | Smaller than 95%RH, non-condensation |
| Cooling | Forced Air cooling |
| Altitude | Lower than 1000m |
| Humidity | Less than 95%RH, without condensing |
| Vibration | Less than 5.9m/s2 (0.6 g) |
