1.5 KW Three Phase Solar Pump Inverter, AC 220V
from
$292.46
Ex Tax: $292.46
- Stock: In Stock
- Model: GK330-SP1-1d5
- Weight: 1.00
- SKU: GK330-SP1-1d5
The 1.5kW MPPT VFD solar pump inverter offers a humidity tolerance of up to 95% RH and adjustable output frequencies (0~50/60Hz). The built-in air-cooling system of the VFD solar inverter ensures stable operation within a temperature range of -10°C to 40°C, providing reliable performance in diverse environments. With broad agricultural irrigation and domestic water supply applications, the solar pump system supports sustainable and eco-friendly living.
Features
- High-Efficiency MPPT Control: This water pump inverter utilizes advanced MPPT technology to track the optimal operating point of solar panels in real-time, optimizing both voltage and current for system efficiency of up to 98%.
- Smart Sleep Mode: Automatically adjusts its operation based on sunlight intensity. The MPPT VFD solar pump inverter enters sleep mode during low sunlight to save energy and quickly resumes operation when sunlight increases, maximizing solar resource utilization.
- Water Level Adaptive Control: Integrated with water level sensing, the solar VFD automatically stops when the water level is high to prevent overflow and restarts when the water level is low to avoid dry running, enabling unattended automated management.
- Intelligent User Interface: The solar pumping inverter features an intuitive control panel with support for water level detection and smart control, ensuring user-friendly and safe operation while preventing equipment damage.
- Fault Self-Protection: Built-in multiple protection mechanisms immediately activate self-protection in case of faults, ensuring stable system operation and enhancing overall system reliability.
- AC Bypass Backup: Includes an integrated AC bypass function. During insufficient or no sunlight, the solar water pumping system automatically switches to an AC power supply, ensuring uninterrupted water pumping.
Details
Air Vents
The cost-effective and advanced 1.5kW solar pump inverter's high-density vents dissipate heat superbly, ensuring stable operation in high-temperature environments. DC powerful heat sink, silent operation, effectively reducing the heat generated using the inverter, intelligent start-stop control. The design of independent air ducts can form an airtight space, effectively preventing dust and water mist from entering the circuit board part.

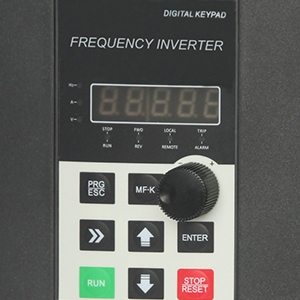

Digital Keypad
The solar pumping inverter has an at-a-glance numeric digital keypad that can easily control the inverter's start, stop, as well as accelerate functions. Anyone who uses it can set the working parameters of the inverter and adjust the output frequency to control the running speed of the 1.5kW solar pump through simple key operation. The numeric keypad design is intuitive, making the operation of the solar pump system more efficient and convenient.

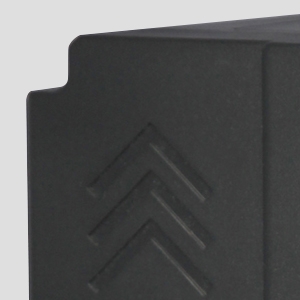

Rugged Casing
The superior performance 1.5 kW solar pump controller is compact, and the sturdy shell has good anti-fall, flame retardant, anti-aging, and corrosion-resistant features, effectively isolates moisture and dust, has stable operation, and is safe and reliable. It not only protects the circuit and electronic components inside the pump inverter but also ensures safety, stability, and reliability, effectively protecting and extending the product life.
Applications
Agricultural Irrigation
Industrial Applications
Farm Livestock
Pool Water Supply
Solar Pump Inverter Working System
| GK330 | Series inverter (for photovoltaic applications) |
| - | Voltage range: SP1S: DC 250~ 400V to 1-phase AC 220V |
| 1D5 | Adaptable motor power: 1D5 (1.5KW) |
| Model | SP1-1d5 |
| Rated Power | 1.5 kW |
| Min. DC Voltage | 120V |
| Max. DC Voltage | 400V |
| Recommended MPPT Range | 250V~400V |
| AC Output | AC 3 Phase 220V |
| Output Current | 5.1A |
| Output Frequency | 0~50/60Hz |
| Power Factor | ＞0.99 |
| Communication Mode | RS485 Communication |
| Protection Class | IP20 |
| Ambient Temperature | -10℃~40℃ (ambient temperature at 40℃~50℃, please keep derated use) |
| Storage Temperature | -20℃~60℃ |
| Humidity | Smaller than 95% RH, non-condensation |
| Cooling | Forced Air Cooling |
| Altitude | Lower than 1000m |
| Humidity | Less than 95% RH, without condensing |
| Vibration | Less than 5.9m/s² (0.6g) |
| Size ( W*H*D) | 120*205*166(mm) |
| Installation Size (W*H*φ) | 108*195*φ4.5(mm) |
| Gross Weight | 3kg |

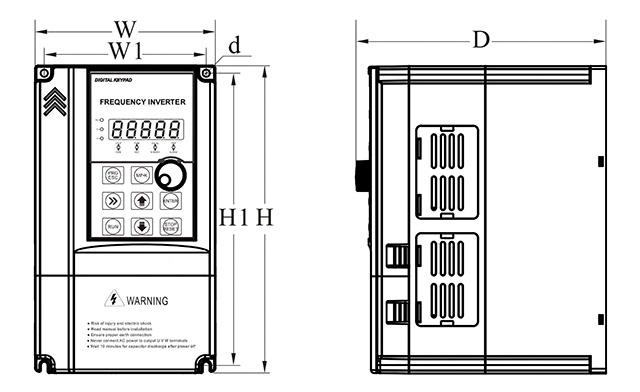

Solar inverter appearance and installing dimension (mm)
