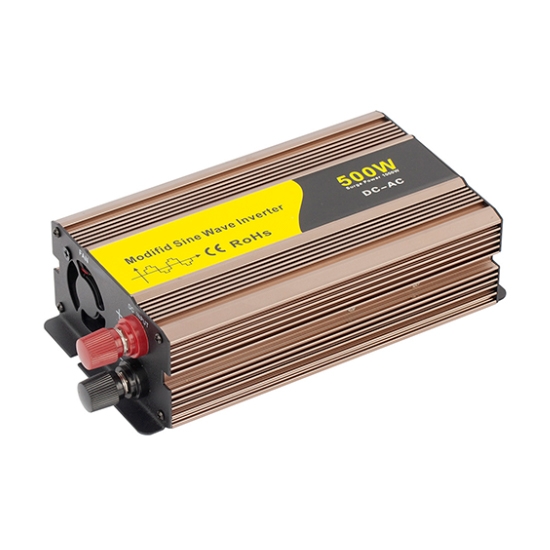

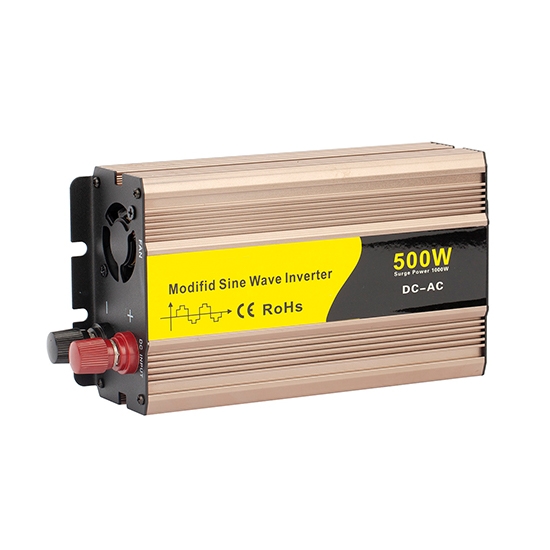

12v 500w Inverter, 12v To 120v/220v Power Inverter
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
12v 500w Inverter, 12v To 120v/220v Power Inverter
from
$69.36
Ex Tax: $69.36
- Stock: In Stock
- Model: HZTOHZ-MSWI-12V-500W
- Weight: 1.00
- SKU: HZTOHZ-MSWI-12V-500W

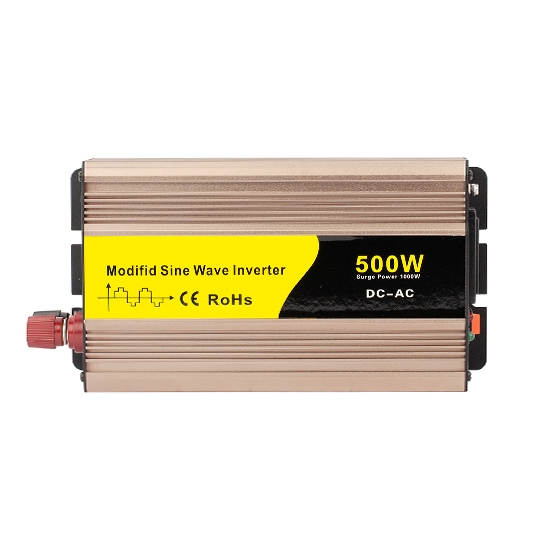

500W inverter for sale, 1000W peak power and DC 12V input voltage, converts 12V DC battery power to 120V/220V AC household power. The power inverter has full safety protections against over voltage, under voltage, overload, over temperature, short circuit, and reverse connection.
Note: Refrigerator or similar to the refrigerator load equipment, need to choose 10 times more power inverter.
Features
- The power inverter for home is made of high-quality aluminum alloy material to improve corrosion resistance.

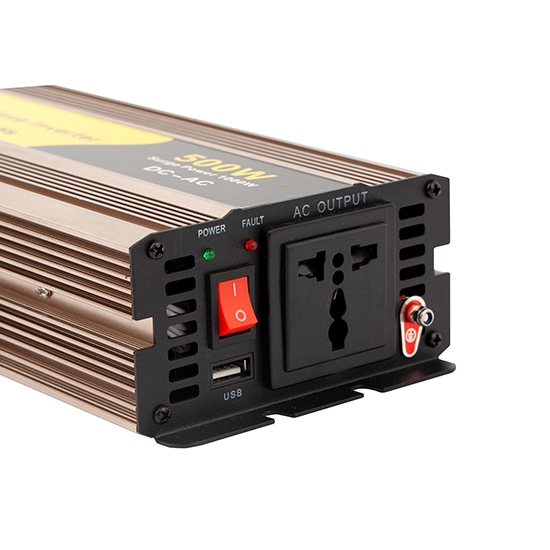

- 500w inverter is installed with a USB port and various types of sockets are available, such as American, South African, French, universal, and so on.
- The inverter is equipped with under-voltage protection, over-voltage protection, overload protection, over-temperature protection, short-circuit protection, and reverse connection protection.
- Widely compatible with refrigerators, ovens, and washing machines, can be used for outdoor charging.
- Adopting good conductive material, the conversion rate of inverter for home is above 90%, and the output is more stable.
Details
Conductive Material

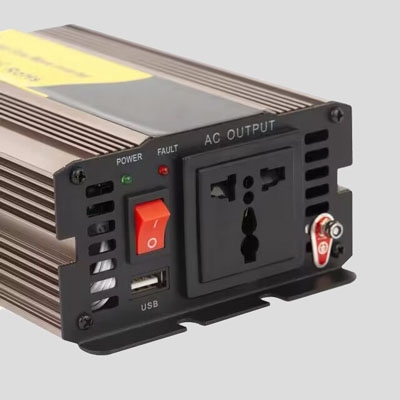

Universal switch and USB charging interface are all in one. Adopt good conductive material, and the conversion rate is more than 90%. The 500 watt power inverter's output is more stable, and the impact of the ability is excellent, up to the effect of frequency machines.

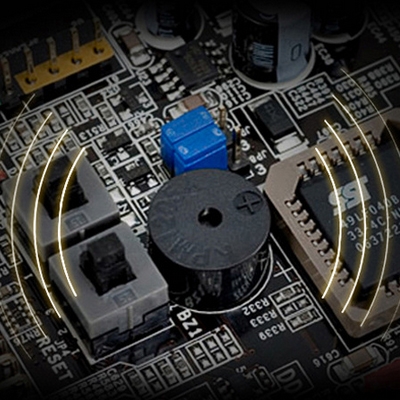

Beeping Alert Device
A beeping reminder device is installed to ensure the safety of the power inverter. When the batteries are low or insufficient, the 12v inverter will emit a ticking alarm to protect the inverter from damage due to insufficient voltage.

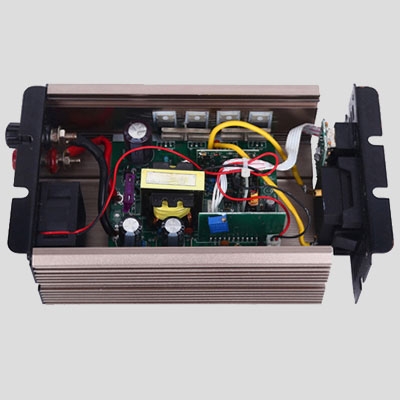

High-Performance Line Version
Using the SMT and SMD process, the volume of the electronic inverter reduced size, and weight reduction by 60% - 80% high reliability. The power inverter has strong vibration resistance, a low rate of defects in the welded joints, and high-frequency performance.
Applications:
Electronics
Laptop
Camera
Television
| Model | HZTOHZ-MSWI-12V-500W |
| Input Voltage | DC 12V |
| Output Voltage* | 1-Phase (L, N, G) 110V/120V AC ±5% or 220V/230V/240V AC ±5% - NOT provide split phase configuration (L1, L2+N, G) |
| Unload Current (less than) | 0.3A |
| Continuous Power | 500W |
| Peak Power | 1000W |
| Output Frequency | 50Hz±0.5Hz or 60Hz±0.5Hz |
| Output Waveform* | Modified sine wave or Pure sine wave |
| Max. Efficiency | 90% |
| USB Port | QC 3.0 |
| Outlet Type* | Universal outlet *1 |
| Input Voltage Range | 10V-15.5V |
| Low Voltage Alarm | 10.5V±0.5V |
| Low Voltage Shutdown | 10V±0.5V |
| High Voltage Shutdown | 15.5V±0.5V |
| Low Voltage Recover | 12.3V±0.5V |
| Over Voltage Recover | 14.8V±0.5V |
| Overload Protection | Yes |
| Overheat Protection | Yes |
| Short Circuit Protection | Yes |
| Reverse Connection Protection | Yes |
| Cooling Method | Intelligent cooling fan |
| Working Temperature | -10℃ ~ +50℃ |
| Storage Temperature | -30℃ ~ +70℃ |
| Product Size | 185x115x60mm |
| Net. Weight | 940g |
| Warranty | 1 year |
| Remote Control * | Wired control (3m) or Wireless control (20m) -Wired control ONLY applies to pure sine wave inverter |
Note: * The AC output is 1-Phase (L, N, G), NOT Split Phase like USA standard (L1, L2+N, G).
Output Sockets (Optional)
Protection Function
- Low voltage: Alarm at first; voltage continuously reduces, LED Red light on & shut down.
- Over voltage: LED Red light on, shut down.
- Over load: LED Red light on, shut down.
- Over temperature: Alarm at first; temperature continuously rises, LED Red light on & shut down.
- Short circuit: LED Red light on.
- Input reverse polarity: Fuse burn-out.
