700 Watt Off Grid Solar Inverter Charger, 12V/24V
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
700 Watt Off Grid Solar Inverter Charger, 12V/24V
from
$518.69
Ex Tax: $518.69
- Stock: In Stock
- Model: HZTOHZ-OGI-700
- Weight: 1.00
- SKU: HZTOHZ-OGI-700
Low cost 700W (1000VA) off grid solar inverter charger for sale, its compact design makes it easy to install and operate. 12 volt/ 24 volt DC to 110V/ 220V AC for the appliances, can output 50Hz or 60Hz. All in one MPPT charger inverter is designed with AC priority by default, when AC input is present, the battery will be charged first, and the photovoltaic inverter will transfer the input AC to power the load.
Features:
- Pure sine wave output for compatibility with loads of different types.
- Inverter charger has a mode of charging the battery from the AC supply with a charging capability of 0-30A.
- Visualization of operation status of the equipment through a digital LCD.
- Automatically transfer between battery and line modes. It enhances system performance, reliability, and user experience in off-grid applications.
- Pure sine wave output (THD < 3%) for a wide range of applications and harsh environment.
- A wide range of input voltage, accurate output and all automatic voltage stabilization, maximizing flexibility and efficiency.
- Overall protection functions: battery overvoltage protection, battery under voltage protection, overload protection, short circuit protection and over temperature protection.
Details:

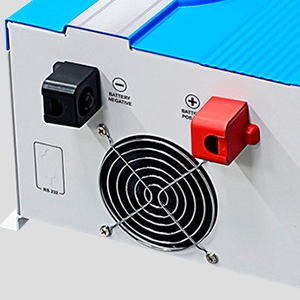

Battery Terminal
Battery positive terminal serves as the power input, receiving direct current (DC) from the battery bank. This connection enables efficient energy transfer from the battery to the inverter, supporting uninterrupted power supply. Conversely, the negative terminal completes the circuit, facilitating the flow of electrons from the battery to the solar inverter.

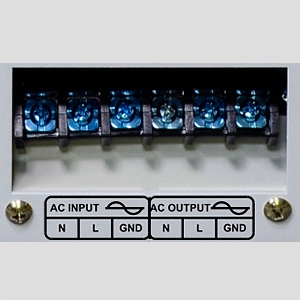

Terminal Block
Providing convenient and secure connections for AC power sources, enhancing installation flexibility in 700 watt off grid inverter. These terminal blocks enhance safety by ensuring proper wiring and minimizing the risk of electrical faults. They offer robustness and reliability, crucial for off-grid applications where consistent power supply is essential.

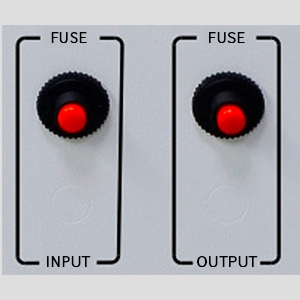

AC Input & Output Insurance
Insurance in off grid power inverter provides protection against power surges and voltage fluctuations, ensuring the safety of sensitive electronic devices. It enhances the efficiency of the inverter by optimizing the conversion process, thus maximizing power output. It also enables seamless integration with various AC power sources.

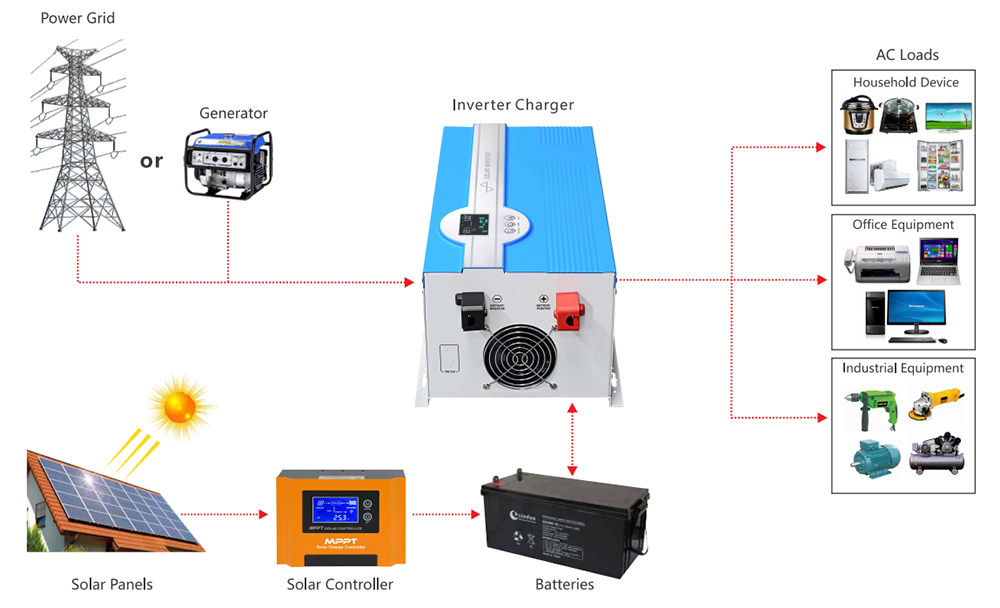

Off Grid Inverter for Solar Panel System:
| Model | HZTOHZ-OGI-700 | ||||||
| Rated capacity | 1000VA | ||||||
| Rated power load | 700W | ||||||
| Size | 520*230*175mm | ||||||
| Net weight | 16kg | ||||||
| Input | DC input | DC 10.5-15V (12V)/ DC 21-30V (24V) | |||||
| AC input | 110V/ 120V/ 220V/ 230V/ 240V AC (Same as the output voltage) | ||||||
| Frequency | 50Hz/ 60Hz±5% (Auto) | ||||||
| Output | Voltage | 110V/ 120V/ 220V/ 230V/ 240V AC | |||||
| Frequency | 50Hz/ 60Hz±5% (Auto) | ||||||
| Wave form | Pure sine wave | ||||||
| Transfer efficiency | ≥85% (full load) | ||||||
| Wave form distortion factor | ≤3% | ||||||
| Output power load factor | ≤0.8 | ||||||
| Protection | Overload capacity | 105-120% at 30s; 120-150% at 10s; >150% at 5s | |||||
| Low voltage | DC 10.5 (12V)/ DC 21 (24V)/ DC 42 (48V)/ DC 84 (96V), Alarm and shut down | ||||||
| High temperature | 85℃, Auto shut down after alarm | ||||||
| Short-circuit | Automatic shut-down | ||||||
| Overvoltage | DC 17V (12V)/ DC 33V (24V)/ DC 66V (48V)/ DC 128V (96V), Auto shut down after alarm | ||||||
| Grid charge | Charging Mode | PV+AC, 0-30A adjustable current (It's the current range for charging the battery under (AC) commercial power preferred mode) | |||||
| Function | Setting | Time & date setting, Contrast, Brightness, Sound, Voltage switch, Grid charger, Clear records, Reset | |||||
| Work mode | Grid fist/ battery first/ standby mode | ||||||
| LCD display | Record (fault record), system information | ||||||
| Others | Switch time | ≤4ms | |||||
| Cooling method | Fan | ||||||
| Noise | <60> | ||||||
| Protection grade | IP30 | ||||||
| Working temperature | -10~50℃ | ||||||
| Environment humidity | 10%~90% (No condensation) | ||||||
| Working elevation | <3000 (="">1000m, derating) | ||||||
| Certificate | CE, RoHS | ||||||
| Warranty period | 12 months | ||||||
