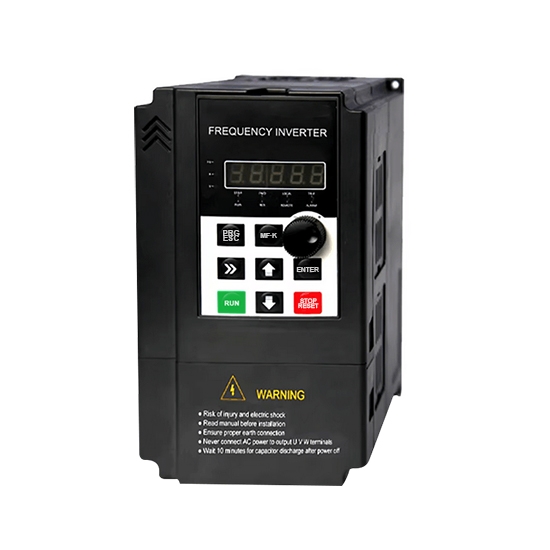

0.75kw Frequency Inverter, Single Phase 120V Input, 1ph/3ph 220V Output
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: GK3000-SP1S1-d75
- Weight: 1.00
- SKU: GK3000-SP1S1-d75
0.75kw frequency drive inverter with V/F control, 120v single phase input to 1ph/3ph 220v output. With an IP20 enclosure rating and air cooling, the frequency inverter runs single-phase and three-phase motors and works at (–10℃, 40℃). Offer RS485 communication interface. Easy to install and operate.
Feature
- The variable frequency inverter has an MPPT algorithm that can quickly track the maximum power point of the photovoltaic cell, with an efficiency of >99%.
- The frequency drive inverter runs automatically around the clock, and can also be completed manually or automatically, realizing "sunrise work, sunset sleep".
- Come with 35 protection functions, a variable frequency drive inverter has automatic short circuit detection after power-on, automatic sleep function, pump dry pump protection, low-frequency protection, overload protection, overcurrent protection, overvoltage protection, undervoltage protection, etc.
- With remote control, the variable frequency drive inverter supports RS232/RS485 protocol, terminal control, and analog control.
Details

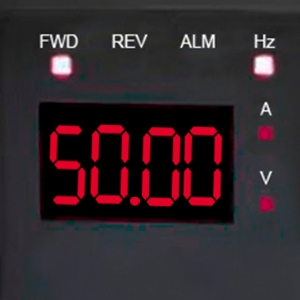

Digital Display
The electronic screen of the 120v input variable frequency inverter displays clear fonts. The indicators of the frequency drive inverter will display the corresponding inverter operating conditions. It can monitor real-time 0.75kw inverter data changes, and improve safety performance.

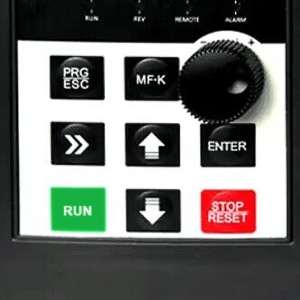

Multi-function Button
Equipped with multi-function keys, inverter has menu/exit, forward, up/down keys, stop/reset, etc. The functional keys of the 1 hp variable frequency drive inverters are very convenient for adjusting the 0.75kw operating frequency inverter to three phase parameters and operating status at any time.

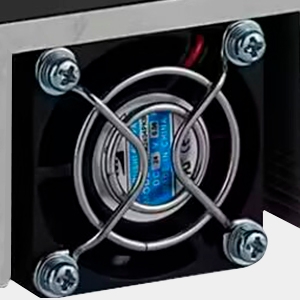

Cooling Fan
The cooling fan installed in the 1 hp variable frequency inverter introduces cooling air into the 0.75kw frequency drive inverter, reducing the temperature of the components, protecting the devices from damage, and prolonging the inverter's service life.
Applications
New Energy Power Generation
Solar Power Generation
Home Appliances
Office Equipment
| Basics | Model | EM15-SP1S1-d75 |
| Capacity | 0.75 kW (1 hp) | |
| Shipping weight | 3 kg | |
| Dimension (W x H x D) | 120*205*166 mm | |
| I/O Feature | Rated current | 4 A |
| Input voltage | 1 phase 120V AC ±15% (Set FE-00=0) | |
| Input frequency | 50Hz/60Hz | |
| Output voltage | 1 phase or 3 phase 220V AC ±15% | |
| Output frequency | 0~320Hz (SFC) | |
| Control Feature | Control mode | V/F control; vector control |
| Communication | Offer RS485 communication interface, support MODBUS-RTU communication protocol | |
| Speed regulation | 1:100 | |
| Start torque | 150% of rating torque at 1 Hz | |
| Speed control accuracy | ≤±0.5% of rating synchronous speed | |
| Frequency precision | Digital setting: max frequency x± 0.01%; | |
| Analog setting: max frequency x± 0.2% | ||
| Frequency resolution | Analog setting: 0.1% of max frequency; | |
| Digital setting: 0.01Hz | ||
| Torque boost | Automatic torque boost, manual torque boost 0.1%~30.0% | |
| Interior PID controller | Be convenient to make closed-loop system | |
| Automatic energy save running | Optimize V/F curve automatically based on the load to realize power save running | |
| Automatic voltage regulation (AVR) | Can keep constant output voltage when power source voltage varies. | |
| Automatic current limiting | Limit running current automatically to avoid frequent over-current which will cause trip | |
| Environment | Enclosure rating | IP 20 |
| Temperature | –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5% | |
| Humidity | smaller than 95%RH, non-condensation | |
| Altitude | ≤1000m; VFD will be derated if above 1000m | |
| Vibration | Less than 5.9 m/s2 (0.6 g) | |
| Cooling | forced air cooling | |
| Store environment | –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight |
