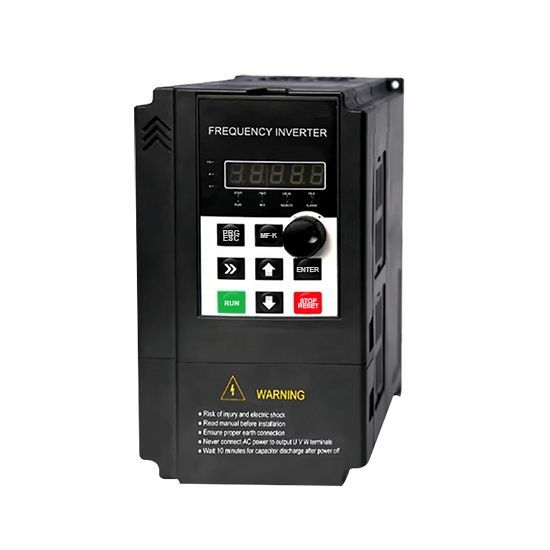

1.5kw Frequency Inverter, Single Phase 120V Input, 1ph/3ph 220V Output
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: EM15-SP1S1-1d5
- Weight: 1.00
- SKU: EM15-SP1S1-1d5
2hp frequency inverters can be used to drive 1ph/3ph AC motor, work at (–10℃, 40℃). With IP20 protection and a force cooling fan, 1.5kw variable drive inverters are usually applied for office, transportation, tourism, and solar power generation. With V/F control and vector control mode, the speed regulation of the frequency inverter reaches 1:100.
Feature
- The variable frequency inverter has an MPPT algorithm that can quickly track the maximum power point of the photovoltaic cell, with an efficiency of >99%.
- The frequency drive inverter runs automatically around the clock, and can also be completed manually or automatically, realizing "sunrise work, sunset sleep".
- Come with 35 protection functions, a variable frequency drive inverter has automatic short circuit detection after power-on, automatic sleep function, pump dry pump protection, low-frequency protection, overload protection, overcurrent protection, overvoltage protection, undervoltage protection, etc.
- With remote control, the variable frequency drive inverter supports RS232/RS485 protocol, terminal control, and analog control.
Details

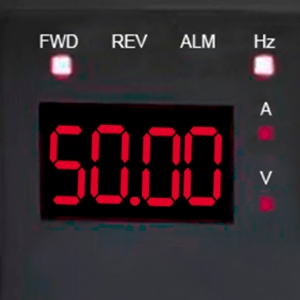

Digital Display
The electronic screen of the 120v input variable frequency inverter displays clear fonts. The indicators of the frequency drive inverter will display the corresponding inverter operating conditions. It can monitor real-time 1.5kw inverter data changes, and improve safety performance.

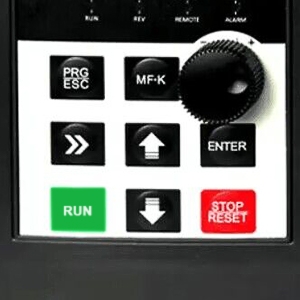

Multi-function Button
Equipped with multi-function keys, inverter has menu/exit, forward, up/down keys, stop/reset, etc. The functional keys of the 2 hp variable frequency inverters are very convenient for adjusting the 1.5kw operating variable frequency drive inverter parameters and operating status at any time.

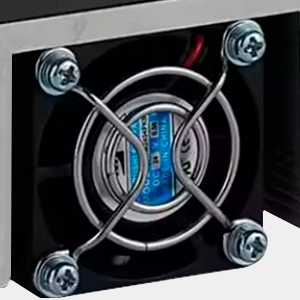

Cooling Fan
The cooling fan installed in the 1.5kw frequency inverter 120v input introduces cooling air into the 1.5kw frequency drive inverter, reducing the temperature of the components, protecting the devices from damage, and prolonging the frequency inverter's service life.
Applications
New Energy Power Generation
Solar Power Generation
Home Appliances
Office Equipment
| Basics | Model | EM15-SP1S1-1d5 |
| Capacity | 1.5 kW (2 hp) | |
| Shipping weight | 3 kg | |
| Dimension (W x H x D) | 120*205*166 mm | |
| I/O Feature | Rated current | 7 A |
| Input voltage | 1 phase 120V AC ±15% (Set FE-00=0) | |
| Input frequency | 50Hz/60Hz | |
| Output voltage | 1 phase or 3 phase 220V AC ±15% | |
| Output frequency | 0~320Hz (SFC) | |
| Control Feature | Control mode | V/F control; vector control |
| Communication | Offer RS485 communication interface, support MODBUS-RTU communication protocol | |
| Speed regulation | 1:100 | |
| Start torque | 150% of rating torque at 1 Hz | |
| Speed control accuracy | ≤±0.5% of rating synchronous speed | |
| Frequency precision | Digital setting: max frequency x± 0.01%; | |
| Analog setting: max frequency x± 0.2% | ||
| Frequency resolution | Analog setting: 0.1% of max frequency; | |
| Digital setting: 0.01Hz | ||
| Torque boost | Automatic torque boost, manual torque boost 0.1%~30.0% | |
| Interior PID controller | Be convenient to make closed-loop system | |
| Automatic energy save running | Optimize V/F curve automatically based on the load to realize power save running | |
| Automatic voltage regulation (AVR) | Can keep constant output voltage when power source voltage varies. | |
| Automatic current limiting | Limit running current automatically to avoid frequent over-current which will cause trip | |
| Environment | Enclosure rating | IP 20 |
| Temperature | –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5% | |
| Humidity | smaller than 95%RH, non-condensation | |
| Altitude | ≤1000m; VFD will be derated if above 1000m | |
| Vibration | Less than 5.9 m/s2 (0.6 g) | |
| Cooling | forced air cooling | |
| Store environment | –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight |
