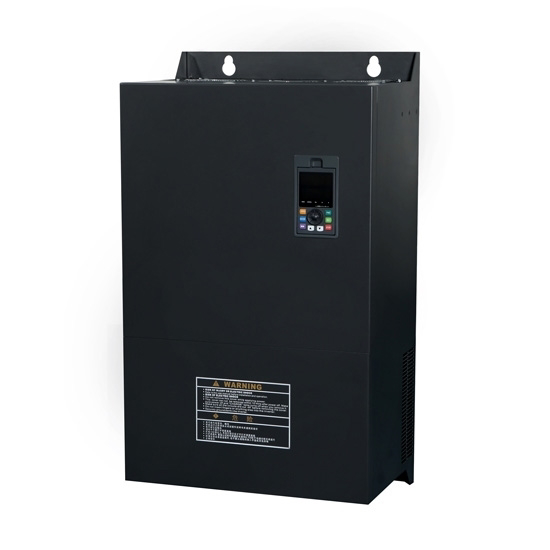

75 KW Frequency Inverter, 3 Phase 220V, 380V, 460V
from
$3,197.41
Ex Tax: $3,197.41
- Stock: In Stock
- Model: GK3000-4T0750G
- Weight: 1.00
- SKU: GK3000-4T0750G
75 kW (100 hp) good performance frequency inverter, three phase 240V, 420V, 440V, 460V, RS485 communication mode, and IP 20 protection rating. Installation includes wall-mounted and floor-mounted. It is usually used for motor drives, renewable energy systems, uninterruptible power supplies (UPS), and commercial applications.
Feature
- 3 phase inverter has multiple-functional performance, such as over current protection, overvoltage protection, undervoltage protection,
overheating protection, and overload protection, etc. - 3 phase frequency drive inverter with RS485 communication mode can work at (–10℃, 40℃),
- The Interior PID controller of 75kw variable frequency inverter is convenient for making a closed-loop system.
- Come with an electronic display, 3 phase inverter has IP20 enclosure rating, stable performance, and easy installation.
Details
Multiple Function Keyboard
The multiple-function keyboard of three phase inverter controls the operation of the variable frequency drive inverter, such as start, stop, and acceleration. The user can press the corresponding buttons to make the 75kw frequency drive inverter work according to set 100hp frequency inverter parameters or control the 3 phase inverter machine's operating speed.
Electronic Screen
The electronic screen of the 75 kW inverter is a key component in the inverter control system, providing users with an intuitive and real-time information display. The digital screen can monitor the operating status of the 100hp frequency inverter in real-time, including input and output voltage, frequency, and current waveform, which helps to detect abnormal conditions in time.
Rugged Casing
The 3 phase frequency drive inverter's rugged casing plays multiple roles in its design. It is not only about protecting the circuits and internal components inside the device but also about the safety, stability, and reliability of the device. The frequency drive inverter not only protects the internal circuits and components but also provides safety protection.
Applications
Car Manufacturer
Ship Operation
Energy Generation
Building Construction
| Basics | Model | GK3000-4T0750G/GK3000-2T0750G |
| Capacity | 75 kW (100 hp) | |
| Shipping weight | 50 kg | |
| Dimension | 618*398*306 mm | |
| I/O Feature | Rated current | 152A at 380V ~ 480V, 304A at 220V ~ 240V |
| Input voltage | 3 phase 230V /400V /460V AC ±15% (Optional) | |
| Input frequency | 50Hz/ 60Hz | |
| Output voltage | 3 phase AC 0~input voltage | |
| Output frequency | 0~1000Hz | |
| Over load capacity | 150% of rated current for 1 minute, 180% of rated current for 3 seconds | |
| Control Feature | Control mode | V/F control; Sensorless vector control; |
| Communication | RS485 | |
| Speed regulation | 1:100 | |
| Start torque | 150% of rating torque at 1 Hz | |
| Speed control accuracy | ≤±0.5% of rating synchronous speed | |
| Frequency precision | Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2% | |
| Frequency resolution | Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz | |
| Torque boost | Automatic torque boost, manual torque boost 0.1%~30.0% | |
| Interior PID controller | Be convenient to make closed-loop system | |
| Automatic energy save running | Optimize V/F curve automatically based on the load to realize power save running | |
| Automatic voltage regulation (AVR) | Can keep constant output voltage when power source voltage varies. | |
| Automatic current limiting | Limit running current automatically to avoid frequent over-current which will cause trip | |
| Environment | Enclosure rating | IP 20 |
| Temperature | –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5% | |
| Humidity | 5%-95%, without condensation | |
| Altitude | ≤1000m; VFD will be derated if above 1000m | |
| Impingement and oscillation | Normal running: 5.9m/s2 (0.6g); Transportation: 15m/s2 (1.5g) | |
| Store environment | –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight |
