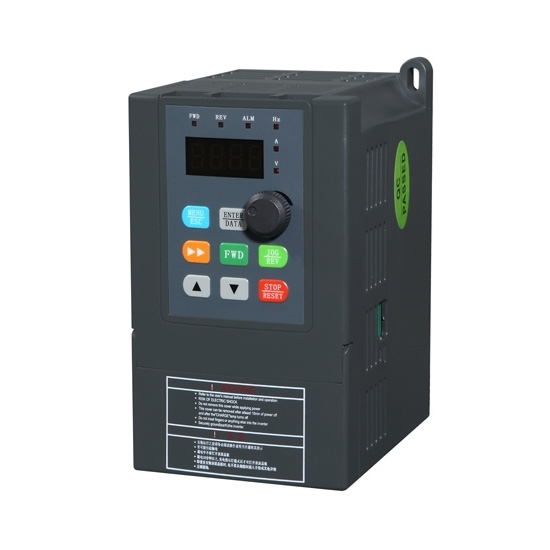

1.5 KW Single Phase To Three Phase Frequency Inverter
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: GK3000-2S0015
- Weight: 1.00
- SKU: GK3000-2S0015
1.5kW variable frequency drive single phase to 3 phase, 2 hp vfd inverter, apply for AC motor speed controls. IP20 enclosure protection, RS485 communication, working temperature (–10℃, 40℃), High accuracy, and good performance. The variable frequency drive inverters are very useful in some single-phase power supply situations, such as air conditioners, refrigerators, washing machines, and other electrical appliances in the home.
Feature
- The single phase to 3 phase inverter with RS485 communication mode, speed regulation reach 1:100, work at (–10℃, 40℃).
- The variable frequency drive single phase to 3 phase has high-frequency precision. Digital setting: max frequency ± 0.01%; Analog setting: max frequency ± 0.2%.
- Equipped with a digital display, the 1.5kw inverter can show real-time monitoring of the operation situation.
- With a cooling fan, the Interior PID controller of the frequency drive inverter is convenient for making a closed-loop system.
Details

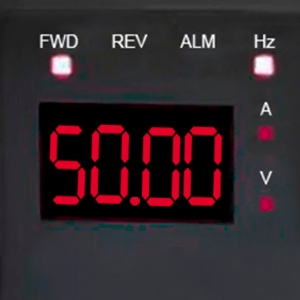

Digital Display
The electronic screen of the inverter from single phase to three phase displays clear fonts. The digital indicators of the variable frequency inverter will display the corresponding inverter operating conditions. It can monitor real-time inverter data changes, and improve safety performance.

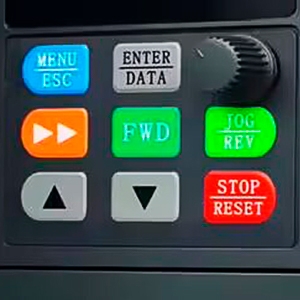

Multi-function Button
Equipped with multi-function keys, the 1.5kw single phase to 3 phase vfd has menu/exit, up/down keys, forward and stop/reset. The functional keys of the inverter converting single phase to three phase are very convenient for adjusting the operating 1.5kw frequency drive inverter's parameters and operating status at any time.

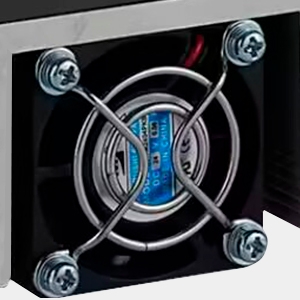

Cooling Fan
The intelligent cooling fan installed in the 2hp variable frequency drive single phase to 3 phase introduces cooling air into the frequency inverter, which reduces the internal inverter component temperature, protects the devices from damage, and prolongs the vfd inverter's service life.
Applications
Medical Equipment
Solar Power Generation
Electric Vehicle Charging
Office Equipment
| Basics | Model | GK3000-2S0015 |
| Capacity | 1.5 kW (2 hp) | |
| Shipping weight | 2 kg | |
| Dimension | 142*85*113 mm | |
| I/O Feature | Rated current | 7 A |
| Input voltage | 1 phase 220V AC ±15% | |
| Input frequency | 50Hz/ 60Hz | |
| Output voltage | 3 phase AC 0~input voltage | |
| Output frequency | 0Hz~1000Hz | |
| Over load capacity | 150% of rated current for 1 minute, 180% of rated current for 3 seconds | |
| Control Feature | Control mode | V/F, Sensorless vector control (SVC), Speed sensor vector control (FVC) |
| Communication | RS485 | |
| Speed regulation | 1:100 | |
| Start torque | 150% of rating torque at 1 Hz | |
| Speed control accuracy | ≤±0.5% of rating synchronous speed | |
| Frequency precision | Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2% | |
| Frequency resolution | Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz | |
| Torque boost | Automatic torque boost, manual torque boost 0.1%~30.0% | |
| Interior PID controller | Be convenient to make closed-loop system | |
| Automatic energy save running | Optimize V/F curve automatically based on the load to realize power save running | |
| Automatic voltage regulation (AVR) | Can keep constant output voltage when power source voltage varies. | |
| Automatic current limiting | Limit running current automatically to avoid frequent over-current which will cause trip | |
| Environment | Enclosure rating | IP 20 |
| Temperature | –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5% | |
| Humidity | 5%-95%, without condensation | |
| Altitude | ≤1000m; VFD will be derated if above 1000m | |
| Impingement and oscillation | Normal running:<5.9m 2="" (0.6g);=""><15m 2=""> | |
| Store environment | –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight |
