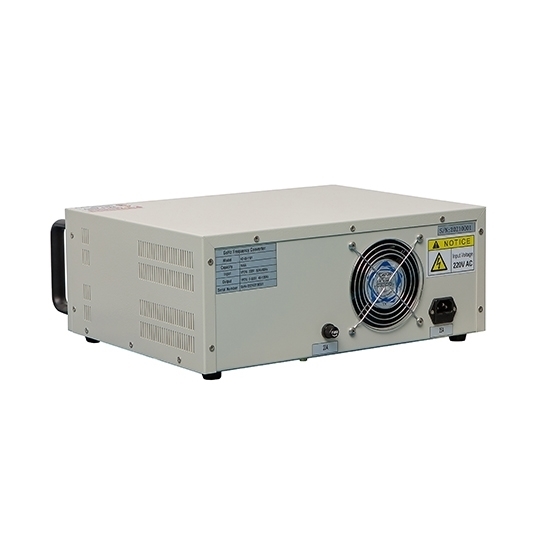

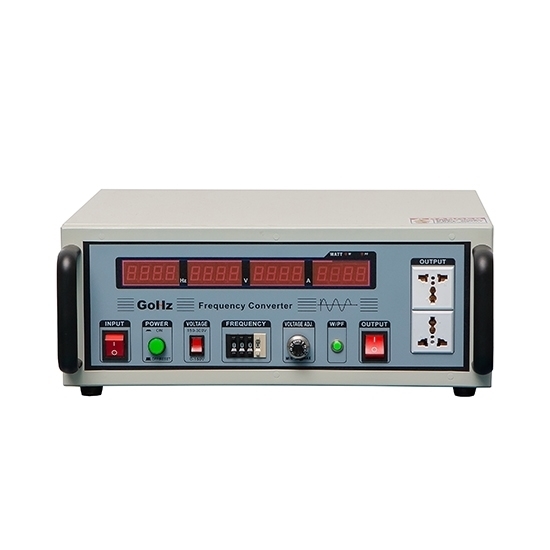

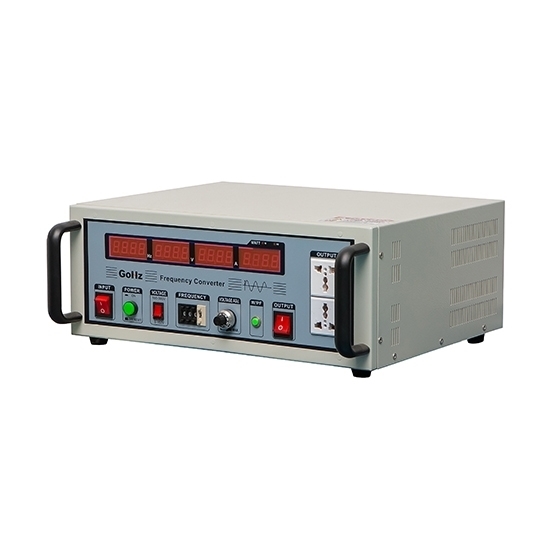

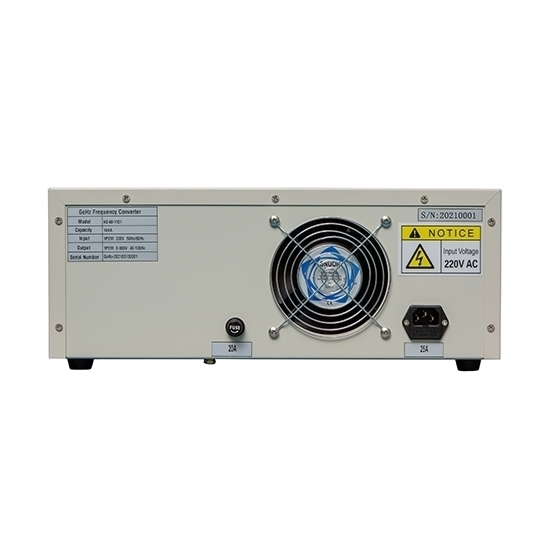

1 KVA Frequency Converter 60Hz To 50Hz

0 reviews • Write a review

from Save -14%

$1,549.97

$1,799.00

Ex Tax: $1,549.97

Stock: In Stock
Model: HZTOHZ-G2
Weight: 1.00
SKU: HZTOHZ-G2

Available Options

Textarea

Output Frequency (Hz)

Input Voltage (Single Phase)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Tips: Where is 60 Hz (Hertz) or 50 Hz (Hertz) being used?
The US is not the only country 60 Hz is used. It is used throughout North America, much of Mexico, parts of Central and South America, and parts of Japan. This was not always the standard in the US, either. As late as the 1940's, Southern California Edison used 50 Hz, and 25 Hz systems existed in Ohio. Several other frequencies were used, too. Standardization on 60 Hz didn't come about quickly. There's a similar story behind the adoption of 50 Hz in most of the rest of the world, with several different frequencies having been used in Europe before they standardized on 50 Hz. Most of Asia followed Europe, because they adopted similar equipment and standards, especially everywhere the British Empire went (India, Pakistan, China, Sri Lanka, Malaysia). Other countries that wanted to interconnect with these early systems would have had an incentive to choose the same frequencies.

Builder in Product TAB

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules. Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Model	HZ-60-1101
Dimension	420330180mm
Weight	45 kg
Input	Voltage	1 Phase 2 Wire: 110V/120V, 220V/230V/240V ± 10% (option *)
Input	Frequency	50 Hz, 60 Hz or 400 Hz ± 5%
Output	Voltage, current	120V Setting (Low grade): 0-150V, 8.4A
	Voltage, current	240V Setting 0-300V (High grade): 0-300V, 4.2A
	Load stabilization Rate	≤±1%
	Frequency	50Hz, 60Hz up to 400Hz adjustable Note: -When the output is 400Hz, the load capacity can only reach 50% of the rated capacity. -When the output is ≤120Hz, the load capacity can reach 100% of the rated value. -You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
	Frequency Stability	≤±0.01%
	Harmonic Distortion	Pure Sine Wave ≤2%
	Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
	Voltmeter	4 digit, digital voltage meter, resolution 0.1V
	Ammeter	4 digit, digital ammeter, resolution 0.1A
	Watt meter	4 digit, digital Watt meter, resolution 0.1W
Protection	With overload, short circuit, over temperature
Protection	Instantaneous power failure protection and alarm device
Working Environment	Temperature	0 - 40 deg.℃
Working Environment	Humidity	0 - 90% (Non condensation)
Warranty	18 months

Frequency Converters

Frequency Converters

HZTOHZ

1 KVA Frequency Converter 60Hz To 50Hz
