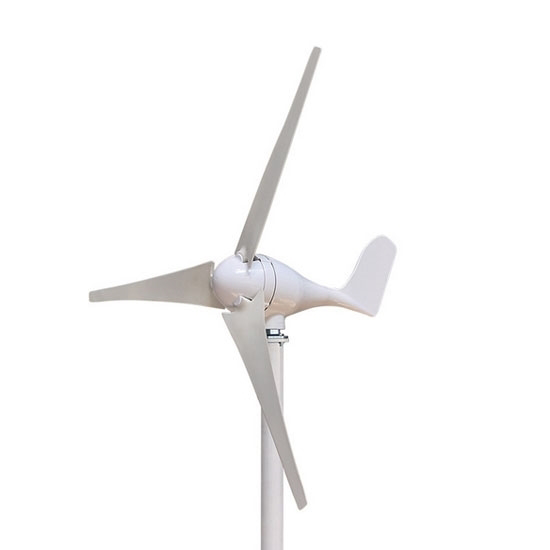

800W Horizontal Axis Wind Turbine, 24V/48V
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: HZTOHZ-WT-800M5
- Weight: 1.00
- SKU: HZTOHZ-WT-800M5
High-quality performance wind turbine rated power 800 watts, wind turbine blades materials are reinforced glass fiber nylon fiber and size 1.95 meter, easy to install, safe to use, it is a good choice of home wind turbines.
Feature:
- Low starting wind speed, beautiful appearance, and low running vibration.
- Using humanized flange installation design, convenient installation, and maintenance.
- The starting speed is slow, and 3 blades can be selected in different wind speed regions, and the wind energy utilization rate is high.
- The blade adopts the new technology of precision injection molding, with optimized aerodynamic shape and structure, which improves the wind energy utilization rate and annual output.
- Cast aluminum alloy body, can rotate 2 bearings, can resist strong wind, safer operation.
- Patented permanent magnet alternator with special stator, which effectively reduces the torque and matches the wind turbine with the generator to ensure the performance of the whole system.
Specification:
| Model | HZTOHZ-WT-800M5 |
| Matched Controller Model | HZTOHZ-WTCMPPT-800 (Click it to the controller page) |
| Rated Power | 800W |
| Maximum Power | 850W |
| Rated Voltage | 24V/48V |
| Start-Up Wind Speed | 2.5 m/s |
| Rated Wind Speed | 11 m/s |
| Survival Wind Speed | 40 m/s |
| Wheel Diameter | 1.95m |
| Blades Number | 3 |
| Length of Blades | 0.95m |
| Blades Material | Reinforced Glass Fiber |
| Generator | Three-Phase Permanent Magnet AC Generator |
| Magnetic Steel | NdFeB |
| Generator Case | Casting Aluminum Alloy |
| Controller System | Electromagnet / Wind Wheel Yaw |
| Speed Regulation | Automatically Adjust Windard |
| Installation Flange | DN40 |
| Working Temperature | -40°C~80°C |
| Gross Weight | 31kg |
| Top Net Weight | 25kg |
| Package Dimension | 1320*395*300mm |

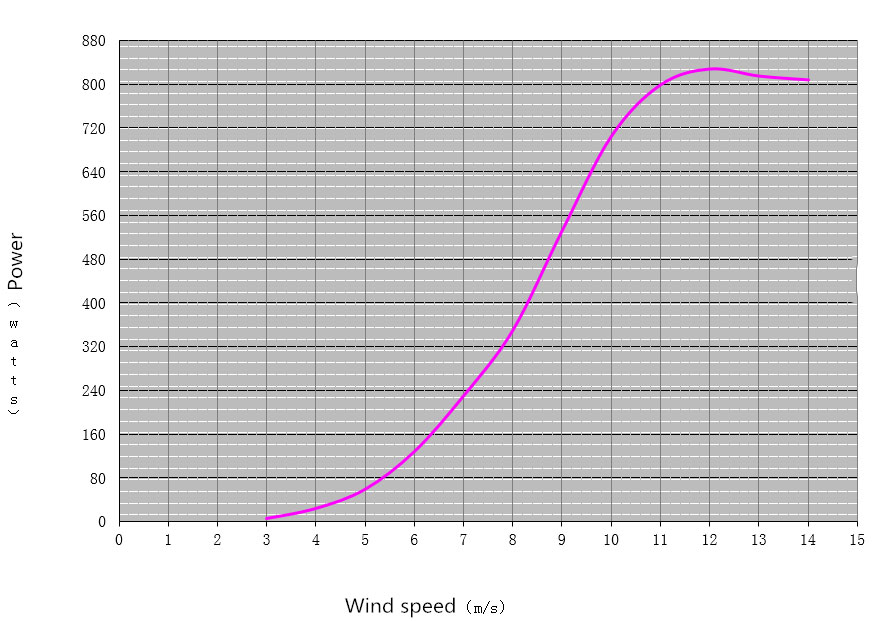

800W Wind Turbine Power Curve:

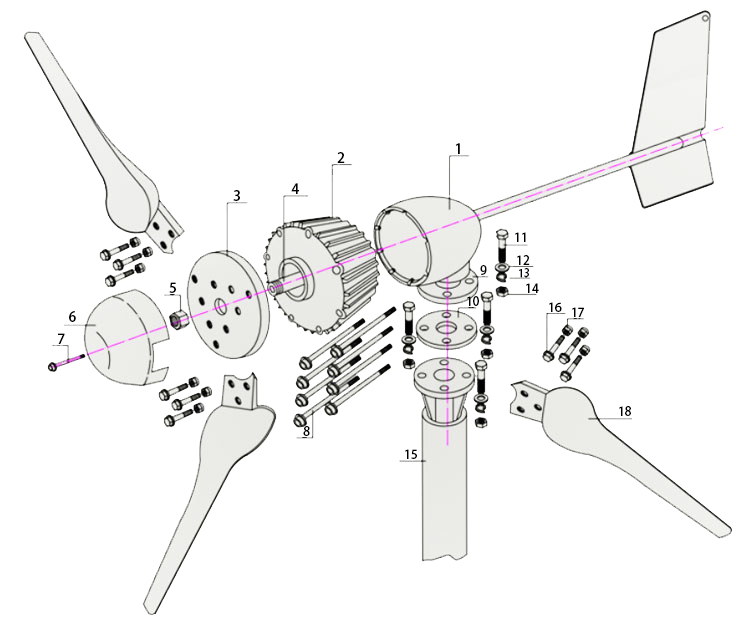

800W Wind Turbine (Flange Seat) Exploded View:
1. The body behind the wind wheel, 2. Front body of the wind wheel, 3. Wind wheel hub, 4. Wind turbine shaft 5. Anti-loose nut, 6. Fairing, 7. Shell locking bolt, 8. Body locking bolt, 9. Wind turbine flange seat, 10. Rubber pad, 11 Bolt, 12. Flat washer, 13. Elastic washer, 14. Nut, 15. Steel tube bracket (tower), 16. Lock nut, 17. Stainless steel screw, 18. Wind wheel.

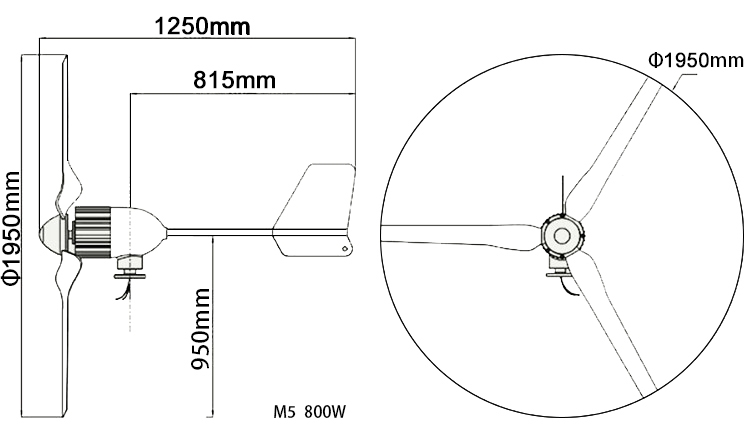

Wind Turbine Dimensions (Unit=mm)
Tips: Homemade wind turbine
- Rotor. The permanent magnet is fixed on the rotor shaft and its magnetic pole pairs are symmetrical and round. Generally, the strength of the magnetic field, rotor speed, and the number of magnetic pole pairs affect the voltage.
- The stator, the wire winding on the stator core, single direction if use similar market motor winding method is different, now is the most simple, for example, the diameter of the wire will affect the power current, namely the power of the generator voltage winding length and the number of turns, the other set of rotor material can require the use of magnetic materials, the most common is iron, but the easiest way to get best use iron overlay, stator spacing influence permeability performance, namely generator voltage and power will have influence, should not be more than 0.5 mm, this basic form a generator.
- By using power to rotate the rotor (the speed of rotation depends on the voltage), AC voltage can be obtained at both ends of the wire.
