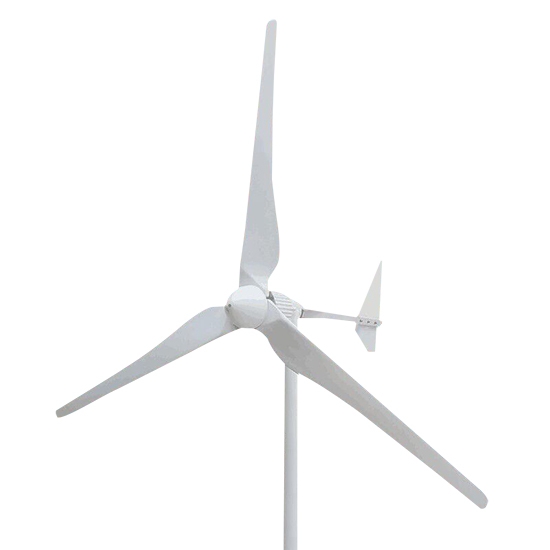

1.5kW Horizontal Axis Wind Turbine, 48V-240V
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: HZTOHZ-WT-L1-1500
- Weight: 1.00
- SKU: HZTOHZ-WT-L1-1500
A 1.5kW horizontal axis wind turbine is a small-scale wind energy system designed to generate electricity. It features a rotor with blades that rotate around a horizontal axis, aligned with the wind direction. The 1.5kW rating indicates its maximum power output of 1.5 kilowatts under optimal wind conditions. These wind turbines are typically used for residential or small commercial applications, providing renewable energy and reducing reliance on grid electricity. Wind mill turbines are efficient in converting wind energy into electrical power and are mounted on towers to capture higher, more consistent wind speeds.
Features:
- Low starting wind speed, beautiful appearance, and low running vibration.
- This 1500W HAWT wind turbine uses a humanized flange installation design, convenient installation and maintenance.
- The blade adopts the new technology of precision injection molding, with optimized aerodynamic shape and structure, which improves the wind energy utilization rate and annual output.
- Patented permanent magnet alternator with special stator, which effectively reduces the torque and matches the wind turbine with the generator to ensure the performance of the whole system.
Details:

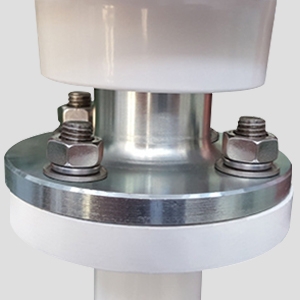

Flange Design
It ensures better load distribution, reducing stress concentrations, and increasing the overall lifespan of the 1.5kW horizontal axis wind turbine. Flanges allow for easier assembly and maintenance, as they enable precise alignment of parts. This design also improves the stability of the turbine, particularly under high wind conditions, by securing the critical joints more effectively.

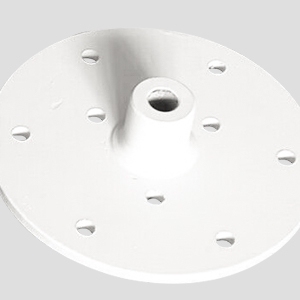

Surface Oxidation Treatment
It enhances corrosion resistance, particularly in harsh environments like offshore wind farms, extending the hub's lifespan. The treatment improves the surface hardness, reducing wear and tear from mechanical stress. It also enhances adhesion for subsequent coatings. Additionally, surface oxidation can reduce friction between moving parts, improving overall wind turbine efficiency.

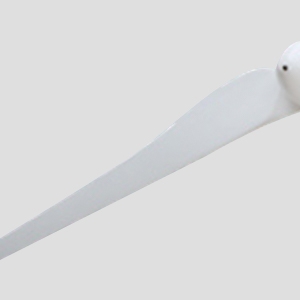

Solid Blade
The most significant is better balance and stability, reducing vibration and mechanical stress, leading to a longer 1500 watt HAWT wind turbine lifespan. They also have a more consistent and smoother rotation, optimizing energy capture and efficiency. Three blades offer a good balance between aerodynamics and material costs, achieving high power output with relatively low noise.

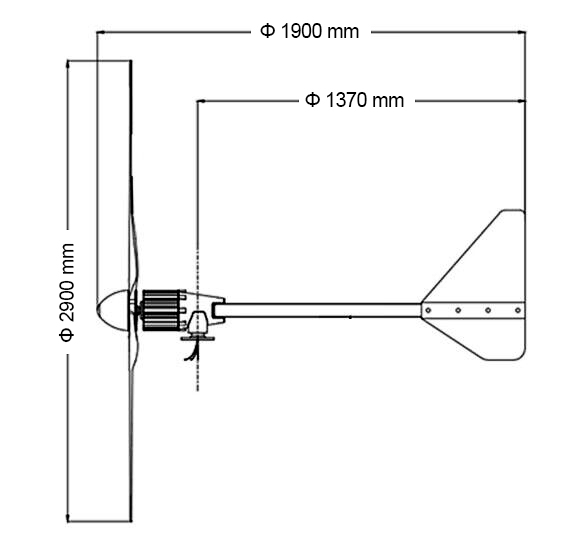

1.5kW HWAT Turbine Dimension:

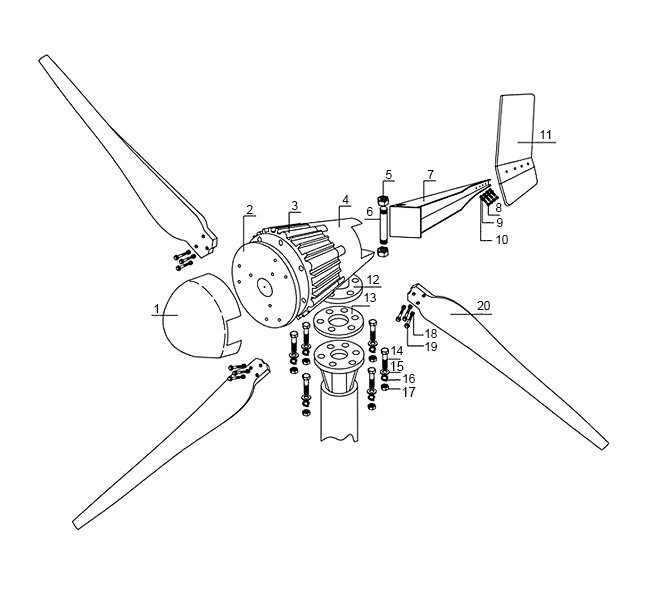

1.5kW HWAT Turbine Decomposition Diagram:
1. Fairing; 2. Wind turbine hub; 3. Front turbine body; 4. Rear turbine body; 5. Anti-loose nut; 6. Stern rudder fastening tube; 7. Rear control; 8. blot; 9. Flat washer; 10. Nut; 11. Tail plate; 12. Wind turbine flange seat; 13. Rubber gasket; 14. bolt; 15. Flat washer; 16. Resilient pad; 17. Nut; 18. Anti-loose nut; 19. Stainless screw; 20. Wind turbine blade
Applications:

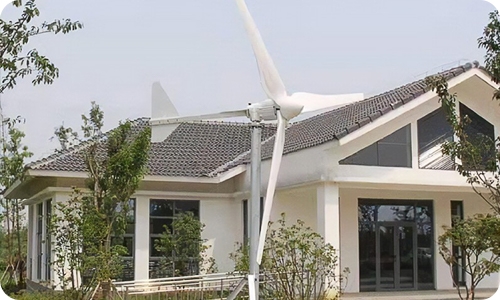

Home

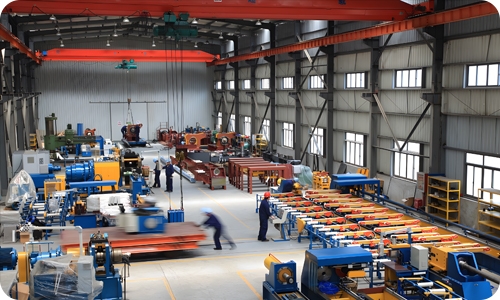

Industry Field

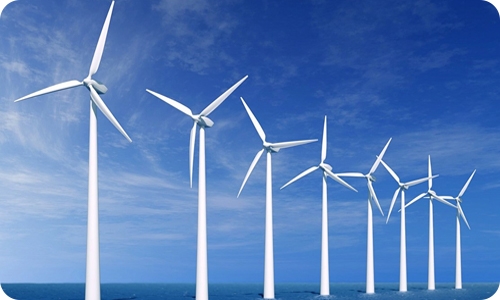

Offshore Wind Farm

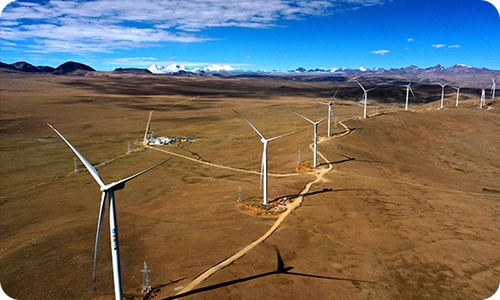

Remote Area
| Model | HZTOHZ-WT-L1-1500 |
| Rated power | 1500W |
| Maximum power | 1700W |
| Rated voltage | 48V/96V/120V/220V/240V |
| Start-up wind speed | 2m/s |
| Rated wind speed | 11m/s |
| Safe wind speed | ≤50m/s |
| Fan blade diameter | 2.9m |
| Number of blades | 3 |
| Blade material | reinforced FRP |
| Fuselage material | reinforced die-cast aluminum |
| Magnetic steel material | NdFeB |
| Generator type | 3-phase AC permanent magnet synchronous generator |
| Control mode | electromagnetic brakes |
| Wind direction adjustment | automatically adjusts the windward angle |
| Protection level | IP54 |
| Net weight | 53kg |
