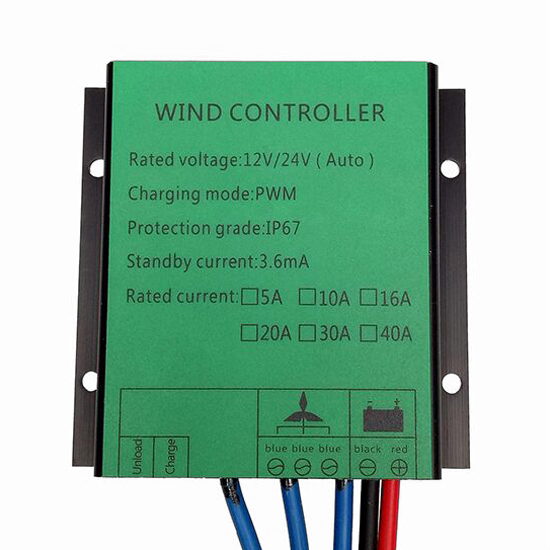

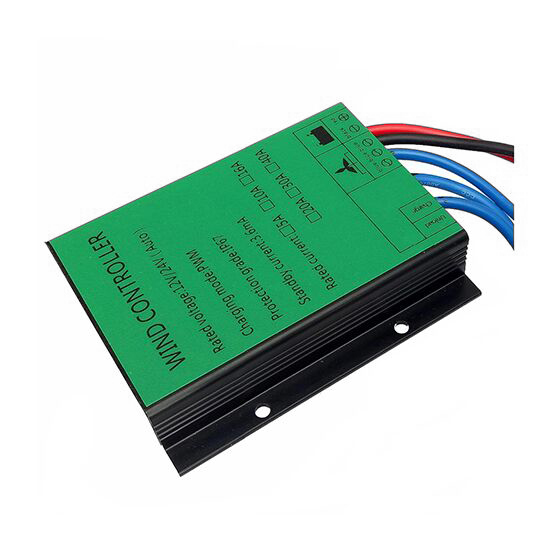

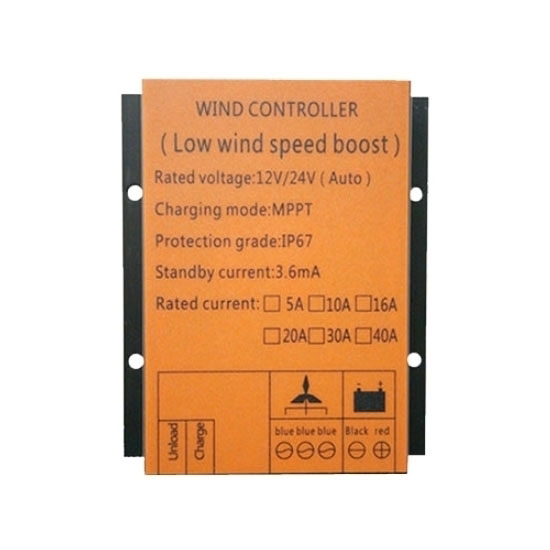

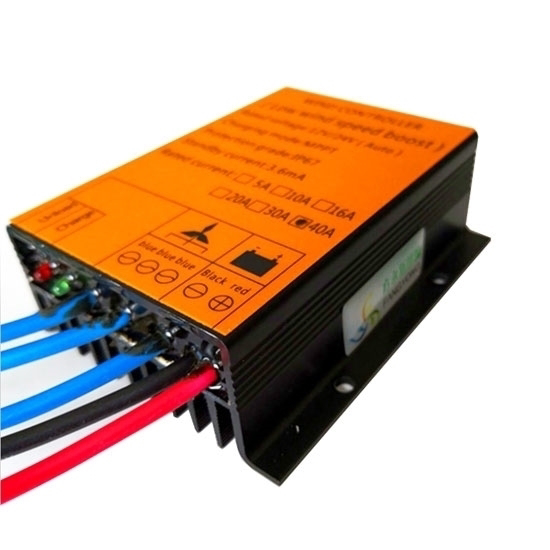

1000W Wind Turbine MPPT Charge Controller, 12V/24V
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: HZTOHZ-WTCMPPT-1000
- Weight: 1.00
- SKU: HZTOHZ-WTCMPPT-1000
Buy high quality wind generator charge controller, mppt control, 600 watt, rated voltage can choose 12 volt or 24 volt, diode display, save money by selling directly to manufacturers.
Note: The controller needs to be selected according to the power of the wind turbine and the battery voltage. Max voltage setup: 12.4V for 12V batteries, 29V for 24V batteries, and 58 for 48V batteries.
Specification:
| Model | HZTOHZ-WTCMPPT-1000 |
| Rated Voltage | 24V |
| Wind Generator Rated Power | 1000W |
| Protection | Overcharge, overdischarge, reverse connnection of batteries,overloading, lighting, current control, automatic braking |
| Function | MPPT Charging |
| Unloading Way | PWM electrodeless and noiseless unloading |
| Working Temperature | -20~+60°C 35~85%RH |
| Dimension | 100*80*15mm |
| Net Weight | 0.4kg |
Features:
1. High quality technical components ensure the stability and reliability of the wind turbine controller.
2. Waterproof and dustproof, the controller can be used in various outdoor environments.
3. Voltage/current control charging ensures that the battery is always charged.
4. The MPPT charging effect is to collect electrical energy from the generator and charge the battery.
5. Use PWM to unload excess electron energy to protect the battery and ensure the safety of the wind generator.

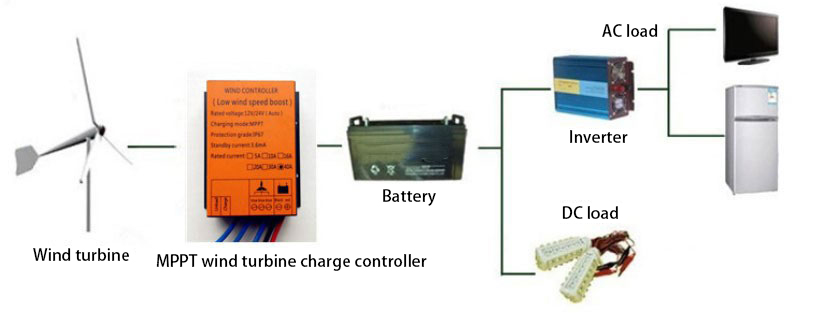

Wind Power System Connection Diagram:
Tips: What should you pay attention to?
- It is strictly prohibited to place any flammable, explosive and dangerous materials around the controller.
- Please keep all symbols on the controller intact, and keep children away from the scene to avoid accidents.
- Do not open the case of the product itself.
- When installing the device, make sure to place the terminal block on the bottom of the device to prevent rainwater from pouring into the case.
