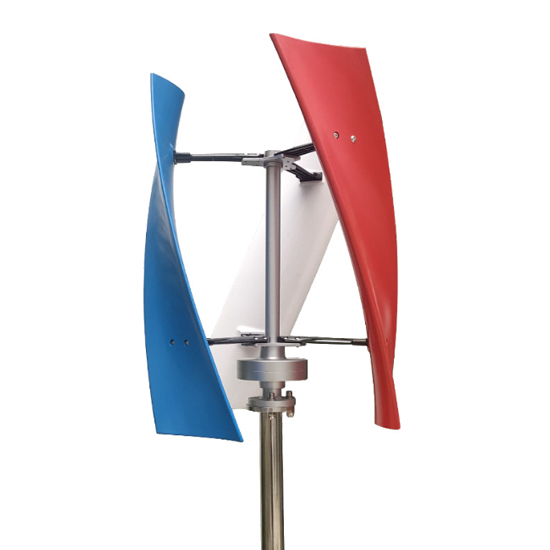

100W Vertical Axis Wind Turbine, 12V/24V
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: HZTOHZ-VAWT-X3-100
- Weight: 1.00
- SKU: HZTOHZ-VAWT-X3-100
Buy a cheap 100W vertical axis wind turbine, available in 12V or 24V ratings. Small vertical turbine generator with 3 blades for higher power production. ATO vertical axis wind turbines can be used in marine, marine, street lighting, and household lighting.
Specification
| Model | HZTOHZ-VAWT-X3-100 |
| Rated Power | 100W |
| Rated Voltage | 12V/24V |
| With Controller | Yes |
| Start-Up Wind Speed | 2m/s |
| Rated Wind Speed | 12m/s |
| Survival Wind Speed | 50m/s |
| Wind Wheel Diameter/Height | 0.55m/0.75m |
| Number of Blades | 3 |
| Blades Material | Nylon |
| Fuselage Material | Aluminum alloy |
| Magnetic Steel | NdFeB |
| Generator Type | Three-phase AC permanent magnetically suspended generators |
| Controller System | Electromagnetic brakes |
| Speed Regulation | 360° Automatically Adjust Windard |
| Installation Flange | DN20 |
| Degree of protection | IP54 |
| Gross Weight | 9kg |
| Top Net Weight | 10kg |
| Dimension | 860*380*200mm |

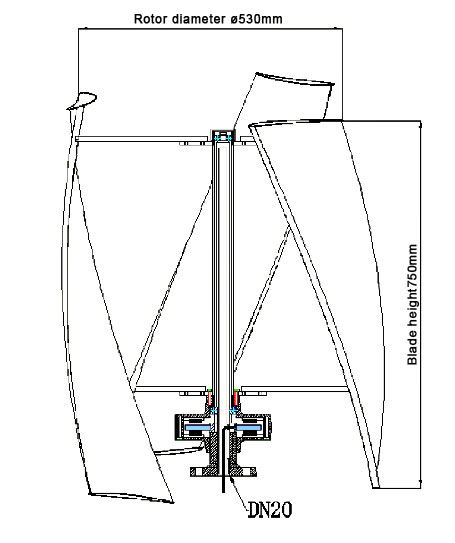

Dimension (Unit: mm)

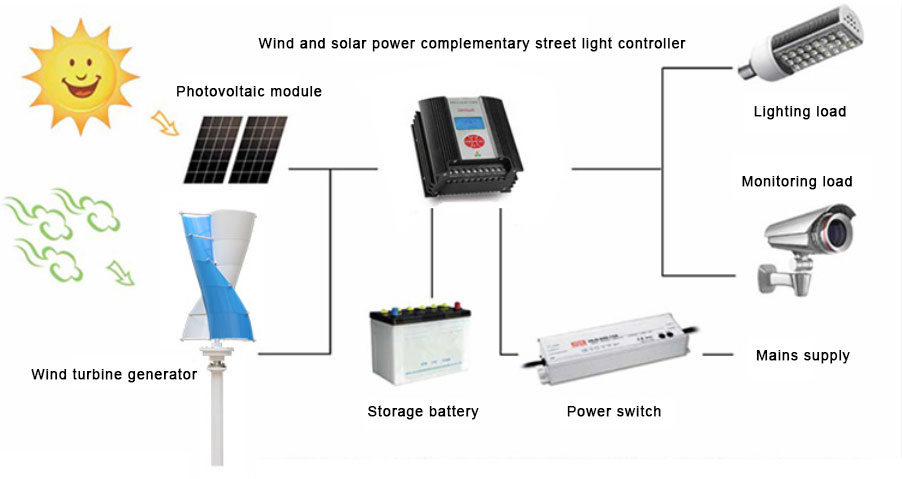

Applications
The battery is charged by the wind turbine and solar panels through the controller, and the DC output port of the controller directly supplies power to the DC load. On days without wind or light, the power output by the wind turbine and solar panels is not enough to charge the battery, which can cause the battery to be under-voltage. In this case, the controller output dry contact control signal automatically switches to the grid power to supply the load.
Tips: How to install a vertical wind turbine?
- Open the package of the vertical axis wind turbine you have received, check for bumps, and try to pivot the spiral blades, they turn easily without obstruction. If there are any problems, please return to us in time.
- Connect the three AC wires of the flange of the vertical axis wind turbine to the transmission cable, with each pair of wires glued to a length of not less than 30 mm and taped at the 100 mm end of the connection.
- Align the flange holes of the vertical axis wind turbine with the flange holes on the tower pole, apply flat washers and elastic ring,s and tighten the locking screws. After the sex ring, tighten the locking nut.
- Connect the cable from the vertical axis wind turbine to the control and connect the battery to the control before wiring.
