1.5 Hp Vertical Centrifugal Pump
from
$1,054.74
Ex Tax: $1,054.74
- Stock: In Stock
- Model: HZTOHZ-VCP-1100W
- Weight: 1.00
- SKU: HZTOHZ-VCP-1100W

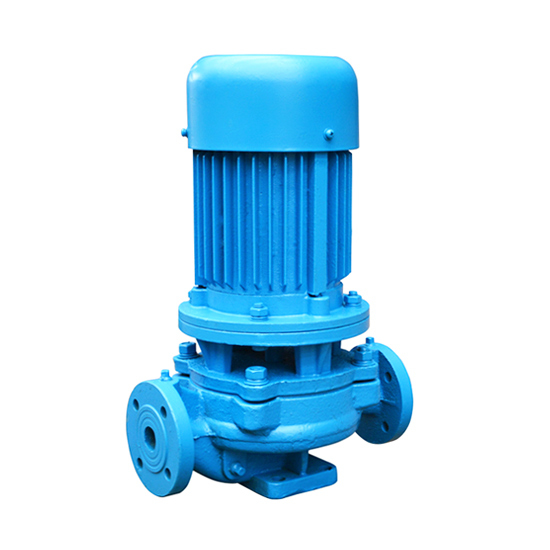

1.5 hp vertical centrifugal pump with 4.9m3/h maximum flow, 29m maximum head, and 25mm diameter of inlet and outlet.
Features:
- The centrifugal pump has a vertical structure. The diameter of the inlet and outlet are the same. The inlet and outlet are on the same center line so that the vertical centrifugal pump can be installed in the pipeline like a valve. If a protective cover is added, it can be used in the open air.
- It is easy to install and maintain. There is no need to dismantle the pipeline system, just lift off the conjunction flat nut of the vertical pump. Then, all the rotor parts can be taken out.
- A vertical centrifugal pump can operate in series or parallel connection according to the requirements of flow and head.
- A vertical pump can be installed vertically or horizontally according to the requirement of the pipeline system.
Specifications:
| Model | HZTOHZ-VCP-25-160A | ||
| Weight | 65kg | ||
| Size | 300*270*415mm | ||
| Power | 1.5 hp (1.1kW) | ||
| Phase | 3 phase | ||
| Input voltage * | AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V | ||
| Input frequency * | 50Hz, 60Hz | ||
| Flow (min. flow to max. flow) | 2.6m3/h (11.4 gpm, American system) | 3.7m3/h (16.3 gpm, American system) | 4.9m3/h (21.6 gpm, American system) |
| Head (max. head to min. head) | 29m (95ft) | 28m (92ft) | 26m (85ft) |
| Efficiency | 27% | 31% | 29% |
| Inlet diameter | 25mm (1 inch) | ||
| Outlet diameter | 25mm (1 inch) | ||
| Installation mode | Vertical type or horizontal type | ||
| Nominal diameter of impeller | 160mm | ||
| Pump type | Booster pump | ||
| Number of stages | Single stage | ||
| Motor type | Y/Y2 series motor | ||
| Motor speed | 2900rpm | ||
| Impeller material | 304/316 stainless steel | ||
| Seal material | 304 stainless steel, tungsten carbide, fluorine rubber | ||
| Inlet max. pressure | 1MPa (145 psi) | ||
| (NPSH)r | 2.3m | ||
| Usage | Water or liquids compatible with pump component materials. 1. The volume of solid particles should be less than 0.1% in unit volume, and the granularity should be less than 0.2mm. 2. The temperature should be lower than 60℃. | ||
| Environment | Temperature: ＜40℃, humidity: ＜95%, altitude＜1000m | ||
| Warranty | 12 months | ||

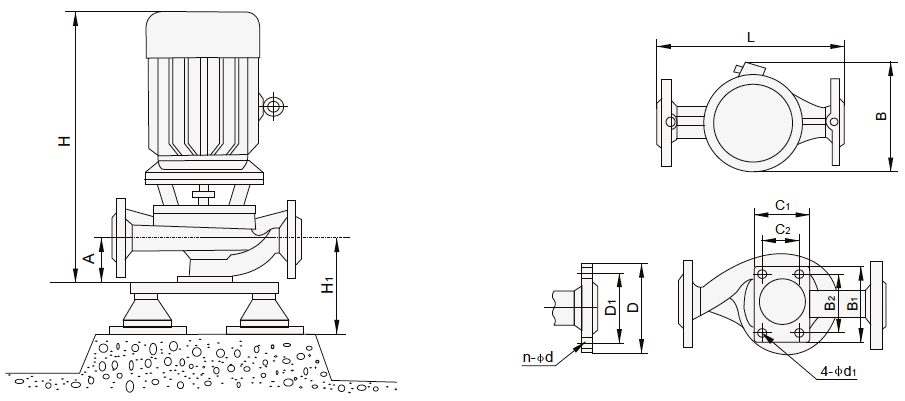

Vertical centrifugal pump dimension (unit: mm):
| Boundary dimension | Installation dimension | Flange dimension | |||||||
| L | B | H | C1*B1 | A | C2*B2 | 4-Φd1 | ΦD | ΦD1 | n-Φd |
| 300 | 270 | 415 | 90*130 | 70 | 60*100 | 4-Φ14 | Φ115 | Φ85 | 4-Φ14 |
Tips: How to install the centrifugal pump on the high-rise building correctly?
If the installation site of the centrifugal pump belongs to a higher level of the high-rise building, and the water pressure is rather low, it shall consider installing the booster pump in the tap water pipe. In selecting the water pump and installing it, it shall consider that the water pump interface should be consistent with the tap water interface.
- Centrifugal pump installation position
The booster pump is usually installed behind the home water meter, that is, the water pump installation position is after the water meter position, or it can be installed in front of the water inlet of the gas water heater. When installing in the hot water outlet, a hot water pump with the temperature resistance above 85 ℃ should be selected. - Centrifugal pump installation
Remove the junction pipe connecting the cold water valve and the water heater inlet, install the pressurizing pump at the appropriate position on the lower right side of the water heater (fix two self-tapping screws on the wall), and connect the water pump to the water heater with the chill water pipeline of the heater with the metal hose or aluminum plastic pipe. The external water pressure switch is generally connected to the inlet section of the pressurizing pump, and the direction of the arrow should be pointed out according to the instructions. The automatic pressurizing pump does not require an external water pressure switch. - Matters need attention in installing the centrifugal pump
a. Before installation, it is required to carefully read the installation and operation instruction manual, and install as the manual requirement.
b. Check the power data on the pump nameplate, confirm the pump is applicable to the power source to be used, and ensure the reliable earth of the socket.
c. Only when the power source is turned off, the connection can be made in the wiring box of the water pump.
d. It is better to install the hot water centrifugal pump on the pipes with liquid flowing upwards.
