10 Hp Horizontal Centrifugal Pump
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: HZTOHZ-HCP-7500W
- Weight: 1.00
- SKU: HZTOHZ-HCP-7500W

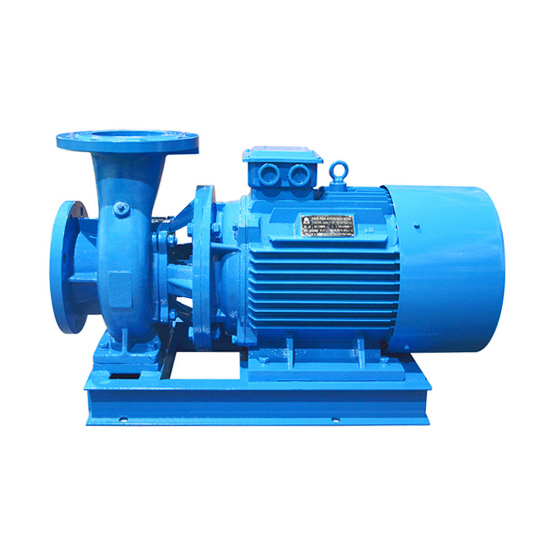

10 hp horizontal centrifugal pump with 8.3m3/h maximum flow, 82m maximum head, and 40mm diameter of inlet and outlet.
Features:
- The centrifugal pump has a horizontal structure. The diameter of the inlet and outlet are the same. If a protective cover is added, it can be used in the open air.
- It is easy to install and maintain. There is no need to dismantle the pipeline system, just lift off the conjunction flat nut of the vertical pump. Then, all the rotor parts can be taken out.
- A horizontal centrifugal pump can operate in series and parallel connection according to the requirements of flow and head.
- The installation angle of the pump outlet can be 0°, 90°, or 180° to meet different connection occasions.
Specifications:
| Model | HZTOHZ-HCP-40-250 | ||
| Weight | 125kg | ||
| Size | 465*640*330mm | ||
| Power | 10 hp (7.5kW) | ||
| Phase | 3 phase | ||
| Input voltage * | AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V | ||
| Input frequency * | 50Hz, 60Hz | ||
| Flow (min. flow to max. flow) | 4.4m3/h (19.4 gpm, American system) | 6.3m3/h (27.7 gpm, American system) | 8.3m3/h (36.5 gpm, American system) |
| Head (max. head to min. head) | 82m (269ft) | 80m (262ft) | 74m (243ft) |
| Efficiency | 24% | 28% | 28% |
| Inlet diameter | 40mm (1-1/2 inch) | ||
| Outlet diameter | 40mm (1-1/2 inch) | ||
| Installation angle of outlet | 0°, 90° and 180° | ||
| Nominal diameter of impeller | 250mm | ||
| Pump type | Booster pump | ||
| Number of stages | Single stage | ||
| Motor type | Y/Y2 series motor | ||
| Motor speed | 2900rpm | ||
| Impeller material | 304/316 stainless steel | ||
| Seal material | 304 stainless steel, tungsten carbide, fluorine rubber | ||
| Inlet max. pressure | 1MPa (145 psi) | ||
| (NPSH)r | 2.3m | ||
| Usage | Water or liquids compatible with pump component materials. 1. The volume of solid particles should be less than 0.1% in unit volume, and the granularity should be less than 0.2mm. 2. The temperature should be lower than 60℃. | ||
| Environment | Temperature: ＜40℃, humidity: ＜95%, altitude＜1000m | ||
| Warranty | 12 months | ||

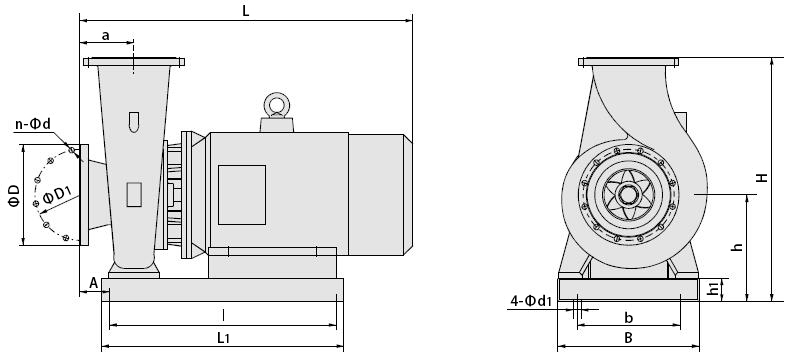

Horizontal centrifugal pump dimension (unit: mm):
| Boundary dimension | Base dimension | Flange dimension | |||||||||||
| h | H | L | a | A | L1 | B | l | b | h1 | 4-Φd1 | D | D1 | n-Φd |
| 260 | 465 | 640 | 80 | 55 | 450 | 330 | 400 | 230 | 80 | 4-Φ14 | Φ150 | Φ110 | 4-Φ18 |
Tips: Centrifugal pump troubleshooting - overtemperature
1. Check the centrifugal pump
The selected power doesn't match, just like a little horse pulling a big cart. The motor operates with a load for a long period, raising the motor's temperature. The start is too frequent, or the motor with a fixed short-period or discontinuous working system works continuously. The start-up times should be restricted, thermal protection should be accurately selected, and the fixed amount indicated on the motor should be followed.
2. Check the motor
Wrong wiring. The △ is connected into Y wrongly, causing the rapid temperature rise of the motor. The stator winding has the problem of interphase short circuit, interturn short circuit, or local earthing. In not serious condition, the motor is too hot in some parts. In serious conditions, the insulation burnt. The cage rotor disconnects or has a defect. After the motor runs for 1 to 2 hours, the iron core raises its temperature rapidly. The ventilation system has a fault. Please check if the fan is damaged, if the revolving direction is correct, and if the ventilation pipe is blocked. The bearing wearing and rotor eccentricity result in rotor core collision, and the iron core temperature rises rapidly. In serious conditions, the motor has smoked, and even the coil is burnt.
3. Check the power supply
The voltage is higher or lower. Under a specific load, if the voltage variable scope exceeds +10% ~ -5% of the rated value, the motor will be overheated. The three-phase voltage of the power source is asymmetric. If the imbalanced degree of the three-phase voltage exceeds 5%, the winding will be overheated. It has phase-deficient operation. Experience has shown that more than 85% of agricultural motors are burnt due to phase-deficient operation, and the motor should be installed with phase loss protection devices.
4. Reason of the working environment
If the motor winding is wet or has dust or oil on the winding, the insulation will be reduced. The insulation resistance of the motor should be measured, and it is required to conduct regular sweeping and drying treatment. The ambient temperature is too high. When the ambient temperature exceeds 35 °C, the inlet air temperature is high, which will make the temperature of the motor too high. Please take measures to improve the working environment, such as scaffolding. Note: If there is a malfunction due to electrical reasons, the electrician who has obtained the professional qualification certificate is allowed to repair. Those who have little professional knowledge on it are not allowed to repair blindly, to avoid personal injury accident.
Horizontal Centrifugal Pump User Manual
