10 Hp Vertical Centrifugal Pump
from
$2,176.23
Ex Tax: $2,176.23
- Stock: In Stock
- Model: HZTOHZ-VCP-7500W
- Weight: 1.00
- SKU: HZTOHZ-VCP-7500W

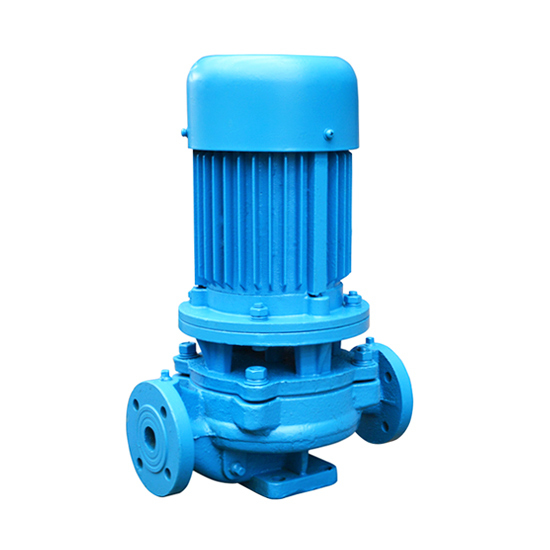

10 hp vertical centrifugal pump with 65m3/h maximum flow, 35m maximum head, and 80mm diameter of inlet and outlet.
Features:
- The centrifugal pump has a vertical structure. The diameter of the inlet and outlet are the same. The inlet and outlet are on the same center line so that the vertical centrifugal pump can be installed in the pipeline like a valve. If a protective cover is added, it can be used in the open air.
- It is easy to install and maintain. There is no need to dismantle the pipeline system, just lift off the conjunction flat nut of the vertical pump. Then, all the rotor parts can be taken out.
- A vertical centrifugal pump can operate in series or parallel connection according to the requirements of flow and head.
- A vertical pump can be installed vertically or horizontally according to the requirement of the pipeline system.
Specifications:
| Model | HZTOHZ-VCP-80-160 | ||
| Weight | 125kg | ||
| Size | 400*360*650mm | ||
| Power | 10 hp (7.5kW) | ||
| Phase | 3 phase | ||
| Input voltage * | AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V | ||
| Input frequency * | 50Hz, 60Hz | ||
| Flow (min. flow to max. flow) | 35m3/h (154 gpm, American system) | 50m3/h (220 gpm, American system) | 65m3/h (286 gpm, American system) |
| Head (max. head to min. head) | 35m (115ft) | 32m (105ft) | 28m (92ft) |
| Efficiency | 63% | 71% | 70% |
| Inlet diameter | 80mm (3 inch) | ||
| Outlet diameter | 80mm (3 inch) | ||
| Installation mode | Vertical type or horizontal type | ||
| Nominal diameter of impeller | 160mm | ||
| Pump type | Booster pump | ||
| Number of stages | Single stage | ||
| Motor type | Y/Y2 series motor | ||
| Motor speed | 2900rpm | ||
| Impeller material | 304/316 stainless steel | ||
| Seal material | 304 stainless steel, tungsten carbide, fluorine rubber | ||
| Inlet max. pressure | 1MPa (145 psi) | ||
| (NPSH)r | 3.0m | ||
| Usage | Water or liquids compatible with pump component materials. 1. The volume of solid particles should be less than 0.1% in unit volume, and the granularity should be less than 0.2mm. 2. The temperature should be lower than 60℃. | ||
| Environment | Temperature: ＜40℃, humidity: ＜95%, altitude＜1000m | ||
| Warranty | 12 months | ||

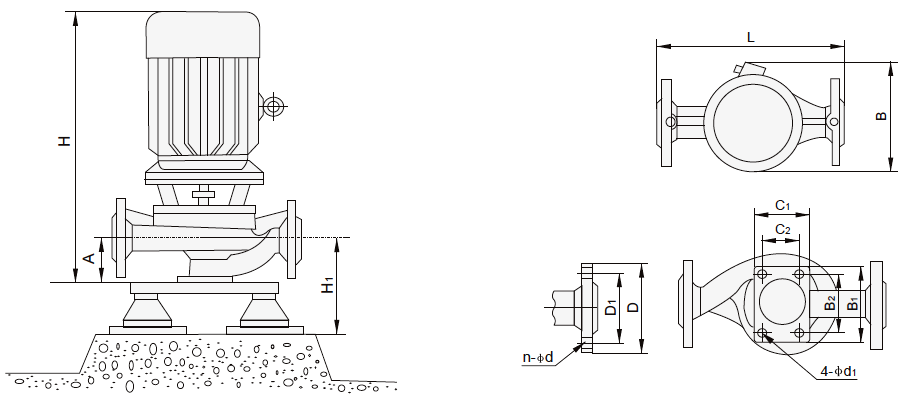

Vertical centrifugal pump dimension (unit: mm):
| Boundary dimension | Installation dimension | Flange dimension | |||||||
| L | B | H | C1*B1 | A | C2*B2 | 4-Φd1 | ΦD | ΦD1 | n-Φd |
| 400 | 360 | 650 | 140*200 | 125 | 100*160 | 4-Φ18 | Φ200 | Φ160 | 8-Φ18 |
Tips: Daily maintenance of the centrifugal pump
- In the operation process of the centrifugal pump, the bearing temperature should not exceed the ambient temperature by 35℃, and the maximum temperature should not exceed 80℃.
- Add bearing lubrication oil to the centrifugal pump bearing, observe the oil level to be at the central line of the oil mark, and regularly exchange and supplement the lubrication oil.
- Screw out the diversion plug screw of the centrifugal pump, fill and diverse water (or tick liquid guiding).
- Close the brake valve of the centrifugal pump water outlet, outlet pressure meter, and inlet vacuum meter.
- Inch the motor of the centrifugal pump and check if the motor's revolving direction is correct or not.
- Turn on the centrifugal pump motor and turn on the outlet pressure gauge and inlet vacuum pump when the centrifugal pipeline pump has normal operation. Gradually open the brake valve and check the motor load conditions when the gauges show the appropriate pressure.
- Try to control the flow and head of the centrifugal pipeline pump within the range indicated on the nameplate to ensure that the pipeline pump runs at a high efficiency point to obtain a large energy-saving effect.
- Immediately stop the machine in case of an abnormal sound in the pipeline.
- If the centrifugal pipeline pump is going to be stopped, please first turn off the brake valve, pressure gauge, and then the motor.
- Please check if the pipeline pump, pipeline, and connections have any looseness. rotate the pipeline pump manually to check if the pump is flexible.
- Regularly check the wearing condition of the pump sleeve, replace timely in case of a serious wearing.
- When the centrifugal pipeline pump is used in severe winter, it is required to unscrew the drainage screw in the lower part of the pump body to avoid frost crack.
- If the centrifugal pump is going to be stopped for a long period, the pipeline pump should be completely dismantled and dried. The rotary parts and combination parts should be smeared with gear for appropriate storage.
- In the first month of the centrifugal pump's operation, the lubrication oil should be exchanged every 100 hours and then every 500 hours.
- The centrifugal pump stuffing gland should be regularly regulated to ensure the normal dripping conditions of the stuffing chamber.
