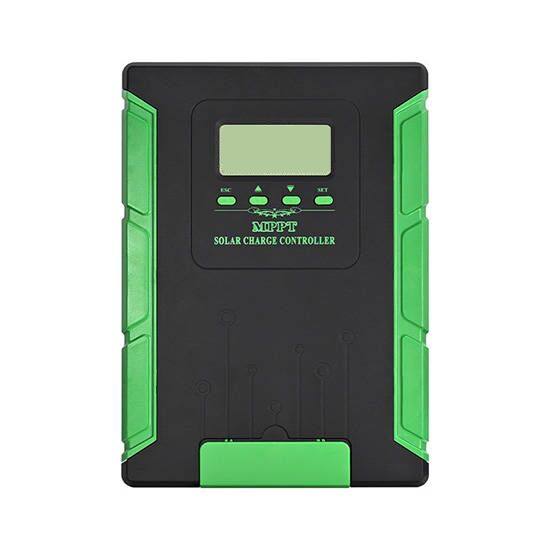

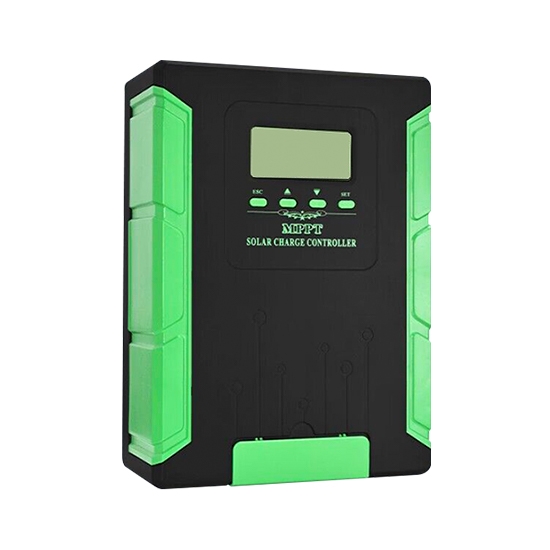

120 Amp 12/24/36/48V MPPT Solar Charge Controller
from
$391.92
Ex Tax: $391.92
- Stock: In Stock
- Model: HZTOHZ-MPPT-CM-120
- Weight: 1.00
- SKU: HZTOHZ-MPPT-CM-120
A 120A MPPT solar charge controller is a device used in solar power systems to optimize the charging of batteries from solar panels. "120A" indicates its maximum current capacity of 120 amps, meaning it can handle high currents, making it suitable for larger solar setups. This pv charge controller efficiently converts excess voltage into additional current, increasing overall energy production. By using a MPPT controller, solar systems can achieve better performance and longer battery life, ensuring more effective and reliable power generation.
Features:
- Higher efficiency. MPPT solar power controller can convert excess voltage into additional current. It typically operate at an efficiency of 95-98%.
- Battery compatibility. MPPT pv charge controller can be used with different types of batteries, including lead-acid (AGM, gel) and lithium-ion.
- Multiple protection. This solar charge controller has short circuit protection, current limiting and power limiting protection.
- Maximum power point tracking. The primary feature of a MPPT controller is its ability to identify the maximum power point of a solar panel's power output. This allows the controller to adjust the electrical operating point of the modules, ensuring that the system operates at the highest efficiency possible.
Details:

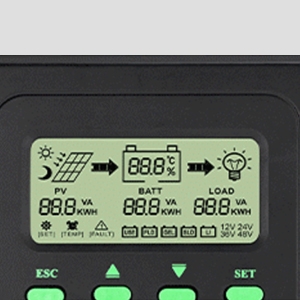

LCD Display
LCD display in a 120 amp MPPT solar charge controller offers real-time monitoring of system performance. It enhances user interaction by providing easy-to-read data, and allows for quick adjustments to settings. This improves overall system efficiency. Overall, LCD displays improve user interaction, system monitoring, and operational effectiveness in solar panel MPPT charge controller.

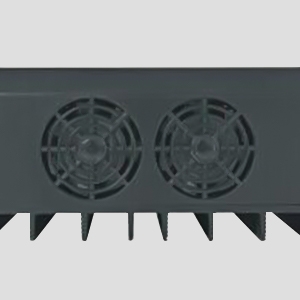

Dual Cooling Fans
Dual cooling fans in this pv charge controller enhance thermal management, ensuring the device operates efficiently by preventing overheating. This improved cooling capability extends the lifespan of the controller and its components, maintaining optimal performance even under high load or elevated temperatures. Dual fans provide redundancy, reducing the risk of system failure if one fan malfunctions.

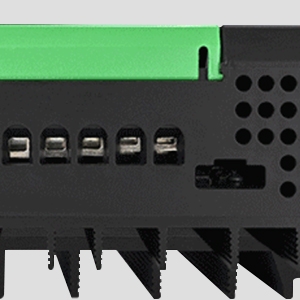

Large Cross-section
It allows for higher current handling, reducing resistive losses and heat generation. This larger cross-sectional area improves the 120a MPPT solar power controller's ability to manage and convert more power from solar panels, leading to better energy capture and utilization. It enables the controller to operate more reliably under high current conditions.

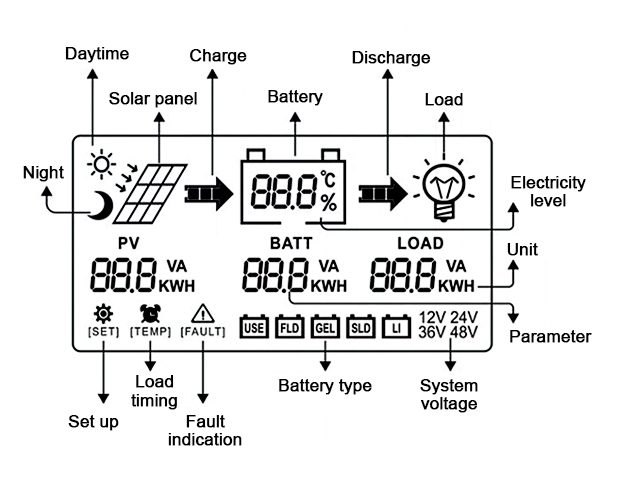

MPPT Charge Controller Interface Introduction:

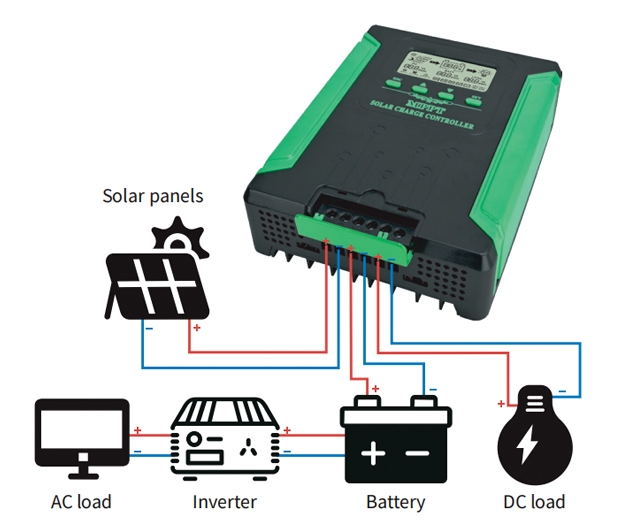

MPPT 120 Amp Charge Controller Wiring Diagram:
Applications:

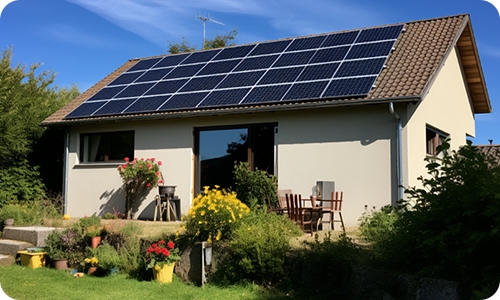

Solar Roof

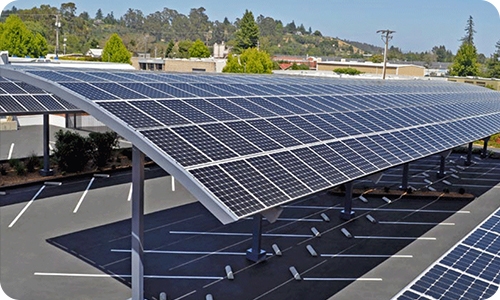

Solar Awning

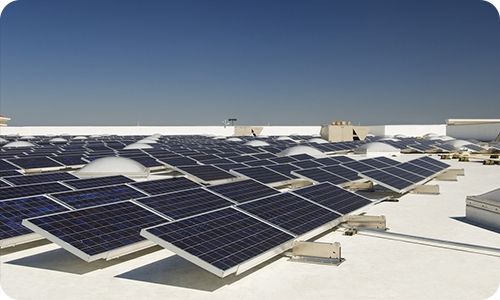

Solar Power System
Solar RV
| Model | HZTOHZ-MPPT-CM-120 |
| System voltage | 12V/24V/36V/48V self-identification |
| Load loss | ≤0.4W |
| Solar maximum input voltage | 180V (25℃), 160V (-25℃) |
| Battery voltage | 9-64V |
| Maximum power voltage range | storage battery voltage +2V~150V |
| Rated charging current | 120A |
| Rated load current | 40A |
| Maximum input power of solar panel | 1440W/12V; 2880W/24V; 4320W/36V; 5760W/48V |
| Conversion efficiency | ≤98% |
| MPPT tracking efficiency | ＞99% |
| Temperature compensation | -2mv/℃/2V (default value) |
| Operating temperature | -10 ℃~65 ℃ |
| Protection level | IP21 |
| Altitude | ≤3000 meters |
| Net weight | 2900g |
| Product size | 313*225*105mm |
