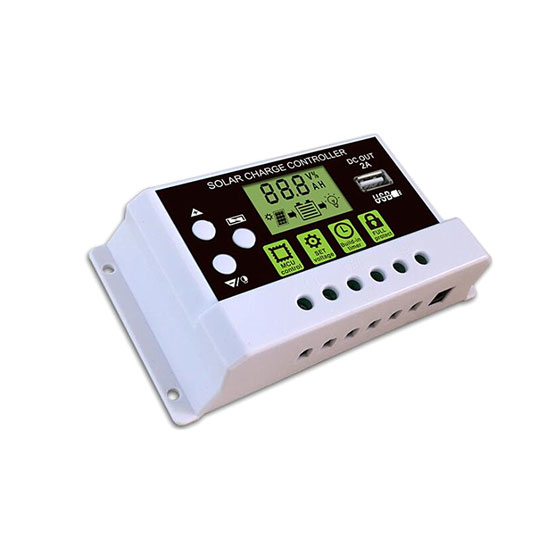

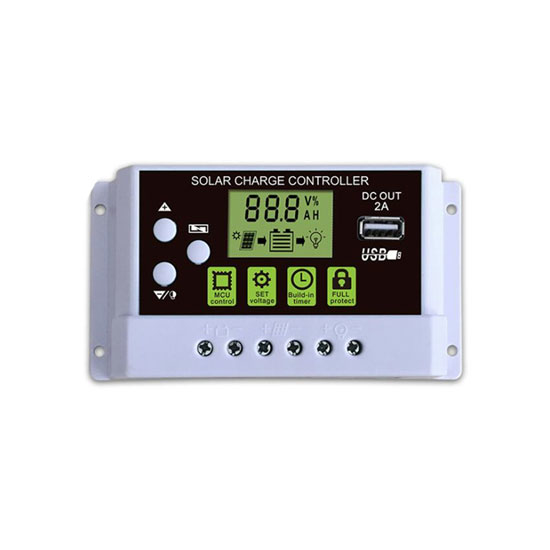

10 Amp 12/24V PWM Solar Charge Controller
from
$58.26
Ex Tax: $58.26
- Stock: In Stock
- Model: HZTOHZ-PWM-10
- Weight: 1.00
- SKU: HZTOHZ-PWM-10
Smart 10A PWM charge controller easy to operate, fast charging, with backlight function, suitable for night or dark places. Built-in overcurrent/short circuit protection, open circuit protection, reverse connection protection, all self-recovery type, no damage to controller.
Features
- The left button is not affected by the wiring position, and the operation is convenient. The button is separated from the USB left and right to prevent the data line from being loosened when the button is operated to prevent PWM charge controller damage. Easy to operate, saves setup time, and makes you feel good.
- The PWM solar charge controller's chip has data logging and storage capabilities.
- The improvement of the position of the terminal prevents the current from being backflushed and burns out the controller, and also protects the battery, making the PWM controller 12v charging process safer.
- The screen comes with a backlight function. Just click any button and the screen will light up, which is convenient for night or low light.
- PWM solar controller equipped with a 2.0A USB output interface for faster charging solves the troubles of customers' mobile phones or electronic devices.

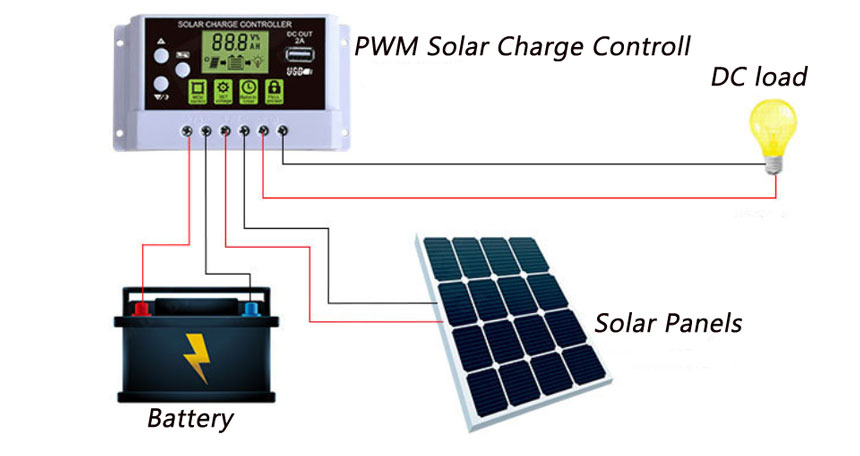

Wiring Diagram
| Model | HZTOHZ-PWM-10 | ||
| DC Voltage | 12V/24V Auto Adapt | ||
| Charge Current | 10A | 20A | 30A |
| Discharge Current | 10A | 10A | 10A |
| USB output | 5V 2A | ||
| Max Solar Input | <> | ||
| Equalization | lithium battery（LIT）：12.8V | ||
| Lead acid battery（BAT）：14.4V | |||
| Float | Lead acid battery: 13.7V (Defaults, Adjustable range 13-15V) | ||
| Lithium battery: 12.0V (Defaults, Adjustable range 11.5-12.8V) | |||
| Undervoltage Protection | Lead acid battery: 10.7V (Defaults, Adjustable range 9.0-11.5V) | ||
| Lithium battery: 10.7V (Defaults, Adjustable range9.0-11.0V) | |||
| Disstarge Reconnect | Lead acid battery: 12.6V (Defaults, Adjustable range 11.5-13V) | ||
| Lithium battery: 11.6V (Defaults, Adjustable range 11.0-11.7V) | |||
| Standby Current | <> | ||
| Operating Temperature | -35~+60℃ | ||
| Dimension | 133mm*70mm*35mm | ||
| Weight | 140g | ||
