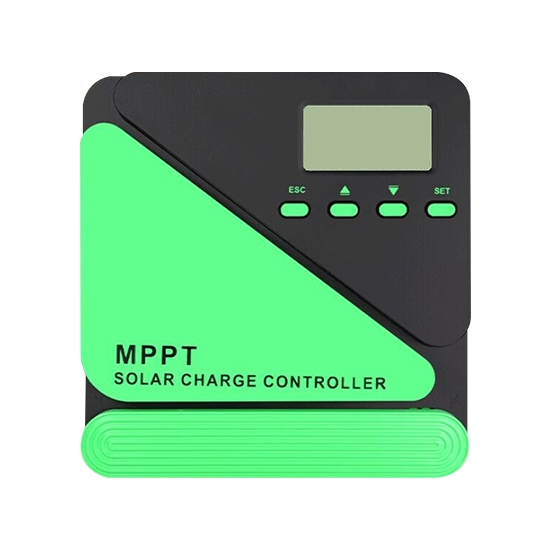

10 Amp 12/24V MPPT Solar Charge Controller
from
$106.73
Ex Tax: $106.73
- Stock: In Stock
- Model: HZTOHZ-MPPT-GM-D10
- Weight: 1.00
- SKU: HZTOHZ-MPPT-GM-D10
A 10 amp MPPT (Maximum Power Point Tracking) solar charge controller is a device that optimizes the charging of batteries from solar panels. It efficiently converts the higher voltage output from solar panels to the appropriate voltage needed to charge batteries while maximizing the power harvested from the panels. MPPT technology ensures that the solar panels operate at their optimal power point, enhancing energy collection, especially in varying weather conditions. This type of charge controller is ideal for small to medium solar power systems, improving overall efficiency and battery lifespan.
Features:
- Higher efficiency. MPPT solar power controller can convert excess voltage into additional current. It typically operate at an efficiency of 95-98%.
- Battery compatibility. MPPT pv charge controller can be used with different types of batteries, including lead-acid (AGM, gel) and lithium-ion.
- Multiple protection. This solar charge controller has short circuit protection, current limiting and power limiting protection.
- Maximum power point tracking. The primary feature of a MPPT controller is its ability to identify the maximum power point of a solar panel's power output. This allows the controller to adjust the electrical operating point of the modules, ensuring that the system operates at the highest efficiency possible.
Details:
LCD Display
LCD display in a 10a MPPT solar charge controller offers real-time monitoring of system performance. It enhances user interaction by providing easy-to-read data, and allows for quick adjustments to settings. This improves overall system efficiency. Overall, LCD displays improve user interaction, system monitoring, and operational effectiveness in MPPT solar controller.

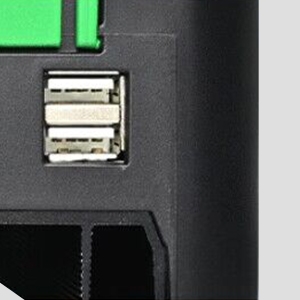

Dual USB Charging Ports
It can charge two devices at once (supports most usb port devices), enhancing convenience for users with multiple gadgets. Additionally, having dual ports can provide a backup option in case one port fails, increasing reliability and versatility for various charging needs. This reduces reliance on additional power sources and enhances convenience.

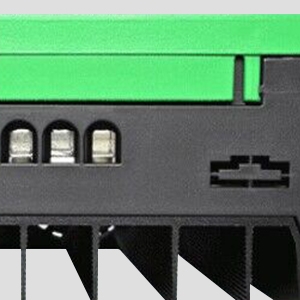

Large Cross-section
It allows for higher current handling, reducing resistive losses and heat generation. This larger cross-sectional area improves the MPPT lithium charge controller's ability to manage and convert more power from solar panels, leading to better energy capture and utilization. It enables the controller to operate more reliably under high current conditions.

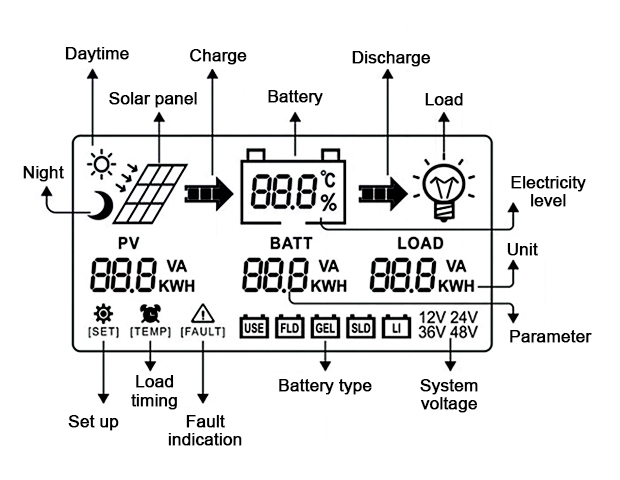

MPPT Charge Controller Interface Introduction:

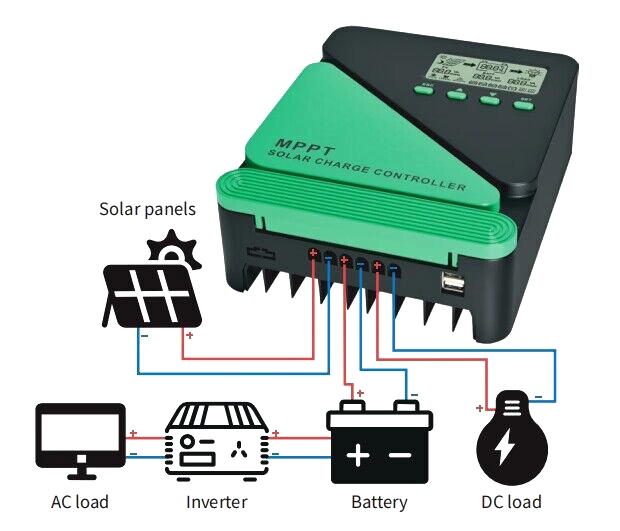

10a MPPT Solar Charge Controller Wiring Diagram:
Applications:

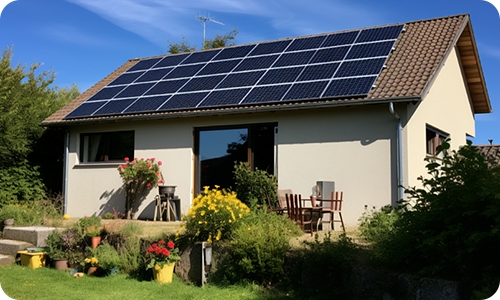

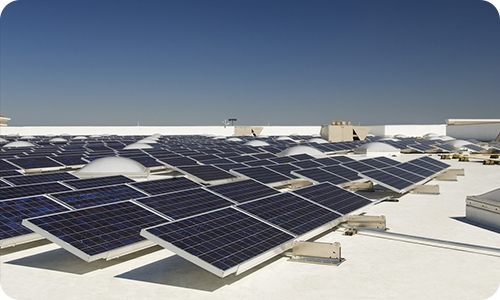

Solar Roof

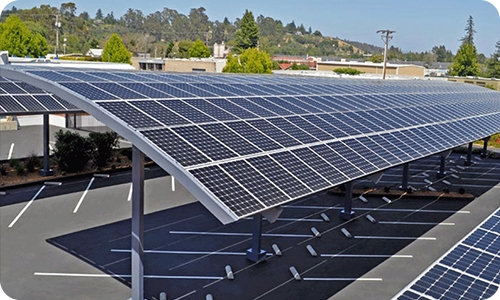

Solar Awning
Solar Power System

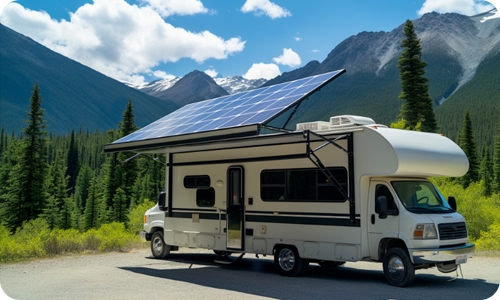

Solar RV
| Model | HZTOHZ-MPPT-GM-D10 |
| System voltage | 12V/24V self-identification |
| Load loss | ≤0.4W |
| Solar maximum input voltage | 50V VOC |
| Battery voltage | 9-32V |
| Maximum power voltage range | storage battery voltage +2V~50V |
| Rated charging current | 10A |
| Rated load current | 20A |
| USB output | 5V/3A |
| Maximum input power of solar panel | 120W/12V; 240W/24V |
| Conversion efficiency | ≤98% |
| MPPT tracking efficiency | ＞99% |
| Temperature compensation | -2mv/℃/2V (default value) |
| Operating temperature | -10 ℃~65 ℃ |
| Protection level | IP21 |
| Altitude | ≤3000 meters |
| Net weight | 400g |
| Product size | 135*135*55mm |
