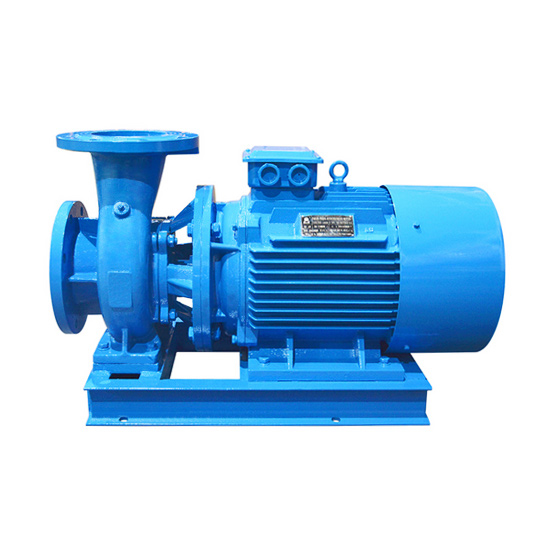

1.5 Hp Horizontal Centrifugal Pump
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: HZTOHZ-HCP-1100W
- Weight: 1.00
- SKU: HZTOHZ-HCP-1100W
1.5 hp horizontal centrifugal pump with 4.9m3/h maximum flow, 29m maximum head, and 25mm diameter of inlet and outlet.
Features:
- The centrifugal pump has a horizontal structure. The diameter of the inlet and outlet are the same. If a protective cover is added, it can be used in the open air.
- It is easy to install and maintain. There is no need to dismantle the pipeline system, just lift off the conjunction flat nut of the vertical pump. Then, all the rotor parts can be taken out.
- A horizontal centrifugal pump can operate in series and parallel connection according to the requirements of flow and head.
- The installation angle of the pump outlet can be 0°, 90°, or 180° to meet different connection occasions.
Specifications:
| Model | HZTOHZ-HCP-25-160A | ||
| Weight | 65kg | ||
| Size | 355*420*200mm | ||
| Power | 1.5 hp (1.1kW) | ||
| Phase | 3 phase | ||
| Input voltage * | AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V | ||
| Input frequency * | 50Hz, 60Hz | ||
| Flow (min. flow to max. flow) | 2.9m3/h (12.8 gpm, American system) | 3.7m3/h (16.3 gpm, American system) | 4.9m3/h (21.6 gpm, American system) |
| Head (max. head to min. head) | 29m (95ft) | 28m (92ft) | 26m (85ft) |
| Efficiency | 27% | 31% | 29% |
| Inlet diameter | 25mm (1 inch) | ||
| Outlet diameter | 25mm (1 inch) | ||
| Installation angle of outlet | 0°, 90° and 180° | ||
| Nominal diameter of impeller | 160mm | ||
| Pump type | Booster pump | ||
| Number of stages | Single stage | ||
| Motor type | Y/Y2 series motor | ||
| Motor speed | 2900rpm | ||
| Impeller material | 304/316 stainless steel | ||
| Seal material | 304 stainless steel, tungsten carbide, fluorine rubber | ||
| Inlet max. pressure | 1MPa (145 psi) | ||
| (NPSH)r | 2.3m | ||
| Usage | Water or liquids compatible with pump component materials. 1. The volume of solid particles should be less than 0.1% in unit volume, and the granularity should be less than 0.2mm. 2. The temperature should be lower than 60℃. | ||
| Environment | Temperature: ＜40℃, humidity: ＜95%, altitude＜1000m | ||
| Warranty | 12 months | ||

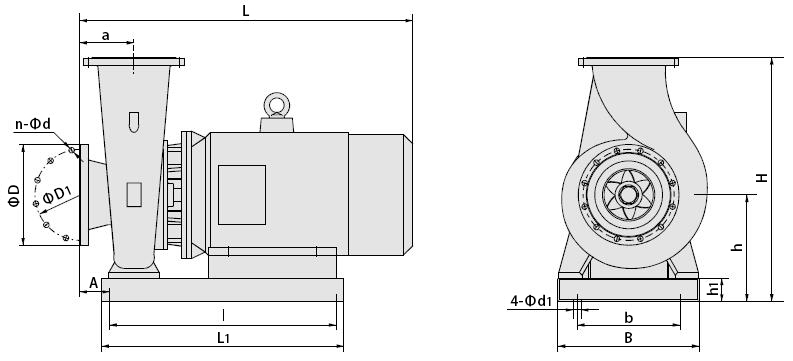

Horizontal centrifugal pump dimension (unit: mm):
| Boundary dimension | Base dimension | Flange dimension | |||||||||||
| h | H | L | a | A | L1 | B | l | b | h1 | 4-Φd1 | D | D1 | n-Φd |
| 210 | 355 | 420 | 80 | 55 | 320 | 200 | 270 | 100 | 80 | 4-Φ14 | Φ115 | Φ85 | 4-Φ14 |
Tips: Classification of centrifugal pump
1. Classify by the number of the working impellers
- Single-stage pump: there is only one impeller on the pump shaft
- Multiple-stage pump: there are two or more than two impellers on the pump shaft. Then, the total head of the pump is the sum of the head of the n impellers.
2. Classify according to the working pressure
- Low-voltage pump: pressure below 10000mmH2O.
- Middle-voltage pump: pressure within 10000~65000mmH2O.
- High-voltage pump: pressure higher than 65000mmH2O.
3. Classify according to the impeller's water feeding means
- One-sided water feeding pump: namely, the single end suction centrifugal pump, the impeller has only one water inlet.
- Two-sided water feeding pump: namely, the double suction centrifugal pump, the impeller has one water inlet on each side. Its flow doubles that of the single-suction pump. It can be approximately regarded that two single end suction impellers are placed back to back.
4. Classify according to the pump shaft position
- Horizontal centrifugal pump: the pump shaft is in the horizontal position.
- Vertical centrifugal pump: the pump shaft is in the vertical position.
5. Classify according to the means of leading the water out of the impeller to the delivery chamber
- Volute shell pump: the water goes directly into the pump shell with the spiral line shape after coming out of the impeller.
- Guide vane pump: the water enters the externally set guide vane after coming out of the impeller and then enters the next stage or flows into the outlet.
6. Classify according to the application
According to the application, it can be divided into sewage centrifugal pump, hot water centrifugal pump, anti-corrosion chemical centrifugal pump, anti-explosion centrifugal oil pump, and so on.
