1 Hp Vertical Centrifugal Pump
from
$897.77
Ex Tax: $897.77
- Stock: In Stock
- Model: HZTOHZ-VCP-0750W
- Weight: 1.00
- SKU: HZTOHZ-VCP-0750W

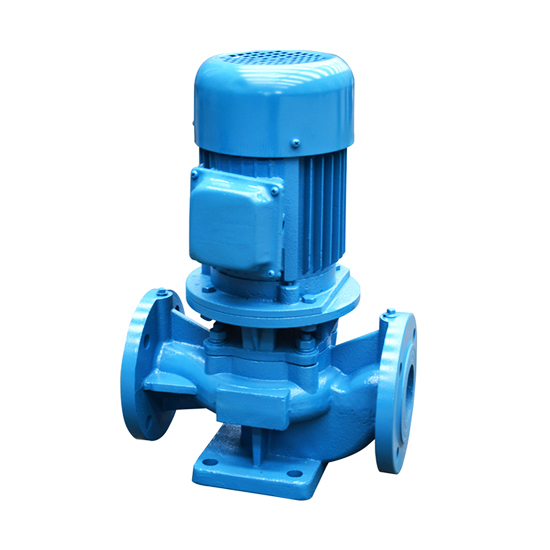

1 hp vertical centrifugal pump with 5.2m3/h maximum flow, 20.6m maximum head, and 25mm diameter of inlet and outlet.
Features:
- The centrifugal pump has a vertical structure. The diameter of the inlet and outlet are the same. The inlet and outlet are on the same center line so that the vertical centrifugal pump can be installed in the pipeline like a valve. If a protective cover is added, it can be used in the open air.
- It is easy to install and maintain. There is no need to dismantle the pipeline system, just lift off the conjunction flat nut of the vertical pump. Then, all the rotor parts can be taken out.
- A vertical centrifugal pump can operate in series or parallel connection according to the requirements of flow and head.
- A vertical pump can be installed vertically or horizontally according to the requirement of the pipeline system.
Specifications:
| Model | HZTOHZ-VCP-25-125 | ||
| Weight | 55kg | ||
| Size | 260*230*435mm | ||
| Power | 1 hp (0.75kW) | ||
| Phase | 3 phase | ||
| Input voltage * | AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V | ||
| Input frequency * | 50Hz, 60Hz | ||
| Flow (min. flow to max. flow) | 2.8m3/h (12.3 gpm, American system) | 4.0m3/h (17.6 gpm, American system) | 5.2m3/h (22.9 gpm, American system) |
| Head (max. head to min. head) | 20.6m (68ft) | 20.0m (66ft) | 18.0m (59ft) |
| Efficiency | 28% | 36% | 35% |
| Inlet diameter | 25mm (1 inch) | ||
| Outlet diameter | 25mm (1 inch) | ||
| Installation mode | Vertical type or horizontal type | ||
| Nominal diameter of impeller | 125mm | ||
| Pump type | Booster pump | ||
| Number of stages | Single stage | ||
| Motor type | Y/Y2 series motor | ||
| Motor speed | 2900rpm | ||
| Impeller material | 304/316 stainless steel | ||
| Seal material | 304 stainless steel, tungsten carbide, fluorine rubber | ||
| Inlet max. pressure | 1MPa (145 psi) | ||
| (NPSH)r | 2.3m | ||
| Usage | Water or liquids compatible with pump component materials. 1. The volume of solid particles should be less than 0.1% in unit volume, and the granularity should be less than 0.2mm. 2. The temperature should be lower than 60℃. | ||
| Environment | Temperature: ＜40℃, humidity: ＜95%, altitude＜1000m | ||
| Warranty | 12 months | ||

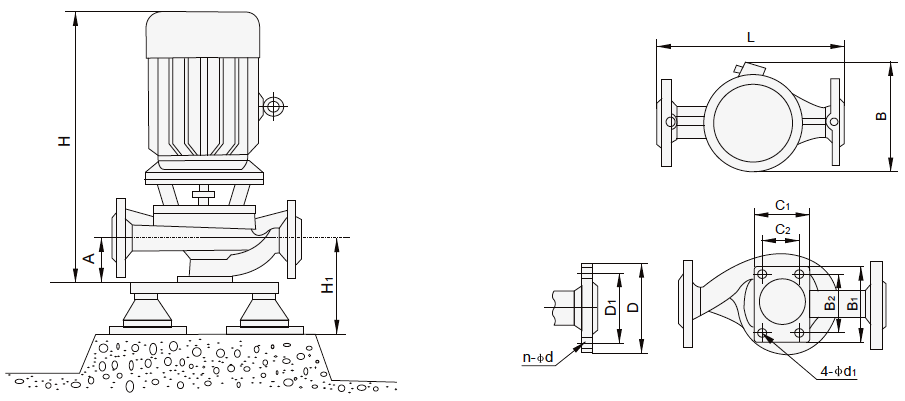

Vertical centrifugal pump dimension (unit: mm):
Boundary dimension | L | B | H | C1*B1 |
| 260 | 230 | 435 | 80*110 | |
Installation dimension | A | C2*B2 | 4-Φd1 | |
| 75 | 50*80 | 4-Φ12 | ||
Flange dimension | ΦD | ΦD1 | n-Φd | |
| Φ115 | Φ85 | 4-Φ14 | ||
| Boundary dimension | Installation dimension | Flange dimension | |||||||
| L | B | H | C1*B1 | A | C2*B2 | 4-Φd1 | ΦD | ΦD1 | n-Φd |
| 260 | 230 | 435 | 80*110 | 75 | 50*80 | 4-Φ12 | Φ115 | Φ85 | 4-Φ14 |
Tips: Application scope of centrifugal pump
- A centrifugal pump is suitable for high-rise building pressurized water supply, garden sprinkler irrigation, cooling tower water feeding, long-distance water delivery, air conditioner, refrigeration and bathroom, and the cold and hot water cycle pressurization. The operation temperature is below 80℃.
- The centrifugal pump applies to the hot-temperature hot water pressurizing circulation of the heating, boiler, and other industries. The operation temperature is below 130℃.
- The centrifugal pump is suitable for conveying corrosive media in the process of food, pharmaceutical, wine making, chemical, and other industries. The operation temperature is below 80℃.
- A centrifugal pump is suitable for transporting noncorrosive liquids. It applies to industrial sites with methane or other explosive mixtures. The operation temperature is below 80℃.
- The centrifugal pump is suitable for transporting chemical, pharmaceutical, petrochemical, food, national defense, and other industrial corrosive liquids. It applies to industrial sites with methane or other explosive mixtures. The operation temperature is below 150℃.
