100 KVA Frequency Converter, 50Hz/60Hz/400Hz

100 KVA Frequency Converter, 50Hz/60Hz/400Hz
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
Free Shipping
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
0 reviews • Write a review
from Save -8%
$27,492.00
$29,890.00
Ex Tax: $27,492.00
  • Stock: In Stock
  • Model: HZTOHZ-G31
  • Weight: 1.00
  • SKU: HZTOHZ-G31

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1 KVA Frequency Converter 60Hz To 50Hz
Quickview
1 KVA Frequency Converter 60Hz To 50Hz
$1,549.97 $1,799.00
Ex Tax:$1,549.97
Add to Cart Add to Wish List Compare this Product
10 KVA Pure Sine Wave Frequency Converter
Quickview
10 KVA Pure Sine Wave Frequency Converter
$4,676.54 $4,999.00
Ex Tax:$4,676.54
Add to Cart Add to Wish List Compare this Product
10 KVA Three Phase 220V/380V Frequency Converter
Quickview
10 KVA Three Phase 220V/380V Frequency Converter
$5,990.77 $6,499.00
Ex Tax:$5,990.77
Add to Cart Add to Wish List Compare this Product
10kVA 400Hz To 50Hz/60Hz Frequency Converter
Quickview
10kVA 400Hz To 50Hz/60Hz Frequency Converter
$7,166.67 $7,325.82
Ex Tax:$7,166.67
Add to Cart Add to Wish List Compare this Product
15 KVA 60Hz To 50Hz Frequency Converter
Quickview
15 KVA 60Hz To 50Hz Frequency Converter
$5,615.54 $5,990.00
Ex Tax:$5,615.54
Add to Cart Add to Wish List Compare this Product
15 KVA Three Phase Frequency Converter
Quickview
15 KVA Three Phase Frequency Converter
$7,189.58 $7,999.00
Ex Tax:$7,189.58
Add to Cart Add to Wish List Compare this Product

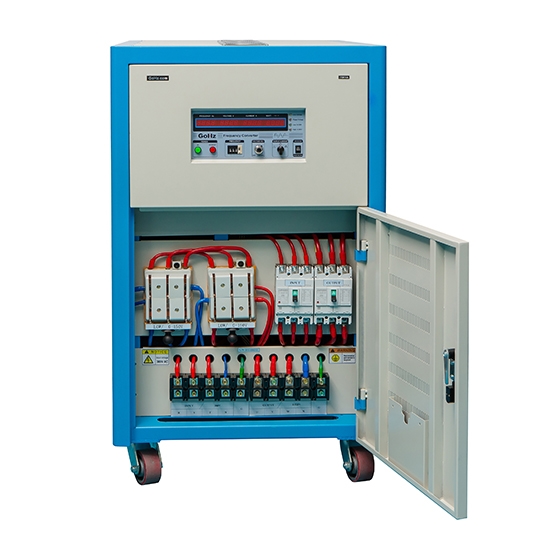

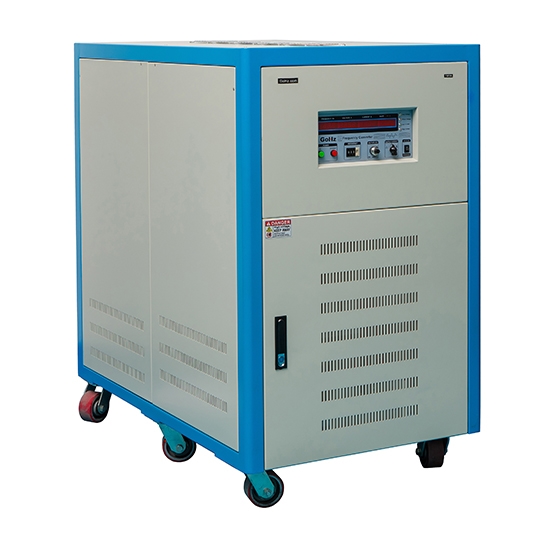

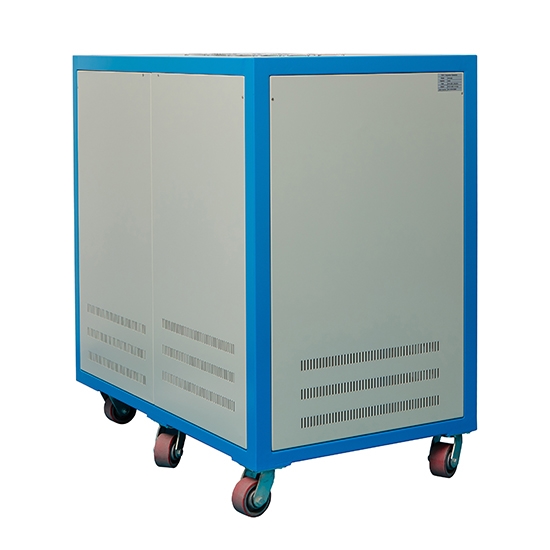

100 kVA solid state frequency converter with cheap price, 3 phase 220V, 230V, 240V, 380V, 400V, 440V input, easy converting 50Hz to 60Hz, 400Hz with pure sine wave single phase or three phase output.

Specification

ModelHZ-50-33100
Capacity100 kVA
Dimension1500*860*1430 mm
Weight760 kg
InputVoltage3 Phase 4 Wire: Wye Type 190/110, 200/115, 208/120, 220/128, 230/132, 240/139V ±10% (option *)
3 Phase 4 Wire: Wye Type 380/220, 400/230, 415/240, 440/254, 460/265, 480/277V ± 10% (option *)
3 Phase 4 Wire: Della Type 220, 230, 240, 380, 400, 415, 440V ± 10% (option *)
Frequency50 Hz, 60 Hz or 400 Hz ± 5%
OutputVoltage, current110V Setting (Low grade): 0-150V (phase voltage), 0-260V (line voltage) 277.6A
220V Setting (High grade): 0-300V (phase voltage), 0-520V (line voltage) 138.8A
Load stabilization Rate≤±1%
Frequency50Hz, 60Hz up to 400Hz adjustable
Note:
-When the output is 400Hz, the load capacity can only reach 50% of the rated capacity.
-When the output is ≤120Hz, the load capacity can reach 100% of the rated value.
-You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
Frequency Stability≤±0.01%
Harmonic DistortionPure Sine Wave ≤2%

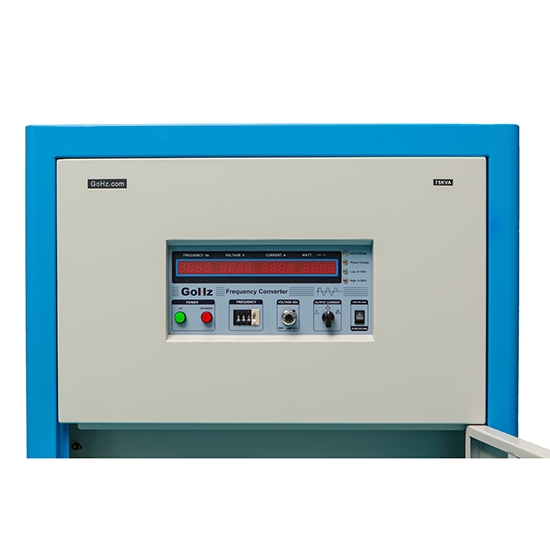

Frequency meter4 digit, digital frequency meter, resolution 0.1Hz/Step
Voltmeter4 digit, digital voltage meter, resolution 0.1V
Ammeter4 digit, digital ammeter, resolution 0.1A
Watt meter4 digit, digital Watt meter, resolution 0.1W
ProtectionWith overload, short circuit, over temperature
Instantaneous power failure protection and alarm device
Working EnvironmentTemperature0 - 40 deg.℃
Humidity0 - 90% (Non condensation)
Warranty18 months

* The input voltage is factory selected.

Tips: Why 400Hz is used?
400 Hz (Hertz) is actually used in airplanes since the transformers and power supplies are smaller and more efficient at this higher frequency but this is good only for airplanes power distribution. Even in many control systems (carrier control) systems, the frequency used is 400Hz. This was convenient mainly because of the low interference of the supply frequency (50 or 60 Hz) when the control signals themselves may be of much lower frequency like in servo systems. Component size becomes smaller to high frequencies, but maintaining higher power level becomes more difficult.
