3000W 24/48V Solar Inverter With MPPT Charge Controller
from
$1,334.28
Ex Tax: $1,334.28
- Stock: In Stock
- Model: HZTOHZ-IC-3000
- Weight: 1.00
- SKU: HZTOHZ-IC-3000

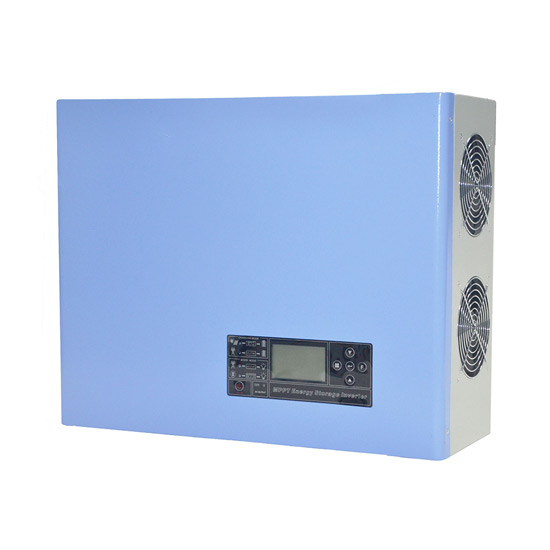

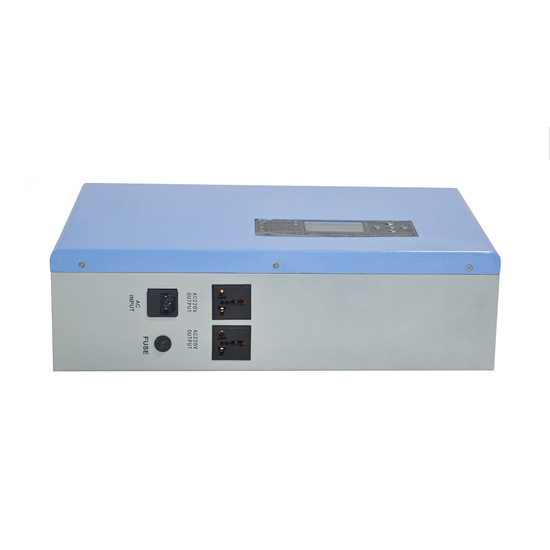

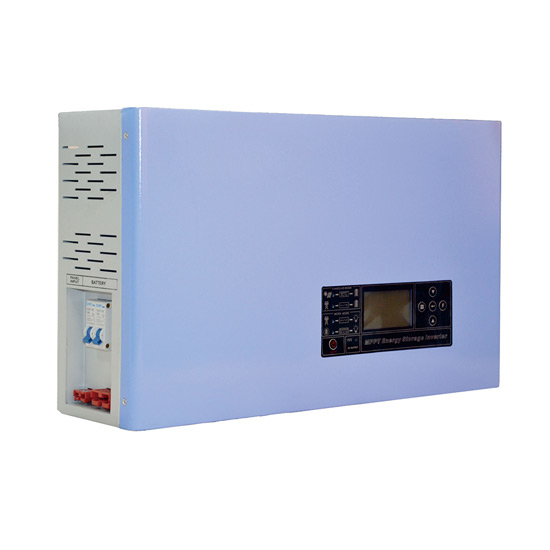

Pure sine wave 24 volt/ 48 volt 3000W photovoltaic hybrid off grid solar inverter with 30 amps or 60 amps MPPT charge controller, LCD screen display, multiple protections of input reverse polarity/ undervoltage/ overvoltage/ short circuit/ overload/ over temperature.

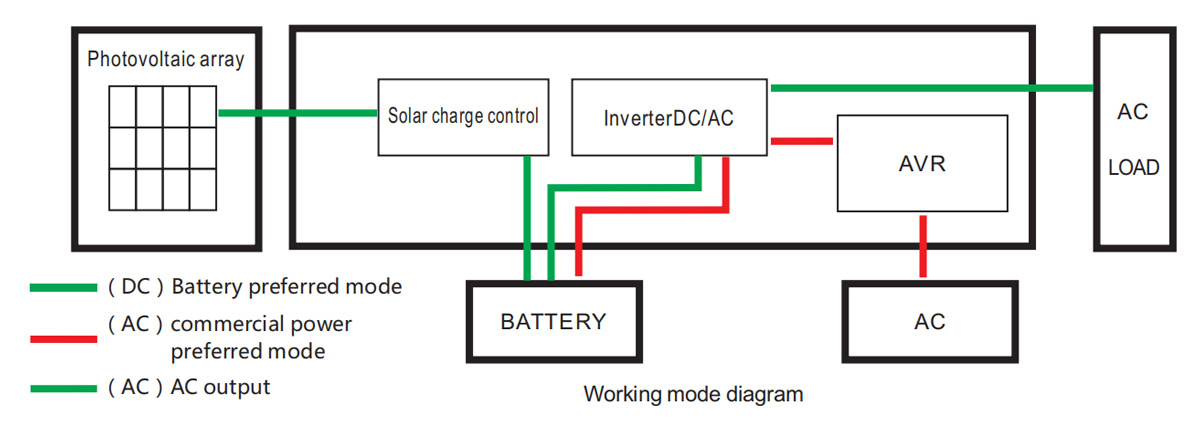

Solar Inverter with MPPT Charge Controller Working Mode Instructions
| Model | HZTOHZ-IC-3000 | ||||||
| Rated capacity | 3000W (5000VA) | ||||||
| Size | 486*385*169mm | ||||||
| Net Weight | 38kg | ||||||
| Function | Setting | Time & date setting, Contrast, lightness, Switch voltage, Grid charge, Clear records, Operating parameter, Discharge limited setting, Reset | |||||
| Working mode | Grid priority/ Battery priority (optional) | ||||||
| Charge mode | PV priority/ PV+grid (optional) | ||||||
| LCD dislpay | Internal and External temperature, record query (fault record), system information query | ||||||
| PV input | Voltage range | 12V DC (18V-150V DC), 24V DC (34V-150V DC), 48V DC (65V-150V DC), 96V DC (130V-180V DC) | |||||
| Battery max charge current | 30A | 60A | |||||
| Battery volatge | 24V/ 48V | 24V/ 48V | |||||
| Max power load | 840W/ 1650W | 1700W/ 3400W | |||||
| Float voltage | 12V (13.75V), 24V (27.5V), 48V (55V), 96V (110V) | ||||||
| Equalization voltage | 12V (14.2V), 24V (28.4V), 48V (56.8V), 96V (113.6V) | ||||||
| Grid Input | Battery type | Lead acid/ gel/ lithium (optional, factory setting) | |||||
| Charge current | 0-30A | ||||||
| Charge mode | Improve charge, direct charge, float charge | ||||||
| AC Output | AC charge current | Standard: 0-30A | |||||
| AC output voltage | 110/ 220/ 230/ 240V ±3% | ||||||
| AC output frequency | 50Hz/ 60Hz | ||||||
| Conversion Efficiency | ≥85% | ||||||
| Overload | 105-120% 30s, 120-150% 10s,>150% 5s | ||||||
| Output form | Pure sine wave | ||||||
| Output power factor | ≥0.8 | ||||||
| Wave form distortion | ≤3% | ||||||
| Switching time | ≤4ms | ||||||
| Protection Function | Overload capacity | 105-120% 30s, 120-150% 10s,>150% 5s | |||||
| Over discharge | 10.5V (12V) DC/ 21V (24V) DC/ 42V (48V) DC/ 84V DC shut down after alarm | ||||||
| Over charge | 16V (12V) DC/ 32V (21V) DC/ 64V (48V) DC/ 128V DC shut down after alarm | ||||||
| High temperature | 85℃ auto shut down after alarm | ||||||
| Short circuit | Auto shut down | ||||||
| Others | Cooling method | Fan cooling | |||||
| Noise | <60> | ||||||
| Operating temperature | -10℃-50℃ | ||||||
| Environment humidity | 10%-90% (No condensation) | ||||||
| Working Elevation | <5000m (="">1000m, derating) | ||||||
