400W Horizontal Axis Wind Turbine, 12V/24V/48V
from
$573.85
Ex Tax: $573.85
- Stock: In Stock
- Model: HZTOHZ-WT-400M2
- Weight: 1.00
- SKU: HZTOHZ-WT-400M2
Height quality horizontal axis wind turbine for boat and home, 400W power, rated voltage 12V/24V/48V. Speed regulation with automatically adjust windard, nylon fiber blades material. Three-phase permanent magnet AC generator.
Feature:
- Low starting wind speed, beautiful appearance, and low running vibration.
- Using humanized flange installation design, convenient installation, and maintenance.
- The starting speed is slow, and 3 or 5 blades can be selected in different wind speed regions, and the wind energy utilization rate is high.
- The blade adopts the new technology of precision injection molding, with optimized aerodynamic shape and structure, which improves the wind energy utilization rate and annual output.
- Cast aluminum alloy body, can rotate 2 bearings, can resist strong wind, safer operation.
- Patented permanent magnet alternator with special stator, which effectively reduces the torque and matches the wind turbine with the generator to ensure the performance of the whole system.
Specification:
| Model | HZTOHZ-WT-400M2 |
| Matched Controller Model | HZTOHZ-WTCMPPT-400 (Click it to the controller page) |
| Rated Power | 400W |
| Maximum Power | 430W |
| Rated Voltage | 12V/24V/48V |
| Start-Up Wind Speed | 2.5m/s |
| Rated Wind Speed | 11m/s |
| Survival Wind Speed | 50 m/s |
| Wheel Diameter | 1.55m |
| Blades Number | 3 / 5 |
| Length of Blades | 0.78m |
| Blades Material | Nylon Fiber |
| Generator | Three-Phase Permanent Magnet AC Generator |
| Magnetic Steel | NdFeB |
| Generator Case | Casting Aluminum Alloy |
| Controller System | Electromagnet / Wind Wheel Yaw |
| Speed Regulation | Automatically Adjust Windard |
| Installation Flange | DN25 |
| Working Temperature | -40°C~80°C |
| Gross Weight | 16.9kg |
| Top Net Weight | 9.5kg |
| Service Life | 15 years |
| Warranty | 18 months |
| Package Dimension | 930*370*260mm |

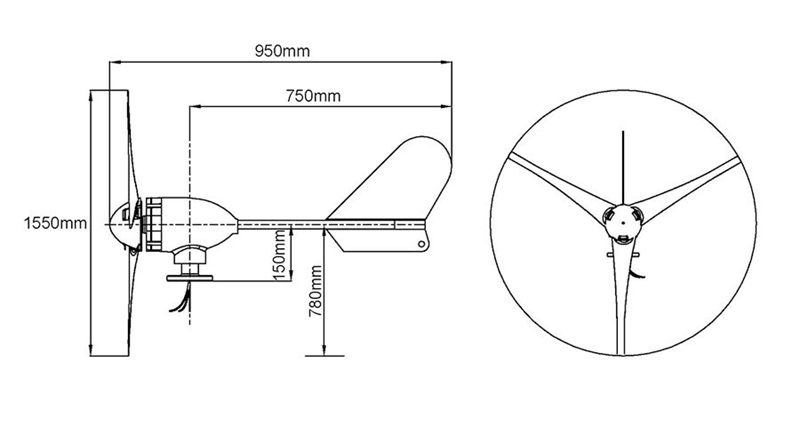

Dimension:

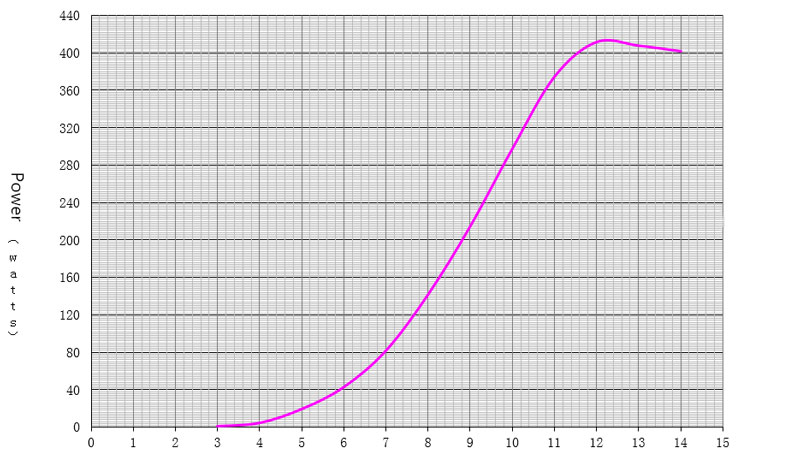

400W Wind Turbine Power Curve:

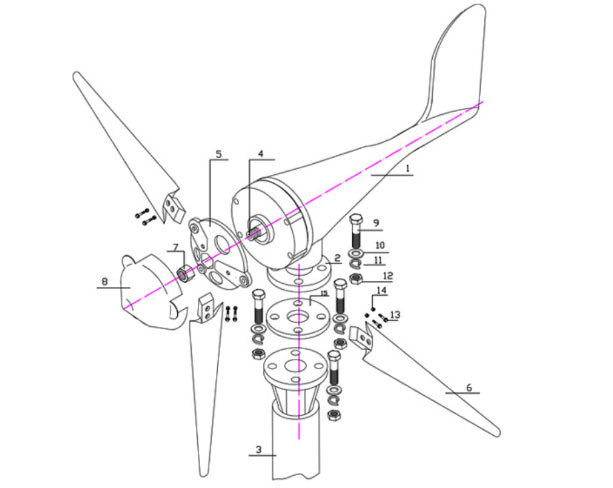

400W Wind Turbine (Flange Seat) Exploded View:
1. Wind turbine body, 2. Wind turbine flange seat, 3. Tower, 4. Wind turbine shaft, 5. Wind hub, 6. Wind wheel, 7. Lock nut, 8. Fairing, 9. Bolt, 10. Flat washer, 11. Elastic washer, 12. Nuts, 13. Stainless steel nut, 14. Anti-loose nut, 15. Rubber pad.
Tips: Why can large wind turbines produce large amounts of power at such a slow speed?
- Large wind turbines use speed-increasing gearboxes to control the speed of blade rotation.
- Low-speed rotational inertia is small, the influence on blade life and wear is minimal, and low speed is easy to control. Large wind turbines must implement speed control, so there are gearboxes, yaw systems, brake systems, hydraulic systems, control systems, and so on.
- Normally, the fan blades rotate at about 27 revolutions per minute. However, the speed of the generator can reach 1500 revolutions per minute after the increase of the gearbox, which can generate stable power.
