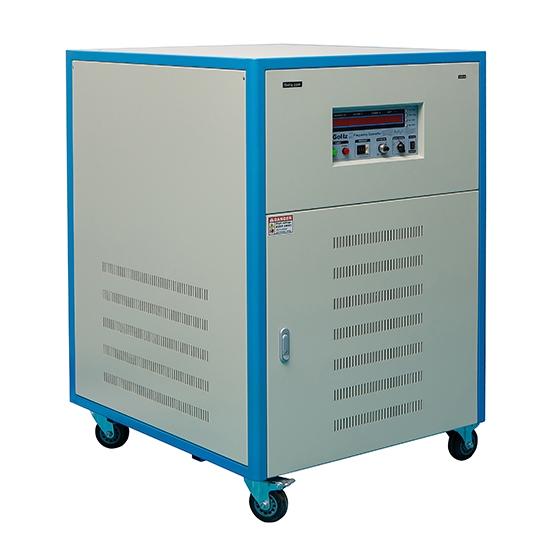

45 kVA three phase solid state (static) frequency converter, converting 50Hz to 60Hz, 400Hz with pure sine wave output, compatible with 3 phase 220V - 240V, 380V, 400V - 480V power system.

Specification

ModelHZ-50-3345
Capacity45 kVA
Dimension900*800*1200 mm
Weight400 kg
InputVoltage3 Phase 4 Wire: Wye Type 190/110, 200/115, 208/120, 220/128, 230/132, 240/139V ±10% (option *)
3 Phase 4 Wire: Wye Type 380/220, 400/230, 415/240, 440/254, 460/265, 480/277V ± 10% (option *)
3 Phase 4 Wire: Della Type 220, 230, 240, 380, 400, 415, 440V ± 10% (option *)
Frequency50 Hz, 60 Hz or 400 Hz ± 5%
OutputVoltage, current110V Setting (Low grade): 0-150V (phase voltage), 0-260V (line voltage) 125A
220V Setting (High grade): 0-300V (phase voltage), 0-520V (line voltage) 62.5A
Load stabilization Rate≤±1%
Frequency50Hz, 60Hz up to 400Hz adjustable
Note:
-When the output is 400Hz, the load capacity can only reach 50% of the rated capacity.
-When the output is ≤120Hz, the load capacity can reach 100% of the rated value.
-You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
Frequency Stability≤±0.01%
Harmonic DistortionPure Sine Wave ≤2%

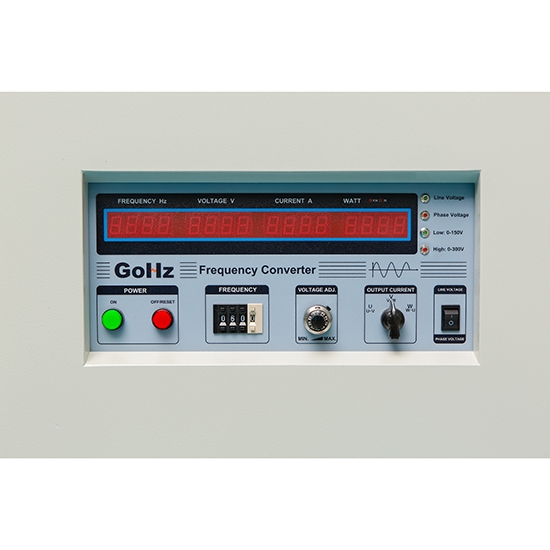

Frequency meter4 digit, digital frequency meter, resolution 0.1Hz/Step
Voltmeter4 digit, digital voltage meter, resolution 0.1V
Ammeter4 digit, digital ammeter, resolution 0.1A
Watt meter4 digit, digital Watt meter, resolution 0.1W
ProtectionWith overload, short circuit, over temperature
Instantaneous power failure protection and alarm device
Working EnvironmentTemperature0 - 40 deg.℃
Humidity0 - 90% (Non condensation)
Warranty18 months

* The input voltage is factory selected.

Tips: Why we don't use frequency higher than 50Hz/60Hz?
Why we don't go to higher frequencies, like 100Hz or 120Hz, or even 400Hz like on aircraft. This would reduce the transformer and generator sizes even more. The main issue would be in change management if there was to be a change. Because then all our electronic gadgets would no longer work on the mains. Although it would make the design of consumer electronics a lot cheaper if everyone used the same standard. But that would be a colossal task to convince the Americans that their transmission medium is against the rest of the world's standard. It's bad enough that they don't want to adopt the metric standard.

It is generally accepted that Nikola Tesla chose 60 Hz as the lowest frequency that would not cause street lighting to flicker visibly. The origin of the 50 Hz frequency is open to debate but seems likely to be a rounding off of 60Hz to the 1 2 5 10 structure popular with metric standards.
