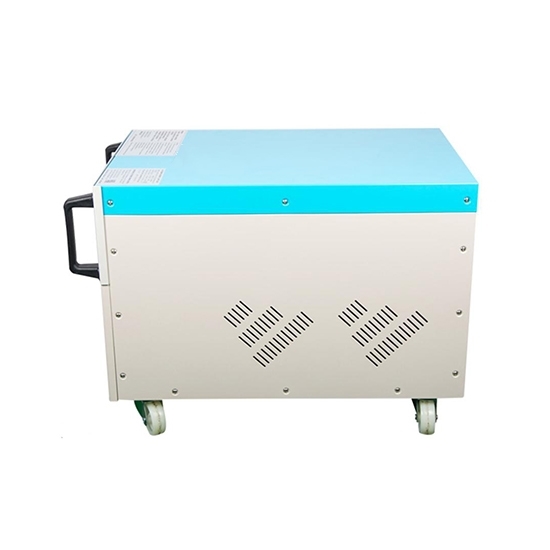

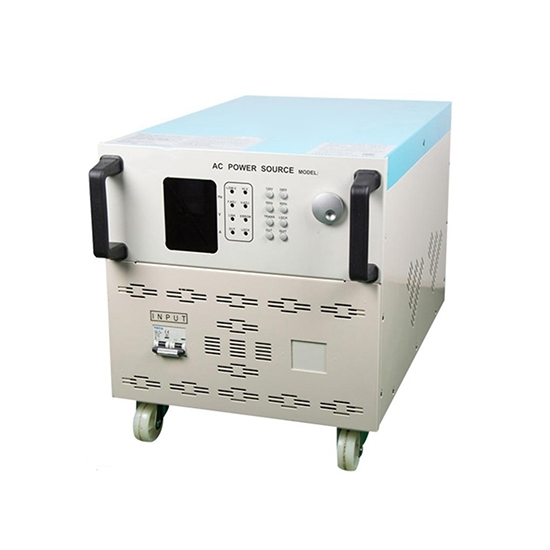

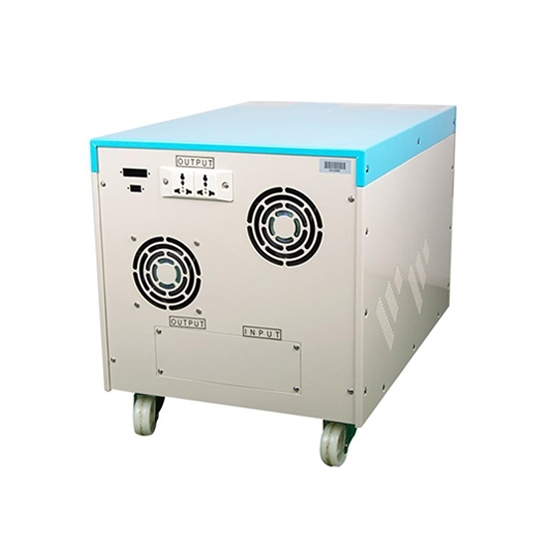

15kVA 400Hz To 50Hz/60Hz Frequency Converter

15kVA 400Hz To 50Hz/60Hz Frequency Converter
15kVA 400Hz To 50Hz/60Hz Frequency Converter
15kVA 400Hz To 50Hz/60Hz Frequency Converter
Free Shipping
15kVA 400Hz To 50Hz/60Hz Frequency Converter
15kVA 400Hz To 50Hz/60Hz Frequency Converter
15kVA 400Hz To 50Hz/60Hz Frequency Converter
15kVA 400Hz To 50Hz/60Hz Frequency Converter
0 reviews • Write a review
from Save -2%
$10,177.78
$10,364.96
Ex Tax: $10,177.78
  • Stock: In Stock
  • Model: HZTOHZ-G96
  • Weight: 1.00
  • SKU: HZTOHZ-G96

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1 KVA Frequency Converter 60Hz To 50Hz
Quickview
1 KVA Frequency Converter 60Hz To 50Hz
$1,549.97 $1,799.00
Ex Tax:$1,549.97
Add to Cart Add to Wish List Compare this Product
10 KVA Pure Sine Wave Frequency Converter
Quickview
10 KVA Pure Sine Wave Frequency Converter
$4,676.54 $4,999.00
Ex Tax:$4,676.54
Add to Cart Add to Wish List Compare this Product
10 KVA Three Phase 220V/380V Frequency Converter
Quickview
10 KVA Three Phase 220V/380V Frequency Converter
$5,990.77 $6,499.00
Ex Tax:$5,990.77
Add to Cart Add to Wish List Compare this Product
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
Quickview
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
$27,492.00 $29,890.00
Ex Tax:$27,492.00
Add to Cart Add to Wish List Compare this Product
10kVA 400Hz To 50Hz/60Hz Frequency Converter
Quickview
10kVA 400Hz To 50Hz/60Hz Frequency Converter
$7,166.67 $7,325.82
Ex Tax:$7,166.67
Add to Cart Add to Wish List Compare this Product
15 KVA 60Hz To 50Hz Frequency Converter
Quickview
15 KVA 60Hz To 50Hz Frequency Converter
$5,615.54 $5,990.00
Ex Tax:$5,615.54
Add to Cart Add to Wish List Compare this Product
15 KVA Three Phase Frequency Converter
Quickview
15 KVA Three Phase Frequency Converter
$7,189.58 $7,999.00
Ex Tax:$7,189.58
Add to Cart Add to Wish List Compare this Product

400Hz to 50Hz/60Hz frequency converter with 15kVA capacity, 115 volt input, LED display, single to single/split phase converters are provided.

Specification

ModelHZ-AFC-1115
Input Specifications
PhaseSingle phase
Voltage115V±10% (Please contact us for other input voltage)
Frequency400Hz±5%
Output Specifications
Capacity15kVA
Phase (Optional)*Single phase (L, N, G)
Spilt phase (L1, L2, N+G; L1+L2=240V, L+N=120V)
Max Current0-150V Range126A
0-300V Range63A
VoltageL-N (Line to Neutral)Low Range 0-150V/ High Range 0-300V
Transient Response30ms
Frequency (Optional)*45-65Hz Adjustable, 45~400Hz Variable
Note:
When the output is 400Hz, the load capacity can only reach 50% of the rated capacity;
When the output is ≤120Hz, the load capacity can reach 100% of the rated value.
Total Harmonic Distortion (THD)≤1% (Resistive Load, Full load 2%)
Voltage Regulation≤1%
Load Regulation≤1% (Resistive Load)
Frequency Regulation≤0.01%
Efficiency≥85% ( At full load)
ProtectionOver current, Short circuit, Over temperature, Over load, Phase deficient, Low-voltage protection.
Overload Capacity100%110%130%Output>150%, power supply will be cut off immediately.
MeasurementCurrent (RMS)Resolution: 1mA/10mA or 10mA/100mA
Accuracy: 0.3%F.S.±3; Counts±0.1%/100Hz
Voltage (RMS)Resolution: 0.1V
Accuracy: 0.3% F.S.±2; Counts±0.1%/100Hz
FrequencyResolution: 0.01Hz/0.1Hz
Accuracy: 0.3% F.S.±2; Counts±0.05%/100Hz
Working Environment
Operating Temperature0 - 40°C/ 32 - 104°F
Relative Humidity10-90%,（Non-condensing)
Functions
4 Digits LED DisplayVoltage, Current, Frequency
InterfaceRS232 (Optional: RS485, GPIB, just contact us)
Memory FunctionWith power-off memory function, remember the last output parameters automatically.
Sync Output SignalSupport
Mechanical Specifications
Dimensions (W x H x D)432 x 475 x 595mm
Weights150kg


Tips: Something should be noted when buying a frequency converter
Due to the development of scientific research, the precision of industrial equipment and instruments is constantly improving. The requirements of industrial equipment for power supply are also gradually improved. Single-phase frequency converters, three-phase frequency converters, 400Hz frequency converters provide stable current to the equipment. They are popular with many businesses.

There are many types of frequency converter, and the performance is different in the current market. When we choose the frequency converter, we must pay attention to the input power supply voltage, frequency, output power, load characteristics and so on. In addition, the matching degree of frequency converter and corresponding motor should be considered to give full play to the energy saving and stability of frequency converter, so as to ensure the operation of the equipment.

We should also pay attention to the installation after buying the frequency converter. Its installation environment must be clean and dust-free as far as possible, and has good ventilation and heat dissipation environment. When the frequency converter is installed, the minimum heat dissipation distance must be left at the top and side to facilitate the heat dissipation of the converter.
