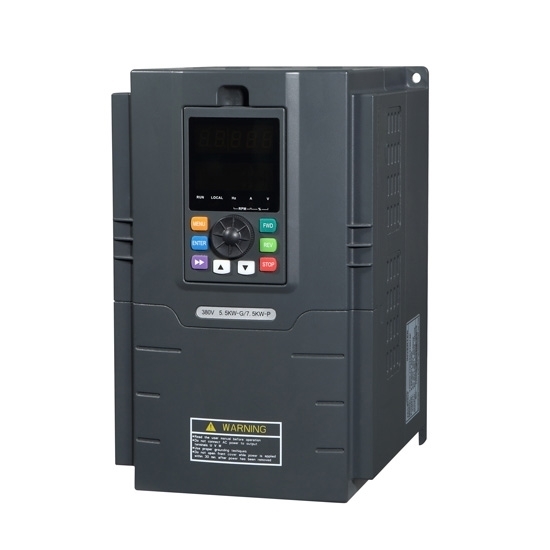

10 Hp (7.5 KW) VFD, Three Phase 220V, 440V, 480V

10 Hp (7.5 KW) VFD, Three Phase 220V, 440V, 480V
10 Hp (7.5 KW) VFD, Three Phase 220V, 440V, 480V
0 reviews • Write a review
from Save -16%
$463.25
$549.00
Ex Tax: $463.25
  • Stock: In Stock
  • Model: HZTOHZ-G18
  • Weight: 1.00
  • SKU: HZTOHZ-G18

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1 Hp (0.75 KW) Single Phase Output VFD
Quickview
1 Hp (0.75 KW) Single Phase Output VFD
$196.32 $220.00
Ex Tax:$196.32
Add to Cart Add to Wish List Compare this Product
1 Hp VFD, Single Phase To Three Phase VFD
Quickview
1 Hp VFD, Single Phase To Three Phase VFD
$159.32 $199.60
Ex Tax:$159.32
Add to Cart Add to Wish List Compare this Product
1/2 Hp VFD, Single Phase To Three Phase VFD
Quickview
1/2 Hp VFD, Single Phase To Three Phase VFD
$149.10 $197.00
Ex Tax:$149.10
Add to Cart Add to Wish List Compare this Product
10 Hp VFD, Single Phase Input To Three Phase Converter
Quickview
10 Hp VFD, Single Phase Input To Three Phase Converter
$992.32 $1,109.98
Ex Tax:$992.32
Add to Cart Add to Wish List Compare this Product
100 Hp (75 KW) VFD, 3 Phase 230V, 400V, 460V
Quickview
100 Hp (75 KW) VFD, 3 Phase 230V, 400V, 460V
$3,197.41 $3,573.00
Ex Tax:$3,197.41
Add to Cart Add to Wish List Compare this Product
125 Hp (90 KW) VFD, 3 Phase 220V, 415V, 480V
Quickview
125 Hp (90 KW) VFD, 3 Phase 220V, 415V, 480V
$3,741.60 $4,298.00
Ex Tax:$3,741.60
Add to Cart Add to Wish List Compare this Product

10 hp variable frequency drive, three phase 220V /440V /480V ±15%.

Specification:

BasicsModelGK3000-4T0075G/ GK3000-2T0075G
Capacity10 hp (7.5 kW)
Shipping weight6.5 kg
Dimension280*181*183 mm
I/O FeatureRated current17A at 380V ~ 480V, 32A at 220V ~ 240V
Input voltage3 phase 220V /440V /480V AC ±15% (Optional)
Input frequency50Hz/ 60Hz
Output voltage3 phase AC 0~input voltage
Output frequency0.00~400.00Hz
Over load capacity150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control FeatureControl modeV/F control;
Sensorless vector control;
CommunicationRS485
Speed regulation1:100
Start torque150% of rating torque at 1 Hz
Speed control accuracy≤±0.5% of rating synchronous speed
Frequency precisionDigital setting: max frequency x± 0.01%;
Analog setting: max frequency x± 0.2%
Frequency resolutionAnalog setting: 0.1% of max frequency;
Digital setting: 0.01Hz
Torque boostAutomatic torque boost, manual torque boost 0.1%~30.0%
Interior PID controllerBe convenient to make closed-loop system
Automatic energy save runningOptimize V/F curve automatically based on the load to realize power save running
Automatic voltage regulation (AVR)Can keep constant output voltage when power source voltage varies.
Automatic current limitingLimit running current automatically to avoid frequent over-current which will cause trip
EnvironmentEnclosure ratingIP 20
Temperature–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
Humidity5%-95%, without condensation
Altitude≤1000m; VFD will be derated if above 1000m
Impingement and oscillationNormal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
Store environment–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight



Tips: Small rating VFD will damage if connect it to high rating transformer

If your small rating variable frequency drive (VFD) getting damage then there may be a voltage spikes issue because according to the thumb rule if the transformer KVA rating is 10 times of KVA rating of VFD, say a 100 kVA transformer for 10 hp VFD, then it is subjected to voltage spikes that can damage it. Line reactors are the best way to compensate that but mostly users don't use the reactors for small rating VFDs.

If your VFD is large enough compared to your generator then there can be issues with the semi-conductors on the VFD firing correctly. This was an issue one of VFDs experts always checked when large VFDs needed to be run by a back-up generator.

You may always want to look at the power quality during start-up. Voltage spike will damage the semiconductors on the front end to the VFD. So if you were using the reactors then problem may be different but if you don't then I suggest you to use reactors.
