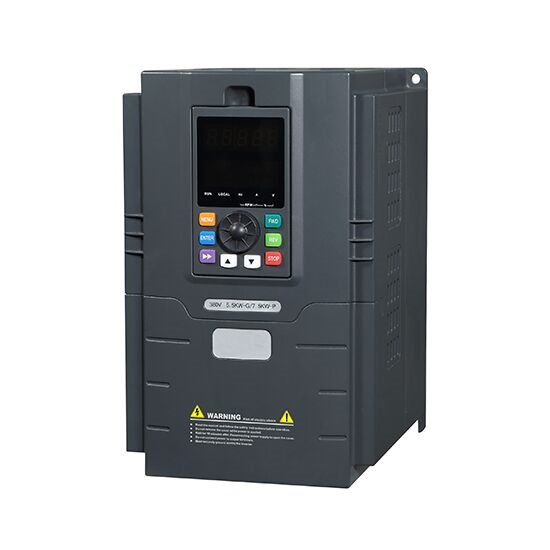

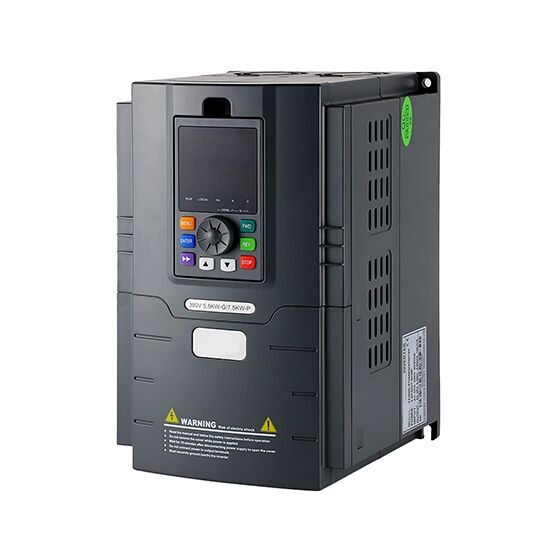

10 Hp VFD, Single Phase Input To Three Phase Converter

10 Hp VFD, Single Phase Input To Three Phase Converter
10 Hp VFD, Single Phase Input To Three Phase Converter
10 Hp VFD, Single Phase Input To Three Phase Converter
10 Hp VFD, Single Phase Input To Three Phase Converter
10 Hp VFD, Single Phase Input To Three Phase Converter
0 reviews • Write a review
from Save -11%
$992.32
$1,109.98
Ex Tax: $992.32
  • Stock: In Stock
  • Model: HZTOHZ-G85
  • Weight: 1.00
  • SKU: HZTOHZ-G85

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1 Hp (0.75 KW) Single Phase Output VFD
Quickview
1 Hp (0.75 KW) Single Phase Output VFD
$196.32 $220.00
Ex Tax:$196.32
Add to Cart Add to Wish List Compare this Product
1 Hp VFD, Single Phase To Three Phase VFD
Quickview
1 Hp VFD, Single Phase To Three Phase VFD
$159.32 $199.60
Ex Tax:$159.32
Add to Cart Add to Wish List Compare this Product
1/2 Hp VFD, Single Phase To Three Phase VFD
Quickview
1/2 Hp VFD, Single Phase To Three Phase VFD
$149.10 $197.00
Ex Tax:$149.10
Add to Cart Add to Wish List Compare this Product
10 Hp (7.5 KW) VFD, Three Phase 220V, 440V, 480V
Quickview
10 Hp (7.5 KW) VFD, Three Phase 220V, 440V, 480V
$463.25 $549.00
Ex Tax:$463.25
Add to Cart Add to Wish List Compare this Product
100 Hp (75 KW) VFD, 3 Phase 230V, 400V, 460V
Quickview
100 Hp (75 KW) VFD, 3 Phase 230V, 400V, 460V
$3,197.41 $3,573.00
Ex Tax:$3,197.41
Add to Cart Add to Wish List Compare this Product
125 Hp (90 KW) VFD, 3 Phase 220V, 415V, 480V
Quickview
125 Hp (90 KW) VFD, 3 Phase 220V, 415V, 480V
$3,741.60 $4,298.00
Ex Tax:$3,741.60
Add to Cart Add to Wish List Compare this Product

Customize made 10 hp variable frequency drive, 1-phase 220v-240v input, 3-phase output, it can be considered as a phase converter.

Specification:

BasicsModelGK3000-2S0075G
Capacity10 hp (7.5 kW)
Shipping weight18 kg
Dimension423*258*230 mm
I/O FeatureRated current32 A
Input voltage1 phase 220V /230V /240V AC
Input frequency50Hz/60Hz
Output voltage3 phase AC 0~input voltage
Output frequency0.00~400.00Hz
Over load capacity150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control FeatureControl modeV/F control;
Sensorless vector control;
CommunicationRS485
Speed regulation1:100
Start torque150% of rating torque at 1 Hz
Speed control accuracy≤±0.5% of rating synchronous speed
Frequency precisionDigital setting: max frequency x± 0.01%;
Analog setting: max frequency x± 0.2%
Frequency resolutionAnalog setting: 0.1% of max frequency;
Digital setting: 0.01Hz
Torque boostAutomatic torque boost, manual torque boost 0.1%~30.0%
Interior PID controllerBe convenient to make closed-loop system
Automatic energy save runningOptimize V/F curve automatically based on the load to realize power save running
Automatic voltage regulation (AVR)Can keep constant output voltage when power source voltage varies.
Automatic current limitingLimit running current automatically to avoid frequent over-current which will cause trip
EnvironmentEnclosure ratingIP 20
Temperature–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
Humidity5%-95%, without condensation
Altitude≤1000m; VFD will be derated if above 1000m
Impingement and oscillationNormal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
Store environment–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight


Tips: Can a 3 phase motor run on single phase power supply?
There is static phase converter that can provide a simulated three phase from single phase power supply, there is also rotary phase converter can do the job, the rotary solution seeming to be more reliable than static phase converter. Possibly the best way is to supply a Variable Frequency Drive (VFD), if you go with a VFD then you typically need to upsize the VFD (example a 10 hp VFD for a 7.5 hp application), this is because the input devices will be sized for 3 phase, and you will need 2 of them to carry 1.73 (square root of 3) more current, and your trough in the uncorrected resulting wave form will be deeper so you will need upsize the capacitance in the filter to fill this trough in.
