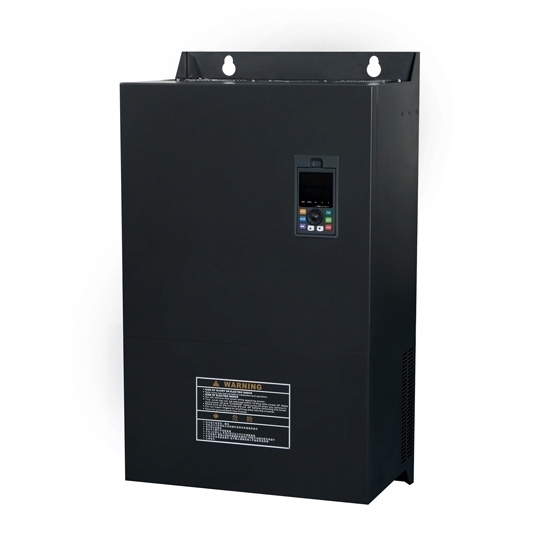

100 Hp (75 KW) VFD, 3 Phase 230V, 400V, 460V

100 Hp (75 KW) VFD, 3 Phase 230V, 400V, 460V
100 Hp (75 KW) VFD, 3 Phase 230V, 400V, 460V
0 reviews • Write a review
from Save -11%
$3,197.41
$3,573.00
Ex Tax: $3,197.41
  • Stock: In Stock
  • Model: HZTOHZ-G43
  • Weight: 1.00
  • SKU: HZTOHZ-G43

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1 Hp (0.75 KW) Single Phase Output VFD
Quickview
1 Hp (0.75 KW) Single Phase Output VFD
$196.32 $220.00
Ex Tax:$196.32
Add to Cart Add to Wish List Compare this Product
1 Hp VFD, Single Phase To Three Phase VFD
Quickview
1 Hp VFD, Single Phase To Three Phase VFD
$159.32 $199.60
Ex Tax:$159.32
Add to Cart Add to Wish List Compare this Product
1/2 Hp VFD, Single Phase To Three Phase VFD
Quickview
1/2 Hp VFD, Single Phase To Three Phase VFD
$149.10 $197.00
Ex Tax:$149.10
Add to Cart Add to Wish List Compare this Product
10 Hp (7.5 KW) VFD, Three Phase 220V, 440V, 480V
Quickview
10 Hp (7.5 KW) VFD, Three Phase 220V, 440V, 480V
$463.25 $549.00
Ex Tax:$463.25
Add to Cart Add to Wish List Compare this Product
10 Hp VFD, Single Phase Input To Three Phase Converter
Quickview
10 Hp VFD, Single Phase Input To Three Phase Converter
$992.32 $1,109.98
Ex Tax:$992.32
Add to Cart Add to Wish List Compare this Product
125 Hp (90 KW) VFD, 3 Phase 220V, 415V, 480V
Quickview
125 Hp (90 KW) VFD, 3 Phase 220V, 415V, 480V
$3,741.60 $4,298.00
Ex Tax:$3,741.60
Add to Cart Add to Wish List Compare this Product

100 hp (75 kW) variable frequency drive for AC motor speed controls, three phase 230V, 400V, 460V for selection.

Specification:

BasicsModelGK3000-4T0750G/ GK3000-2T0750G
Capacity100 hp (75 kW)
Shipping weight50 kg
Dimension618*398*306 mm
I/O FeatureRated current152A at 380V ~ 480V, 304A at 220V ~ 240V
Input voltage3 phase 230V /400V /460V AC ±15% (Optional)
Input frequency50Hz/ 60Hz
Output voltage3 phase AC 0~input voltage
Output frequency0.00~400.00Hz
Over load capacity150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control FeatureControl modeV/F control;
Sensorless vector control;
CommunicationRS485
Speed regulation1:100
Start torque150% of rating torque at 1 Hz
Speed control accuracy≤±0.5% of rating synchronous speed
Frequency precisionDigital setting: max frequency x± 0.01%;
Analog setting: max frequency x± 0.2%
Frequency resolutionAnalog setting: 0.1% of max frequency;
Digital setting: 0.01Hz
Torque boostAutomatic torque boost, manual torque boost 0.1%~30.0%
Interior PID controllerBe convenient to make closed-loop system
Automatic energy save runningOptimize V/F curve automatically based on the load to realize power save running
Automatic voltage regulation (AVR)Can keep constant output voltage when power source voltage varies.
Automatic current limitingLimit running current automatically to avoid frequent over-current which will cause trip
EnvironmentEnclosure ratingIP 20
Temperature–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
Humidity5%-95%, without condensation
Altitude≤1000m; VFD will be derated if above 1000m
Impingement and oscillationNormal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
Store environment–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight



Tips: What's the lowest and highest operating frequency/speed of a VFD?
For a universal variable frequency drive (VFD), in general the lowest frequency/speed is zero and the highest frequency will depend upon the driven equipment. The motor for a water pump can run as high as 15000 rpm. Generally in power plants and auxiliaries this speed is 1500 rpm or 3000 rpm.

The VFD is supposed operate from the lowest to highest speed. The VFD manufacturer will give the range, e.g. 0Hz to 400Hz. Running it outside this range is certainly catastrophic especially at higher end. The balancing should be valid for the entire range not just one speed (Within tolerances).
