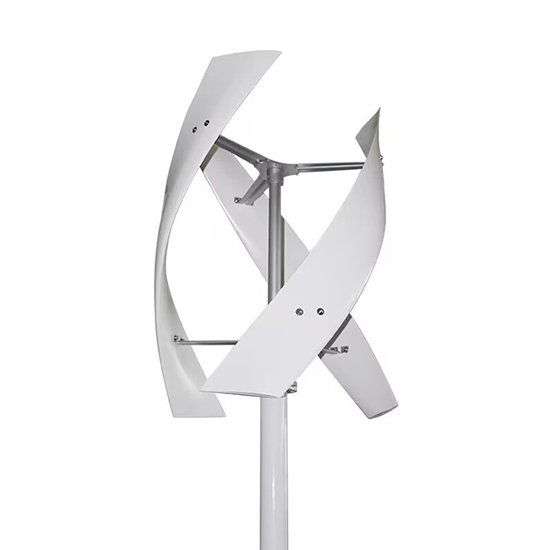

600W Vertical Axis Wind Turbine, 12V/24V/48V
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: HZTOHZ-VAWT-X5-600
- Weight: 1.00
- SKU: HZTOHZ-VAWT-X5-600
Buy a 600 watt vertical axis wind turbine, which is available in 12V/24V/48V ratings and with a rated wind speed of 12m/s. Vertical axis wind turbines are widely used for residential and commercial applications due to their compact design and ease of installation.
Specification
| Model | HZTOHZ-VAWT-X5-600 |
| Rated Power | 600W |
| Rated Voltage | 12V/24V/48 |
| With Controller | Yes |
| Start-Up Wind Speed | 2m/s |
| Rated Wind Speed | 12m/s |
| Survival Wind Speed | 50m/s |
| Wind Wheel Diameter/Height | 0.53m/0.75m |
| Number of Blades | 3 |
| Blades Material | Nylon |
| Fuselage Material | Aluminum alloy |
| Magnetic Steel | NdFeB |
| Generator Type | Three-phase AC permanent magnetically suspended generators |
| Controller System | Electromagnetic brakes |
| Speed Regulation | 360° Automatically Adjust Windard |
| Installation Flange | DN20 |
| Degree of protection | IP54 |
| Gross Weight | 22kg |
| Top Net Weight | 23kg |
| Dimension | 1060*270*490mm |

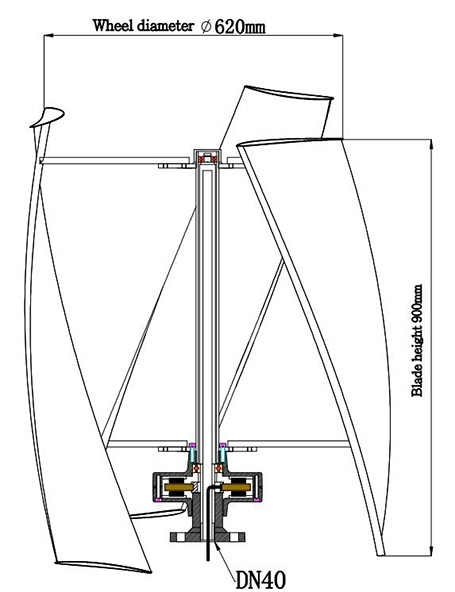

Dimension (Unit: mm)
Applications

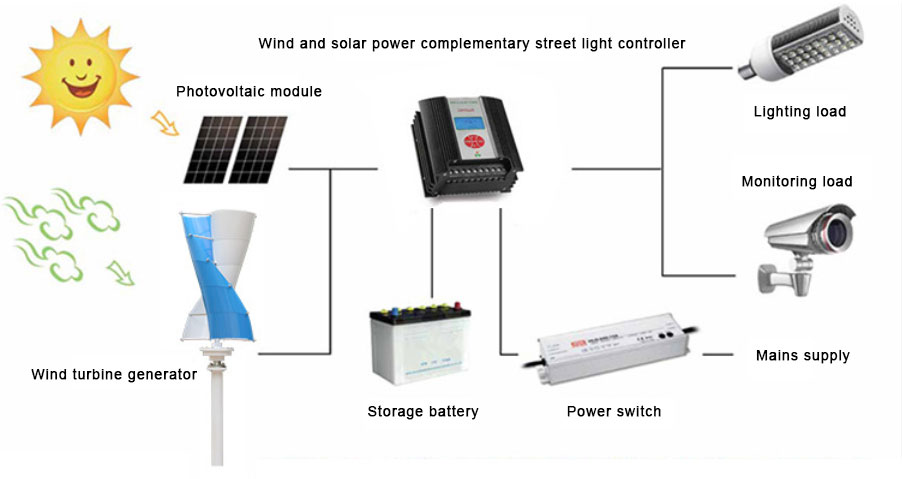

The battery is charged by the wind turbine and solar panels through the controller, and the DC output port of the controller directly supplies power to the DC load. On days without wind or light, the power output by the wind turbine and solar panels is not enough to charge the battery, which can cause the battery to be under-voltage. In this case, the controller output dry contact control signal automatically switches to the grid power to supply the load.
Tips: What is the difference between a vertical wind turbine and a horizontal axis wind turbine?
- Orientation: Vertical wind turbines have a vertical axis and the blades rotate around it, whereas horizontal axis wind turbines have a horizontal axis and the blades rotate around it.
- Blade Design: Vertical wind turbines have small, blade-like structures that rotate vertically, whereas horizontal axis wind turbines have larger, flat blades that rotate horizontally.
- Installation: Vertical wind turbines are usually smaller and easier to install in urban areas, whereas horizontal axis wind turbines require more space and are typically installed in rural areas.
- Efficiency: Horizontal axis wind turbines tend to be more efficient as they can capture more wind and generate more power, whereas vertical wind turbines are less efficient due to their smaller blade size.
- Maintenance: Vertical wind turbines require less maintenance as they have fewer moving parts, whereas horizontal axis wind turbines require more maintenance as they have more components that need to be checked and maintained.
- Cost: Vertical wind turbines are generally less expensive, but also produce less energy, whereas horizontal axis wind turbines are more expensive, but produce more energy.
