5 KVA Single Phase 230V 50Hz To 110V 60Hz Converter

5 KVA Single Phase 230V 50Hz To 110V 60Hz Converter
5 KVA Single Phase 230V 50Hz To 110V 60Hz Converter
5 KVA Single Phase 230V 50Hz To 110V 60Hz Converter
5 KVA Single Phase 230V 50Hz To 110V 60Hz Converter
5 KVA Single Phase 230V 50Hz To 110V 60Hz Converter
5 KVA Single Phase 230V 50Hz To 110V 60Hz Converter
5 KVA Single Phase 230V 50Hz To 110V 60Hz Converter
5 KVA Single Phase 230V 50Hz To 110V 60Hz Converter
5 KVA Single Phase 230V 50Hz To 110V 60Hz Converter
5 KVA Single Phase 230V 50Hz To 110V 60Hz Converter
5 KVA Single Phase 230V 50Hz To 110V 60Hz Converter
5 KVA Single Phase 230V 50Hz To 110V 60Hz Converter
5 KVA Single Phase 230V 50Hz To 110V 60Hz Converter
5 KVA Single Phase 230V 50Hz To 110V 60Hz Converter
5 KVA Single Phase 230V 50Hz To 110V 60Hz Converter
0 reviews • Write a review
from Save -13%
$3,109.32
$3,579.00
Ex Tax: $3,109.32
  • Stock: In Stock
  • Model: HZTOHZ-G68
  • Weight: 1.00
  • SKU: HZTOHZ-G68

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1 KVA Frequency Converter 60Hz To 50Hz
Quickview
1 KVA Frequency Converter 60Hz To 50Hz
$1,549.97 $1,799.00
Ex Tax:$1,549.97
Add to Cart Add to Wish List Compare this Product
10 KVA Pure Sine Wave Frequency Converter
Quickview
10 KVA Pure Sine Wave Frequency Converter
$4,676.54 $4,999.00
Ex Tax:$4,676.54
Add to Cart Add to Wish List Compare this Product
10 KVA Three Phase 220V/380V Frequency Converter
Quickview
10 KVA Three Phase 220V/380V Frequency Converter
$5,990.77 $6,499.00
Ex Tax:$5,990.77
Add to Cart Add to Wish List Compare this Product
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
Quickview
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
$27,492.00 $29,890.00
Ex Tax:$27,492.00
Add to Cart Add to Wish List Compare this Product
10kVA 400Hz To 50Hz/60Hz Frequency Converter
Quickview
10kVA 400Hz To 50Hz/60Hz Frequency Converter
$7,166.67 $7,325.82
Ex Tax:$7,166.67
Add to Cart Add to Wish List Compare this Product
15 KVA 60Hz To 50Hz Frequency Converter
Quickview
15 KVA 60Hz To 50Hz Frequency Converter
$5,615.54 $5,990.00
Ex Tax:$5,615.54
Add to Cart Add to Wish List Compare this Product

5 kVA single phase static 50Hz/60Hz frequency converter, step down 230V (220v, 240v) to 110V (120v), step up 110V to 230V etc, adjustable output Hertz and Volts according to every equipment required specification.

Specification

ModelHZ-50-1105
Capacity5 kVA
Dimension550*400*670mm
Weight75 kg
InputVoltage1 Phase 2 Wire: 110V/120V, 220V/230V/240V ± 10% (option *)
Frequency50 Hz, 60 Hz or 400 Hz ± 5%
OutputVoltage, current110V Setting (Low grade): 0-150V, 41.6A
220V Setting 0-300V (High grade): 0-300V, 20.8A
Load stabilization Rate≤±1%
Frequency50Hz, 60Hz up to 400Hz (option)
Note:
-When the output is 400Hz, the load capacity can only reach 50% of the rated capacity.
-When the output is ≤120Hz, the load capacity can reach 100% of the rated value.
-You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
Frequency Stability≤±0.01%
Harmonic DistortionPure Sine Wave ≤2%

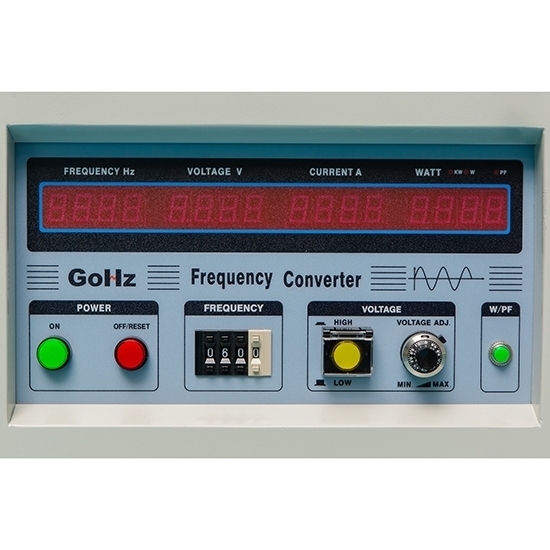

Frequency meter4 digit, digital frequency meter, resolution 0.1Hz/Step
Voltmeter4 digit, digital voltage meter, resolution 0.1V
Ammeter4 digit, digital ammeter, resolution 0.1A
Watt meter4 digit, digital Watt meter, resolution 0.1W
ProtectionWith overload, short circuit, over temperature
Instantaneous power failure protection and alarm device
Working EnvironmentTemperature0 - 40 deg.℃
Humidity0 - 90% (Non condensation)
Warranty18 months

* The input voltage is factory selected.

Tips: 50 Hz transformer on 60 Hz power supply
50 Hz transformer can be used for 60 Hz operation, but reverse operation (i.e 60 Hz transformer on 50 Hz operation) will result in damaging the transformer. Theory goes, each magnetic material which could be used in a transformer’s core has a limit on how many flux lines it can handle.

The lower the operating frequency the more flux lines that are generated. Operating a transformer at 50Hz generates 20% more flux lines than at 60Hz power supply. As the number of flux lines approaches the magnetic material's limit, the heat in both the transformer's core and its coil wires increases, and under certain circumstances, unpredictably so. This can result in a transformer that exceeds safe temperature levels. Therefore, a transformer designed to run at 50Hz will simply run cooler at 60Hz. But one designed only for 60Hz may overheat if subjected to 50Hz.

i.e. from 60Hz to 50Hz, your transformer impedance will drop by 20%, therefore increasing the primary current and could saturate the core by having a higher flux. If saturation occurs, then the current flow in the primary can increase even higher and overheat.
