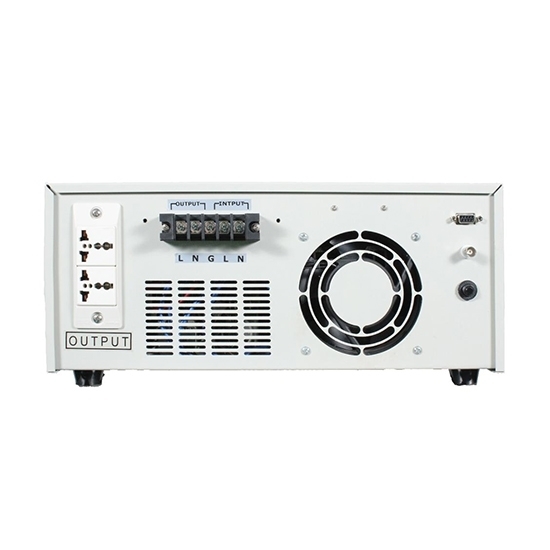

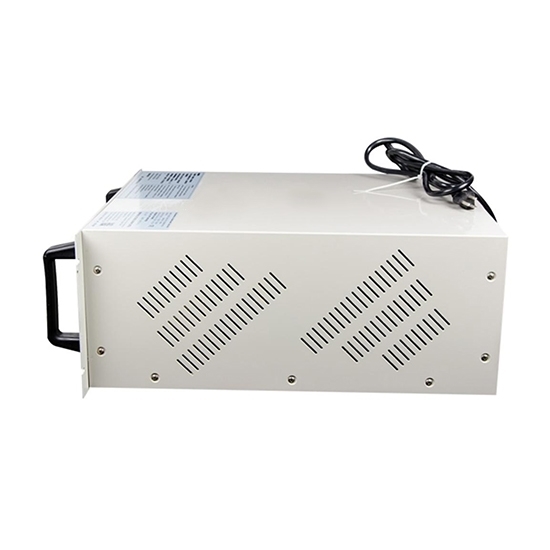

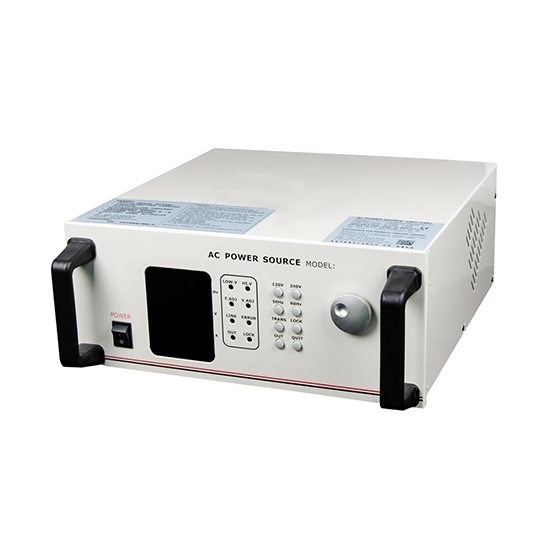

5kVA 400Hz To 50Hz/60Hz Frequency Converter

5kVA 400Hz To 50Hz/60Hz Frequency Converter
5kVA 400Hz To 50Hz/60Hz Frequency Converter
5kVA 400Hz To 50Hz/60Hz Frequency Converter
5kVA 400Hz To 50Hz/60Hz Frequency Converter
5kVA 400Hz To 50Hz/60Hz Frequency Converter
5kVA 400Hz To 50Hz/60Hz Frequency Converter
5kVA 400Hz To 50Hz/60Hz Frequency Converter
0 reviews • Write a review
from Save -4%
$4,029.36
$4,206.77
Ex Tax: $4,029.36
  • Stock: In Stock
  • Model: HZTOHZ-G94
  • Weight: 1.00
  • SKU: HZTOHZ-G94

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1 KVA Frequency Converter 60Hz To 50Hz
Quickview
1 KVA Frequency Converter 60Hz To 50Hz
$1,549.97 $1,799.00
Ex Tax:$1,549.97
Add to Cart Add to Wish List Compare this Product
10 KVA Pure Sine Wave Frequency Converter
Quickview
10 KVA Pure Sine Wave Frequency Converter
$4,676.54 $4,999.00
Ex Tax:$4,676.54
Add to Cart Add to Wish List Compare this Product
10 KVA Three Phase 220V/380V Frequency Converter
Quickview
10 KVA Three Phase 220V/380V Frequency Converter
$5,990.77 $6,499.00
Ex Tax:$5,990.77
Add to Cart Add to Wish List Compare this Product
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
Quickview
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
$27,492.00 $29,890.00
Ex Tax:$27,492.00
Add to Cart Add to Wish List Compare this Product
10kVA 400Hz To 50Hz/60Hz Frequency Converter
Quickview
10kVA 400Hz To 50Hz/60Hz Frequency Converter
$7,166.67 $7,325.82
Ex Tax:$7,166.67
Add to Cart Add to Wish List Compare this Product
15 KVA 60Hz To 50Hz Frequency Converter
Quickview
15 KVA 60Hz To 50Hz Frequency Converter
$5,615.54 $5,990.00
Ex Tax:$5,615.54
Add to Cart Add to Wish List Compare this Product
15 KVA Three Phase Frequency Converter
Quickview
15 KVA Three Phase Frequency Converter
$7,189.58 $7,999.00
Ex Tax:$7,189.58
Add to Cart Add to Wish List Compare this Product

5kVA static AC frequency converter for sale. It has 115V 400Hz high frequency, 50Hz/60Hz pure sine wave output, more than 85% efficiency at full load.

Specification

ModelHZ-AFC-1105
Input Specifications
PhaseSingle phase
Voltage115V±10% (Please contact us for other input voltage)
Frequency400Hz±5%
Output Specifications
Capacity5kVA
Phase (Optional)*Single phase (L, N, G)
Spilt phase (L1, L2, N+G; L1+L2=240V, L+N=120V)
Max Current0-150V Range42A
0-300V Range21A
VoltageL-N (Line to Neutral)Low Range 0-150V/ High Range 0-300V
Transient Response30ms
Frequency (Optional)*45-65Hz Adjustable, 45~400Hz Variable
Note:
When the output is 400Hz, the load capacity can only reach 50% of the rated capacity;
When the output is ≤120Hz, the load capacity can reach 100% of the rated value.
Total Harmonic Distortion (THD)≤1% (Resistive Load, Full load 2%)
Voltage Regulation≤1%
Load Regulation≤1% (Resistive Load)
Frequency Regulation≤0.01%
Efficiency≥85% ( At full load)
ProtectionOver current, Short circuit, Over temperature, Over load, Phase deficient, Low-voltage protection.
Overload Capacity100%110%130%Output>150%, power supply will be cut off immediately.
MeasurementCurrent (RMS)Resolution: 1mA/10mA or 10mA/100mA
Accuracy: 0.3%F.S.±3; Counts±0.1%/100Hz
Voltage (RMS)Resolution: 0.1V
Accuracy: 0.3% F.S.±2; Counts±0.1%/100Hz
FrequencyResolution: 0.01Hz/0.1Hz
Accuracy: 0.3% F.S.±2; Counts±0.05%/100Hz
Working Environment
Operating Temperature0 - 40°C/ 32 - 104°F
Relative Humidity10-90%,（Non-condensing)
Functions
4 Digits LED DisplayVoltage, Current, Frequency
InterfaceRS232 (Optional: RS485, GPIB, just contact us)
Memory FunctionWith power-off memory function, remember the last output parameters automatically.
Sync Output SignalSupport
Mechanical Specifications
Dimensions (W x H x D)430 x 192 x 510mm
Weights55kg


Tips: Why does the aircraft use 400Hz frequency converter?
The aircraft chose 400Hz instead of the traditional 50Hz/60Hz because it needed to support heavier units. The 400Hz generator is lighter, which can save fuel and make the fuselage lighter. If the frequency of the system is high, the copper and steel materials of the generator and transformer will be less. Correspondingly, it is light in weight and low in cost. The disadvantages are the increase of inductive reactance, the decrease of capacitive reactance, the increase of loss and the decrease of transmission efficiency. On the contrary, low frequency will increase the material consumption, weight and cost of electrical equipment.

Therefore, in order to reduce the volume and weight, aviation generators are required to use high frequency. The transmission line on the plane is not too long, the loss is not the main contradiction. That is to say, 400Hz frequency converter is the best choice.
