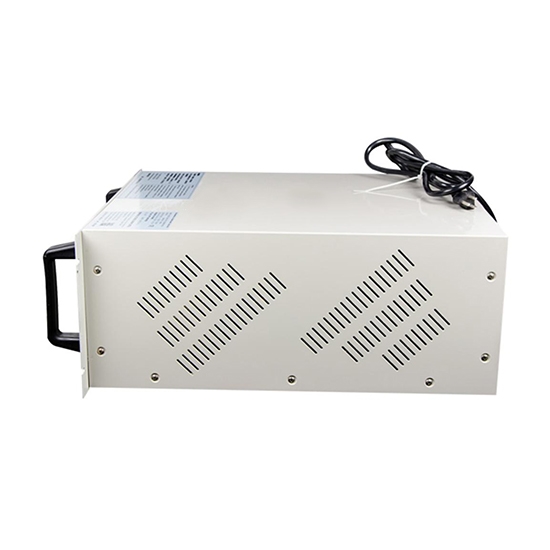

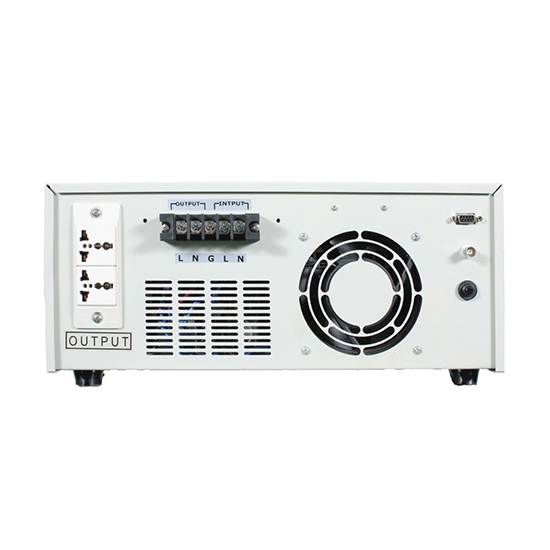

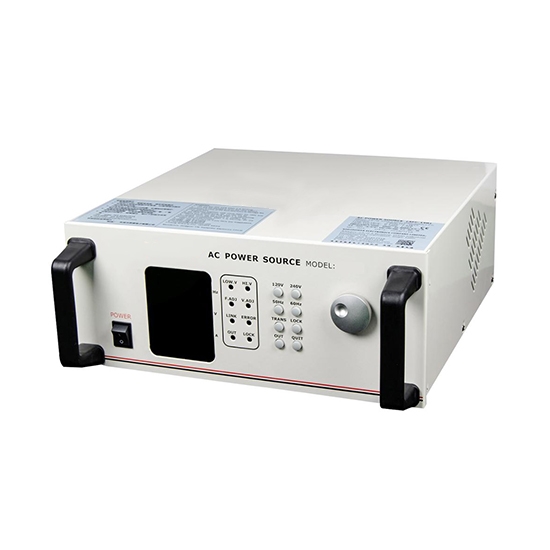

1kVA 400Hz To 50Hz/60Hz Frequency Converter

1kVA 400Hz To 50Hz/60Hz Frequency Converter
1kVA 400Hz To 50Hz/60Hz Frequency Converter
1kVA 400Hz To 50Hz/60Hz Frequency Converter
1kVA 400Hz To 50Hz/60Hz Frequency Converter
1kVA 400Hz To 50Hz/60Hz Frequency Converter
1kVA 400Hz To 50Hz/60Hz Frequency Converter
1kVA 400Hz To 50Hz/60Hz Frequency Converter
0 reviews • Write a review
from Save -8%
$2,169.23
$2,355.62
Ex Tax: $2,169.23
  • Stock: In Stock
  • Model: HZTOHZ-G91
  • Weight: 1.00
  • SKU: HZTOHZ-G91

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1 KVA Frequency Converter 60Hz To 50Hz
Quickview
1 KVA Frequency Converter 60Hz To 50Hz
$1,549.97 $1,799.00
Ex Tax:$1,549.97
Add to Cart Add to Wish List Compare this Product
10 KVA Pure Sine Wave Frequency Converter
Quickview
10 KVA Pure Sine Wave Frequency Converter
$4,676.54 $4,999.00
Ex Tax:$4,676.54
Add to Cart Add to Wish List Compare this Product
10 KVA Three Phase 220V/380V Frequency Converter
Quickview
10 KVA Three Phase 220V/380V Frequency Converter
$5,990.77 $6,499.00
Ex Tax:$5,990.77
Add to Cart Add to Wish List Compare this Product
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
Quickview
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
$27,492.00 $29,890.00
Ex Tax:$27,492.00
Add to Cart Add to Wish List Compare this Product
10kVA 400Hz To 50Hz/60Hz Frequency Converter
Quickview
10kVA 400Hz To 50Hz/60Hz Frequency Converter
$7,166.67 $7,325.82
Ex Tax:$7,166.67
Add to Cart Add to Wish List Compare this Product
15 KVA 60Hz To 50Hz Frequency Converter
Quickview
15 KVA 60Hz To 50Hz Frequency Converter
$5,615.54 $5,990.00
Ex Tax:$5,615.54
Add to Cart Add to Wish List Compare this Product
15 KVA Three Phase Frequency Converter
Quickview
15 KVA Three Phase Frequency Converter
$7,189.58 $7,999.00
Ex Tax:$7,189.58
Add to Cart Add to Wish List Compare this Product

Affordable price 1kVA frequency converter is a AC power source, converts 400Hz to 50Hz/60Hz or variable 45-400Hz frequency, 115V input, LED display.

Specification

ModelHZ-AFC-1101
Input Specifications
PhaseSingle phase
Voltage115V±10% (Please contact us for other input voltage)
Frequency400Hz±5%
Output Specifications
Capacity1kVA
Phase (Optional)*Single phase (L, N, G)
Spilt phase (L1, L2, N+G; L1+L2=240V, L+N=120V)
Max Current0-150V Range8.4A
0-300V Range4.2A
VoltageL-N (Line to Neutral)Low Range 0-150V/ High Range 0-300V
Transient Response30ms
Frequency (Optional)*45-65Hz Adjustable, 45~400Hz Variable
Note:
When the output is 400Hz, the load capacity can only reach 50% of the rated capacity;
When the output is ≤120Hz, the load capacity can reach 100% of the rated value.
Total Harmonic Distortion (THD)≤1% (Resistive Load, Full load 2%)
Voltage Regulation≤1%
Load Regulation≤1% (Resistive Load)
Frequency Regulation≤0.01%
Efficiency≥85% ( At full load)
ProtectionOver current, Short circuit, Over temperature, Over load, Phase deficient, Low-voltage protection.
Overload Capacity100%110%130%Output>150%, power supply will be cut off immediately.
MeasurementCurrent (RMS)Resolution: 1mA/10mA or 10mA/100mA
Accuracy: 0.3%F.S.±3; Counts±0.1%/100Hz
Voltage (RMS)Resolution: 0.1V
Accuracy: 0.3% F.S.±2; Counts±0.1%/100Hz
FrequencyResolution: 0.01Hz/0.1Hz
Accuracy: 0.3% F.S.±2; Counts±0.05%/100Hz
Working Environment
Operating Temperature0 - 40°C/ 32 - 104°F
Relative Humidity10-90%,（Non-condensing)
Functions
4 Digits LED DisplayVoltage, Current, Frequency
InterfaceRS232 (Optional: RS485, GPIB, just contact us)
Memory FunctionWith power-off memory function, remember the last output parameters automatically.
Sync Output SignalSupport
Mechanical Specifications
Dimensions (W x H x D)430 x 192 x 510mm
Weights35kg


Tips: 400Hz 115V frequency converters Features
400Hz 115V frequency converters are AC power source integrated with the IGBT/SPWM technology, simple operation but provides cleaner and reliable output voltage and frequency to achieve all kinds of industrial requirements.

1. 4 LED display measurements of voltage, current, frequency and power/PF.
2. Single phase 115 volt 400Hz input and dual output voltage ranges of 0-150V or 0-300V, output frequency of 50Hz/60Hz or 45-400Hz adjustable.
3. Standard RS232 interface, optional RS485 and GPIB interface.
4. High quality pure sine wave with output power rating from 500VA to 100kVA, which THD less than 1% at resistive load.
5. Comprehensive protection includes over voltage, over current, over load, input under voltage and over temperature with corresponding error codes.
