60 KVA Static 50Hz/60Hz Frequency Converter

60 KVA Static 50Hz/60Hz Frequency Converter
60 KVA Static 50Hz/60Hz Frequency Converter
60 KVA Static 50Hz/60Hz Frequency Converter
60 KVA Static 50Hz/60Hz Frequency Converter
60 KVA Static 50Hz/60Hz Frequency Converter
60 KVA Static 50Hz/60Hz Frequency Converter
60 KVA Static 50Hz/60Hz Frequency Converter
60 KVA Static 50Hz/60Hz Frequency Converter
Free Shipping
60 KVA Static 50Hz/60Hz Frequency Converter
60 KVA Static 50Hz/60Hz Frequency Converter
60 KVA Static 50Hz/60Hz Frequency Converter
60 KVA Static 50Hz/60Hz Frequency Converter
60 KVA Static 50Hz/60Hz Frequency Converter
60 KVA Static 50Hz/60Hz Frequency Converter
60 KVA Static 50Hz/60Hz Frequency Converter
60 KVA Static 50Hz/60Hz Frequency Converter
60 KVA Static 50Hz/60Hz Frequency Converter
0 reviews • Write a review
from Save -9%
$17,904.00
$19,690.00
Ex Tax: $17,904.00
  • Stock: In Stock
  • Model: HZTOHZ-G29
  • Weight: 1.00
  • SKU: HZTOHZ-G29

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1 KVA Frequency Converter 60Hz To 50Hz
Quickview
1 KVA Frequency Converter 60Hz To 50Hz
$1,549.97 $1,799.00
Ex Tax:$1,549.97
Add to Cart Add to Wish List Compare this Product
10 KVA Pure Sine Wave Frequency Converter
Quickview
10 KVA Pure Sine Wave Frequency Converter
$4,676.54 $4,999.00
Ex Tax:$4,676.54
Add to Cart Add to Wish List Compare this Product
10 KVA Three Phase 220V/380V Frequency Converter
Quickview
10 KVA Three Phase 220V/380V Frequency Converter
$5,990.77 $6,499.00
Ex Tax:$5,990.77
Add to Cart Add to Wish List Compare this Product
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
Quickview
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
$27,492.00 $29,890.00
Ex Tax:$27,492.00
Add to Cart Add to Wish List Compare this Product
10kVA 400Hz To 50Hz/60Hz Frequency Converter
Quickview
10kVA 400Hz To 50Hz/60Hz Frequency Converter
$7,166.67 $7,325.82
Ex Tax:$7,166.67
Add to Cart Add to Wish List Compare this Product
15 KVA 60Hz To 50Hz Frequency Converter
Quickview
15 KVA 60Hz To 50Hz Frequency Converter
$5,615.54 $5,990.00
Ex Tax:$5,615.54
Add to Cart Add to Wish List Compare this Product

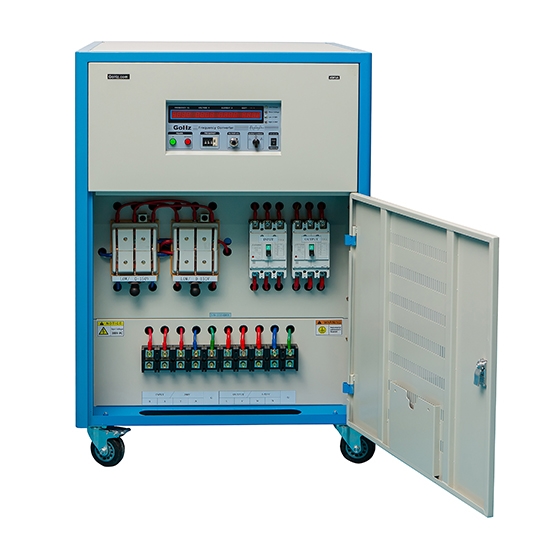

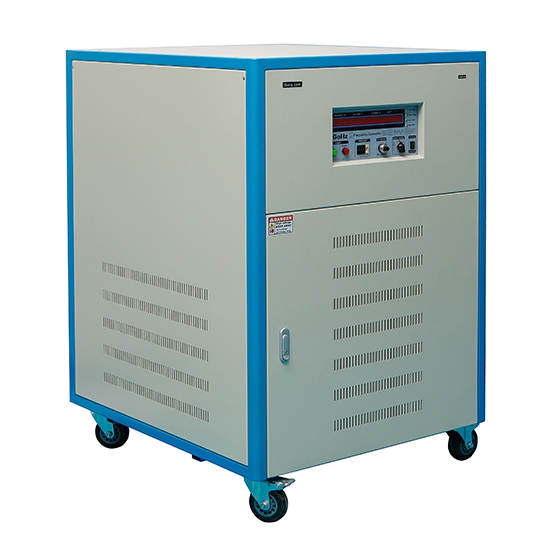

Affordable 60 kVA static frequency converter, easy converting 50Hz to 60Hz, 400Hz with pure sine wave output, compatible with three phase 220V - 240V, 380V, 400V - 480V power system.

Specification

ModelHZ-50-3360
Capacity60 kVA
Dimension900*800*1200 mm
Weight480 kg

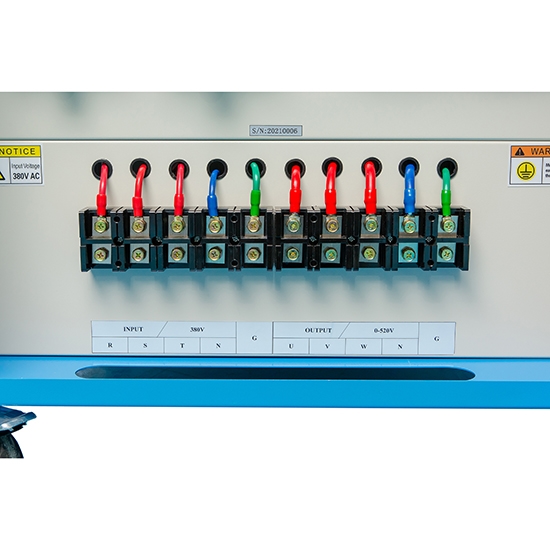

InputVoltage3 Phase 4 Wire: Wye Type 190/110, 200/115, 208/120, 220/128, 230/132, 240/139V ±10% (option *)
3 Phase 4 Wire: Wye Type 380/220, 400/230, 415/240, 440/254, 460/265, 480/277V ± 10% (option *)
3 Phase 4 Wire: Della Type 220, 230, 240, 380, 400, 415, 440V ± 10%
Frequency50 Hz, 60 Hz or 400 Hz ± 5% (option *)
OutputVoltage, current110V Setting (Low grade): 0-150V (phase voltage), 0-260V (line voltage) 166.4A
220V Setting (High grade): 0-300V (phase voltage), 0-520V (line voltage) 83.2A
Load stabilization Rate≤±1%
Frequency50Hz, 60Hz up to 400Hz adjustable
Note:
-When the output is 400Hz, the load capacity can only reach 50% of the rated capacity.
-When the output is ≤120Hz, the load capacity can reach 100% of the rated value.
-You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
Frequency Stability≤±0.01%
Harmonic DistortionPure Sine Wave ≤2%

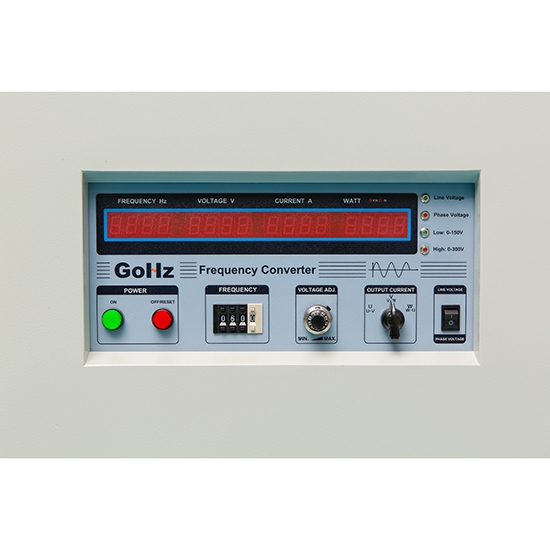

Frequency meter4 digit, digital frequency meter, resolution 0.1Hz/Step
Voltmeter4 digit, digital voltage meter, resolution 0.1V
Ammeter4 digit, digital ammeter, resolution 0.1A
Watt meter4 digit, digital Watt meter, resolution 0.1W
ProtectionWith overload, short circuit, over temperature
Instantaneous power failure protection and alarm device
Working EnvironmentTemperature0 - 40 deg.℃
Humidity0 - 90% (Non condensation)
Warranty18 months

* The input voltage is factory selected.

Tips: Difference of 50Hz and 60Hz power supplies
Power supplies are generated by turbo generators (2P or 4P) or hydro generators (4P or above 4P). Speed of the turbine (Ns) decide the frequency of power supply (Ns = 120*f/P). 50 Hz power supply from 4P generators requires turbine speed of 1500 rpm while 60 Hz power supply from same generators requires turbine speed of 1800 rpm. Actually frequency is proportional to speed of turbine Ns. We can generate any desired frequency by varying Ns (though it is not done). So far as equipment size is concerned there is no visual compactness seen between 50 Hz and 60 Hz equipment, though 60 Hz will be "a bit" smaller than 50 Hz.

For example let us take a 50 Hz motor and use it in 60 Hz. As frequency is increased its speed increase for same load resulting in better cooling, higher back EMF, more stress on bearing. Higher EMF results in lower current drawn from supply so lower copper loss. As a result of increase in frequency iron loss increase. Any damage in motor will be more of mechanical in nature than electrical.
Europe, Asia have 50 Hz power supplies while US has 60 Hz. The difference is the result of technological conflict.
