20 KVA Single Phase Frequency Converter 60Hz To 50Hz

20 KVA Single Phase Frequency Converter 60Hz To 50Hz
20 KVA Single Phase Frequency Converter 60Hz To 50Hz
20 KVA Single Phase Frequency Converter 60Hz To 50Hz
20 KVA Single Phase Frequency Converter 60Hz To 50Hz
20 KVA Single Phase Frequency Converter 60Hz To 50Hz
20 KVA Single Phase Frequency Converter 60Hz To 50Hz
20 KVA Single Phase Frequency Converter 60Hz To 50Hz
Free Shipping
20 KVA Single Phase Frequency Converter 60Hz To 50Hz
20 KVA Single Phase Frequency Converter 60Hz To 50Hz
20 KVA Single Phase Frequency Converter 60Hz To 50Hz
20 KVA Single Phase Frequency Converter 60Hz To 50Hz
20 KVA Single Phase Frequency Converter 60Hz To 50Hz
20 KVA Single Phase Frequency Converter 60Hz To 50Hz
20 KVA Single Phase Frequency Converter 60Hz To 50Hz
20 KVA Single Phase Frequency Converter 60Hz To 50Hz
0 reviews • Write a review
from Save -6%
$6,599.54
$6,990.00
Ex Tax: $6,599.54
  • Stock: In Stock
  • Model: HZTOHZ-G8
  • Weight: 1.00
  • SKU: HZTOHZ-G8

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1 KVA Frequency Converter 60Hz To 50Hz
Quickview
1 KVA Frequency Converter 60Hz To 50Hz
$1,549.97 $1,799.00
Ex Tax:$1,549.97
Add to Cart Add to Wish List Compare this Product
10 KVA Pure Sine Wave Frequency Converter
Quickview
10 KVA Pure Sine Wave Frequency Converter
$4,676.54 $4,999.00
Ex Tax:$4,676.54
Add to Cart Add to Wish List Compare this Product
10 KVA Three Phase 220V/380V Frequency Converter
Quickview
10 KVA Three Phase 220V/380V Frequency Converter
$5,990.77 $6,499.00
Ex Tax:$5,990.77
Add to Cart Add to Wish List Compare this Product
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
Quickview
100 KVA Frequency Converter, 50Hz/60Hz/400Hz
$27,492.00 $29,890.00
Ex Tax:$27,492.00
Add to Cart Add to Wish List Compare this Product
10kVA 400Hz To 50Hz/60Hz Frequency Converter
Quickview
10kVA 400Hz To 50Hz/60Hz Frequency Converter
$7,166.67 $7,325.82
Ex Tax:$7,166.67
Add to Cart Add to Wish List Compare this Product
15 KVA 60Hz To 50Hz Frequency Converter
Quickview
15 KVA 60Hz To 50Hz Frequency Converter
$5,615.54 $5,990.00
Ex Tax:$5,615.54
Add to Cart Add to Wish List Compare this Product

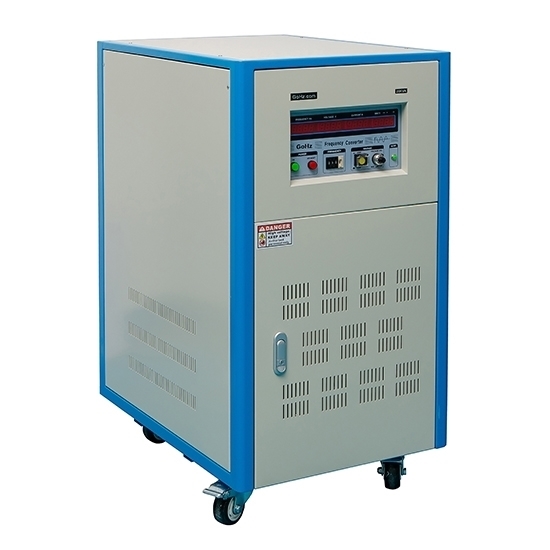

20 kVA single phase AC power frequency converter, easy converting single phase 110V/220V 50Hz/60Hz to expected frequency & voltage, inner step up transformer can boost 110V to 220V easily, also can convert 220V 50Hz to 110V 60Hz, output frequecy up to 400Hz can be used for aircraft.

Specification

ModelHZ-50-1120
Capacity20 kVA
Dimension680*500*970mm
Weight180 kg
InputVoltage1 Phase 2 Wire: 110V/120V, 220V/230V/240V ± 10% (option *)
Frequency50 Hz, 60 Hz or 400 Hz ± 5%
OutputVoltage, current110V Setting (Low grade): 0-150V, 166.4A
220V Setting 0-300V (High grade): 0-300V, 83.2A
Load stabilization Rate≤±1%
Frequency50Hz, 60Hz up to 400Hz adjustable
Note:
-When the output is 400Hz, the load capacity can only reach 50% of the rated capacity.
-When the output is ≤120Hz, the load capacity can reach 100% of the rated value.
-You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
Frequency Stability≤±0.01%
Harmonic DistortionPure Sine Wave ≤2%
Frequency meter4 digit, digital frequency meter, resolution 0.1Hz/Step
Voltmeter4 digit, digital voltage meter, resolution 0.1V
Ammeter4 digit, digital ammeter, resolution 0.1A
Watt meter4 digit, digital Watt meter, resolution 0.1W
ProtectionWith overload, short circuit, over temperature
Instantaneous power failure protection and alarm device
Working EnvironmentTemperature0 - 40 deg.℃
Humidity0 - 90% (Non condensation)
Warranty18 months

* The input voltage is factory selected.

Tips: Where frequency as low as 20 Hz or 10 Hz are used normally?
At 20 Hz and lower they are usually used for mining excavators (rotation). To rotate the higher structure of a mining excavator, it's used two or three motors (that's depends of excavator) runs by variable frequency drives (could be one drive or each motor have a drive and optical fiber communication to coordinate between the drives). The rotation of excavator are in steps and the steps are generally between 10 (15) Hz until 50 (60) Hz (generally there are 5 steps 10-20-30-40-50Hz- but in tests the final/realistic decision its taken).

The operator of excavator work between the second speed (20 Hz) and the penultimate speed (40 Hz) - he can stay in 20 Hz long period if the excavated earth is hard/rough. If not he can run in the 3 or 4 speed. All the speeds are used without problems.

Example for low than 10 Hz frequency: In special situations, the displacement of mining excavators can be done at 5 Hz (or around) but not for a long period. They need to do that in case of skating at the lower normal step/speed (if it's raining a lot the land can be difficult). The displacement could have also 5 speeds similar of rotation as values.
