Solar Wire Connector, Y Branch 3 To 1
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
Solar Wire Connector, Y Branch 3 To 1
from
$11.89
Ex Tax: $11.89
- Stock: In Stock
- Model: HZTOHZ-SC-MCY301
- Weight: 1.00
- SKU: HZTOHZ-SC-MCY301

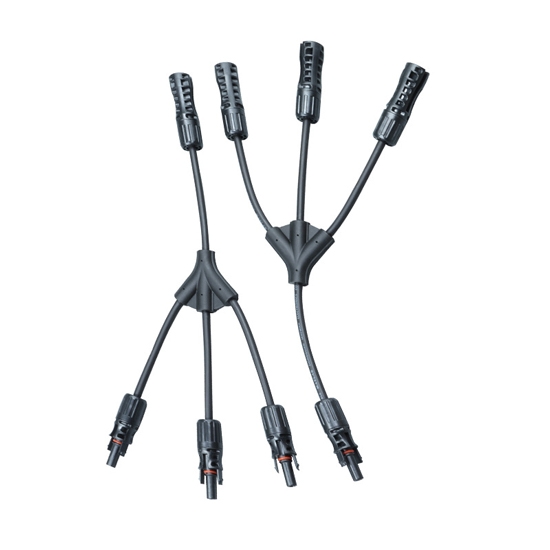

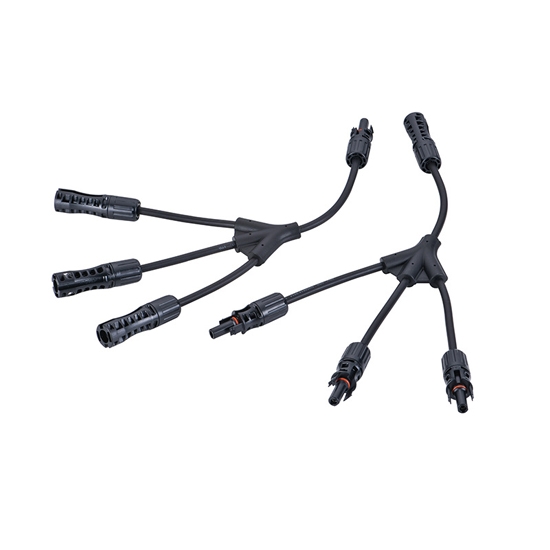

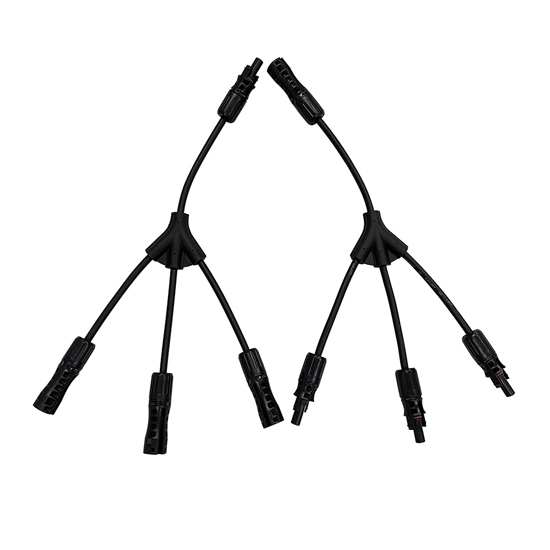

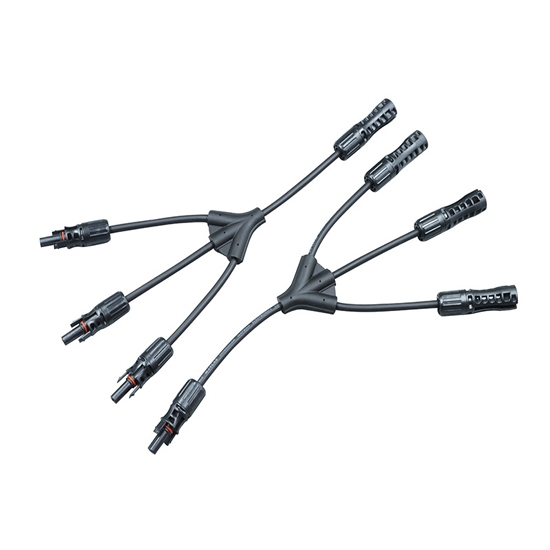

Solar PV wire connector, Y branch 3 to 1 connector waterproof rating reaches IP68. The outer diameter of the wiring (0D) is 3mm-7.5mm. In addition to photovoltaic cables, it is also suitable for electronic wires with small diameters.

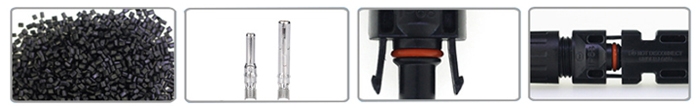

Features
- High-quality PPO material: High-quality materials, radiation resistance, low-temperature resistance, high-temperature resistance, high strength, impact resistance, and flame retardant.
- T2 copper conductor: Copper is tin/silver plated, wear-resistant, corrosion-resistant, and oxidation-proof, with low resistance and strong conductivity.
- High-strength waterproof ring: The product adopts high-strength waterproof ring, insulating silicone, waterproof and dustproof, and protection grade IP68.
- Stable self-locking structure: The joints are connected by compression, and the male and female heads have a self-locking structure.

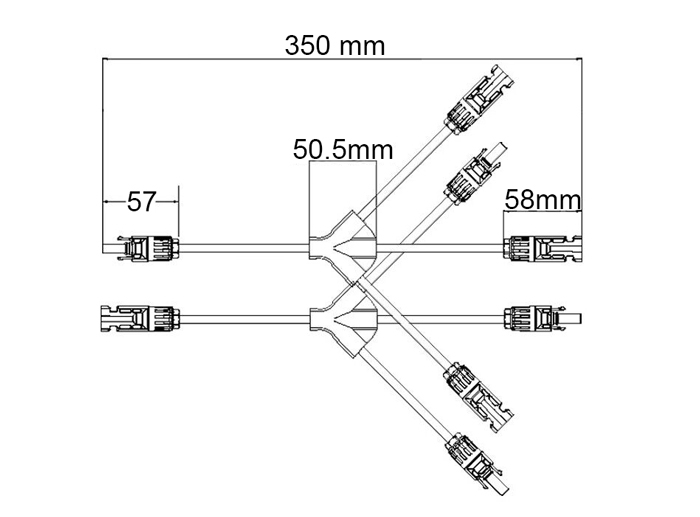

Dimension ( Unit: mm )

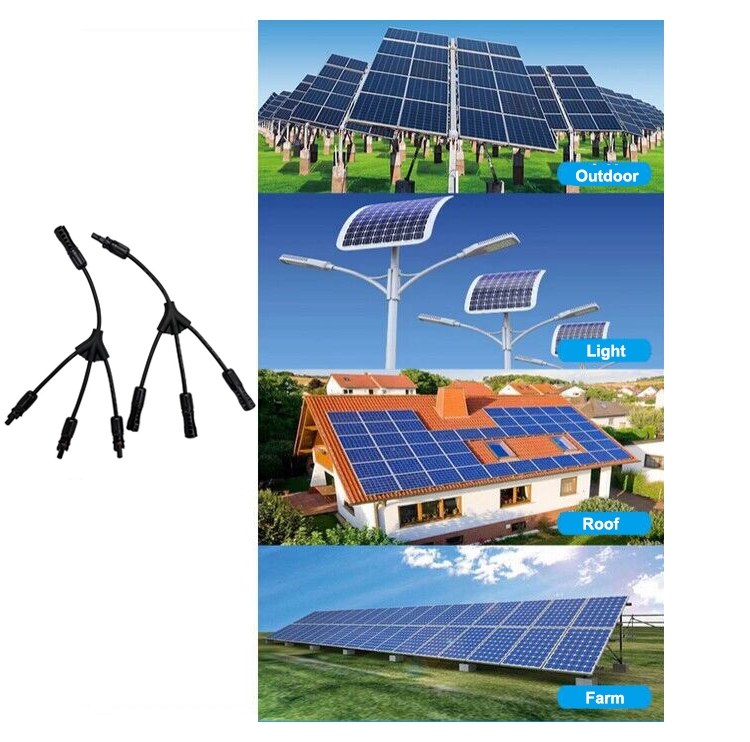

Application
| Model | HZTOHZ-SC-MCY301 |
| Rated Voltage | 1000V |
| Rated Current | 30A |
| Insulation Material | PPO Material |
| Conductor Material | Tinned Copper |
| Ambient Temperature | -40℃～+95℃ |
| Product Temperature | -40℃～+135℃ |
| Safety Grade | DCII |
| Waterproof Grade | IP68 |
| Contact Resistance | ≤0.35mΩ |
| Connection System | Multi-Point Connectivity |
| Self-locking System | Embedded |
| Connection Method | Crimping |
| Wiring Specification | 4mm2/6mm2 |
| Flame Retardant Grade | UL94-VO |
| Net Weight | 182g |
